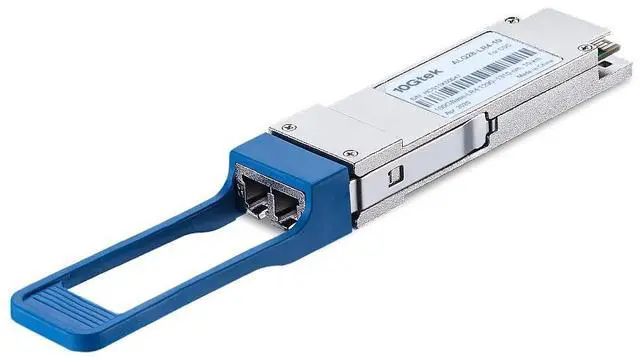

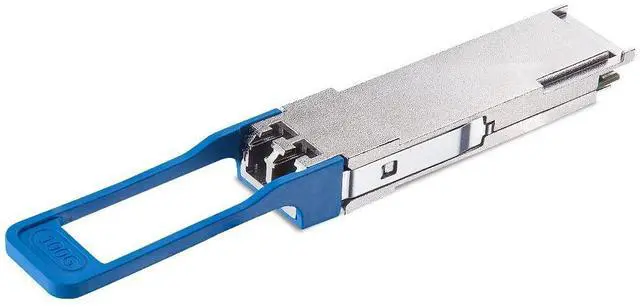

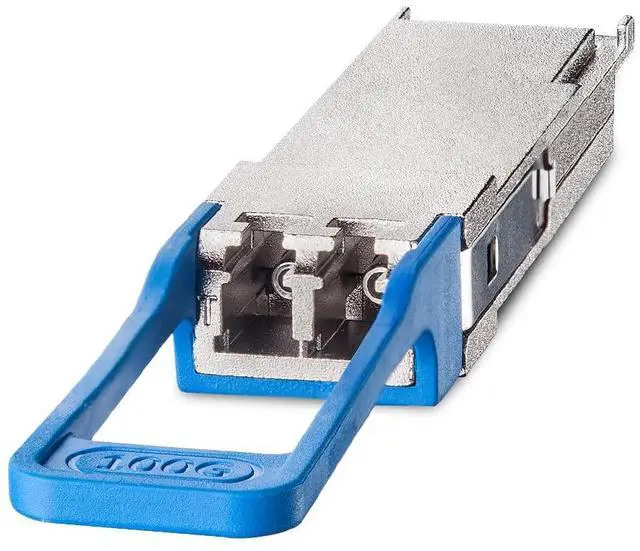

10Gtek QSFP28 100GBASE-LR4 100 Gigabit Duplex LC SingleMode Optical Transceiver Module Compatible with Arista QSFP-100G-LR4, NOT Applicable to Infiniband, 1310nm, SMF, DDM, 10km
- 100GBASE-LR4 QSFP28 to Duplex LC Optical 100G Ethernet transceiver module, Singlemode, 1310nm, DDM, up to 10km. (Note: Not applicable to Infiniband.)
- Compatible with Arista QSFP-100G-LR4 and Other Open Switches.
- Easy installation, plug and play, fully hot-pluggable. Widely used in fiber switches, routers, NIC, server or other fiber optic equipments with 100Gb QSFP28 ports.
- DDM allows you to monitor the critical information concerning the status of the transmitted and received signals of the transceivers in real-time to find out some potential problems.
- 10Gtek is a manufacturer of transceivers, customized service is available.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10Gtek's QSFP28 LR4 is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P 802.3 ba standard. The product is designed with the form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Features:
Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3 ba 100GBase-LR4
Up to 10km reach for G. 652 SMF
Single + 3.3V power supply
Operating case temperature: 0~70ºC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA ( 1295.56, 1300.05, 1304.58, 1309.14 nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant
Applications:
Ethernet 100G
Client-side 100G Telecom connections
Features:
Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3 ba 100GBase-LR4
Up to 10km reach for G. 652 SMF
Single + 3.3V power supply
Operating case temperature: 0~70ºC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA ( 1295.56, 1300.05, 1304.58, 1309.14 nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant
Applications:
Ethernet 100G
Client-side 100G Telecom connections
