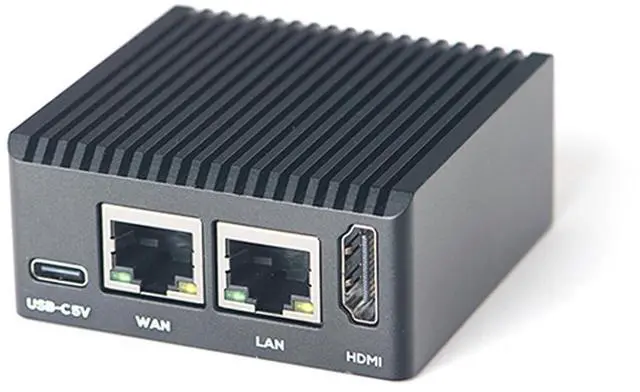

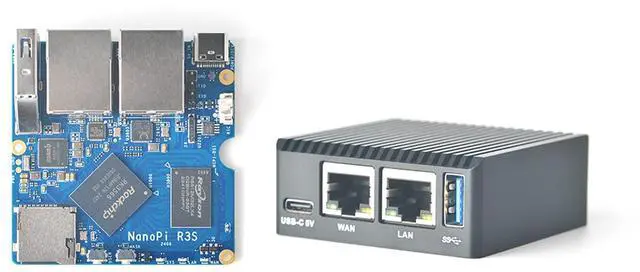

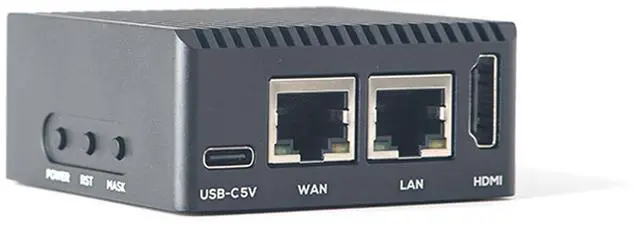

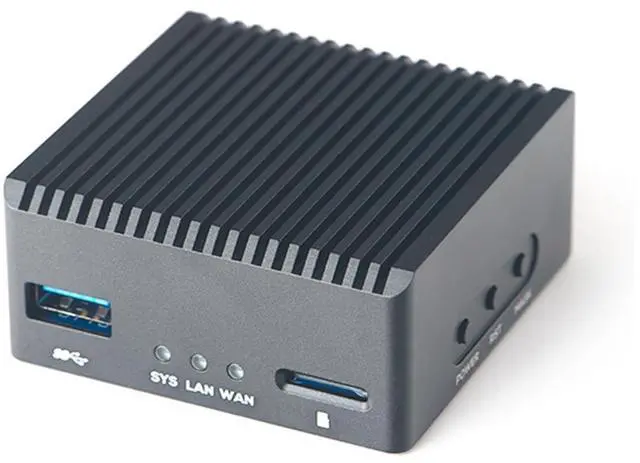

FriendlyElec NanoPi R3S Mini Router OpenWRT, 2GB LPDDR4X RAM 32GB eMMC, with Dual-Gbps Ethernet for Smart Home Office Gateway IoT NAS Applications, Support Debian Ubuntu OS (2+0GB with Metal Case)
- IoT Development Platform: The NanoPi R3S LTS mini router is an open source platform smart gateway with dual-Gbps Ethernet ports designed for IoT applications.It alsoi can work with Docker Applications.
- Rockchip RK3566 SoC: The NanoPi R3S LTS mini wifi router uses Rockchip RK3566 SoC (Quad-core Cortex-A55) with 2G LPDDR4X RAM, 0GB/32GB eMMC, FriendlyElec ported an OpenWrt system for it.support USB WiFi Module Adapter, check USB WiFi Device with Command Line Utility, Configure a USB WiFi Device as AP.
- Peripheral Interface: 1x Native Gigabit Ethernet, 1x PCIe Gigabit Ethernet, 1x USB3.0 Type-A, 1x MicroSD Slot, 1x Debug Serial PortDisplay: 1x MIPI-DSI 30-Pin FPC connector, 1x USB-C 5V/2A inputSize62x62x25mm.
- Support NAS Applications: The NanoPi R3S LTS mini wifi router can be optionally equipped with an integrated CNC anodized aluminum case and a 2-inch LCD screen for status monitoring. It is a good platform for developing IoT applications, NAS applications etc.
- O
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

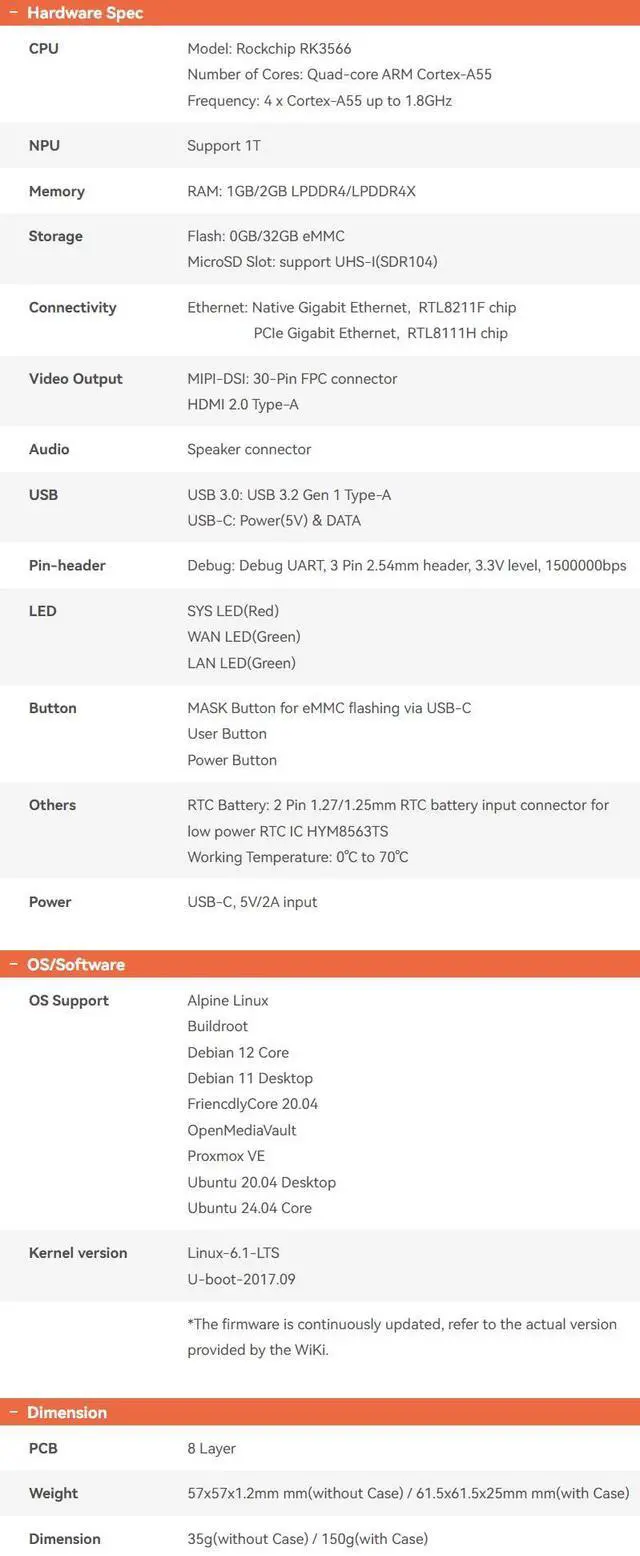

--Hardware
Spec-- CPU: Rockchip RK3566, Quad-core
Cortex-A55 RAM: 2GB
LPDDR4X Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet USB 3.0
Host: Type-A x1
Storage: MicroSD Slot x 1, and on-board 32GB eMMC
Debug Serial Port: 3.3V TTL, 3-pin 2.54 mm pitch connector, 1500000 bauds
LED: LED x 3
RTC: One low-power RTC, support backup battery input
Buttons: 1x User BUtton, 1x MASK button for eMMC flashing via
USB-C Display: 1x MIPI-DSI 30-Pin FPC connector
PCB Size: 57*57* 1.2 mm
Power supply: USB-C 5V/2A input
Temperature measuring range: 0 to 80 OS/Software: U-bootUbuntu-CoreDebian-CoreOpenMediaVault, OpenWrt
-Package Content-
1x Nanopi R3S Mini Router
-Technical Support-
Please click "WayPonDEV" and ask a question or monica#smartfire. cn (f----@) skype: monica_9122
Please leave the message in our forum by forum. youyeetoo. com/
Spec-- CPU: Rockchip RK3566, Quad-core
Cortex-A55 RAM: 2GB
LPDDR4X Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet USB 3.0
Host: Type-A x1
Storage: MicroSD Slot x 1, and on-board 32GB eMMC
Debug Serial Port: 3.3V TTL, 3-pin 2.54 mm pitch connector, 1500000 bauds
LED: LED x 3
RTC: One low-power RTC, support backup battery input
Buttons: 1x User BUtton, 1x MASK button for eMMC flashing via
USB-C Display: 1x MIPI-DSI 30-Pin FPC connector
PCB Size: 57*57* 1.2 mm
Power supply: USB-C 5V/2A input
Temperature measuring range: 0 to 80 OS/Software: U-bootUbuntu-CoreDebian-CoreOpenMediaVault, OpenWrt
-Package Content-
1x Nanopi R3S Mini Router
-Technical Support-
Please click "WayPonDEV" and ask a question or monica#smartfire. cn (f----@) skype: monica_9122
Please leave the message in our forum by forum. youyeetoo. com/
