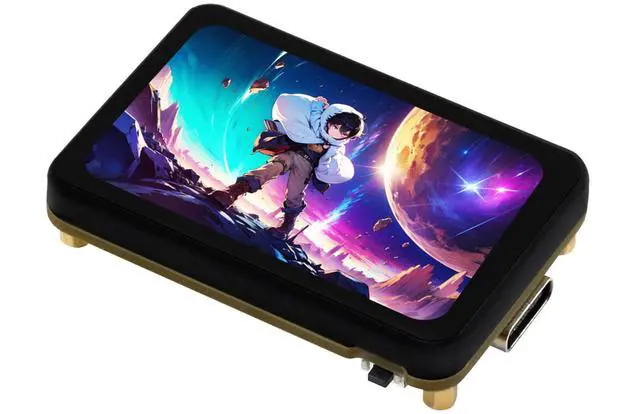

ESP32-S3 1.64inch AMOLED Touch Display Development Board, 280x456, QSPI Interface, Onboard Accelerometer and Gyroscope Sensor and Other Interfaces, ESP32 with Display

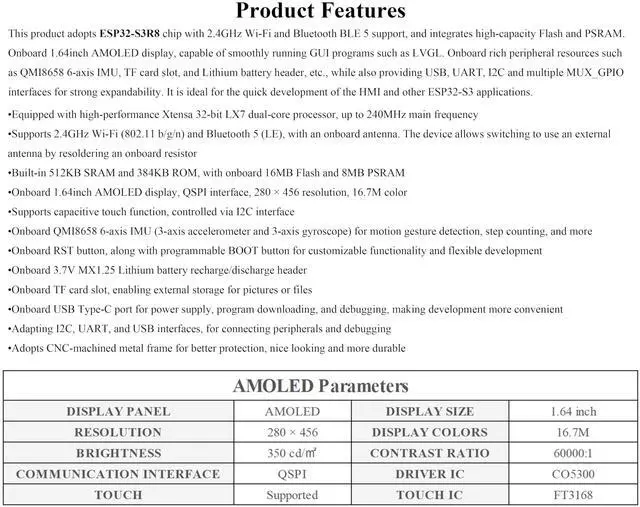

- ESP32-S3 Development Board with1.64inch AMOLED Touch Display. Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.

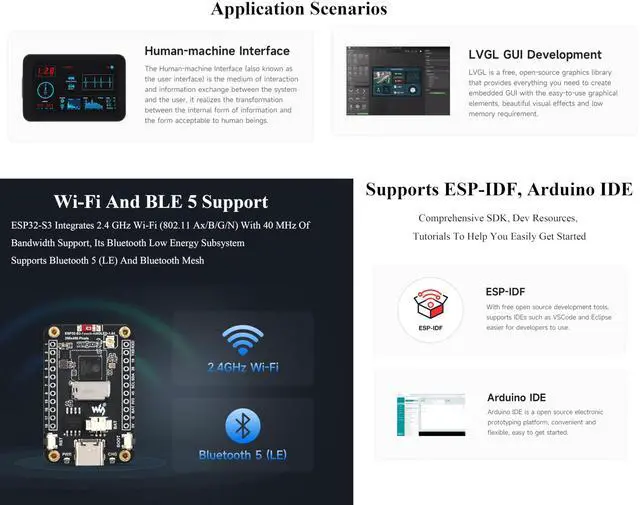

- Supports 2.4GHz W--i-Fi (802.11 b/g/n) and Blue-tooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
- Onboard 1.64inch AMOLED display, QSPI interface, 280 x 456 resolution, 16.7M color. 178° wide viewing angle. The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Onboard RST button, along with pr
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-S3 1.64 inch AMOLED Touch Display Development Board, 280x456, QSPI Interface, Onboard Accelerometer and Gyroscope Sensor and Other Interfaces, ESP32 with Display
