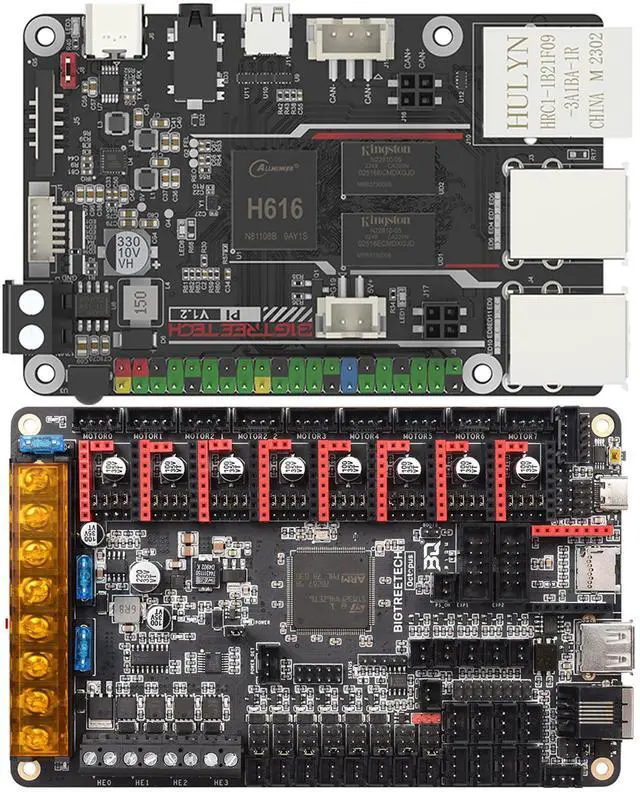

BIGTREETECH Pi + Octopus V1.1 Control Board Kit Support Run Klipper Firmware

BIGTREETECH Pi is equipped with quad core 64 bit ARM Cortex-A53 @ 1.5GHz processor, 1GB DDR3 memory chip, with powerful performance.

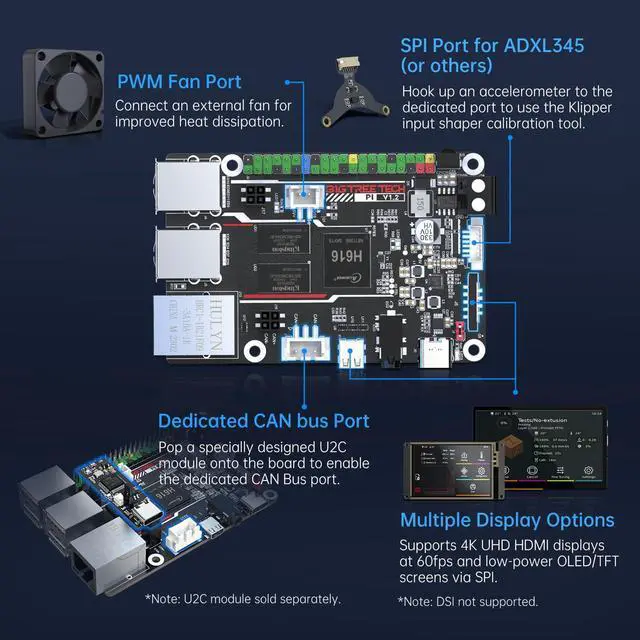

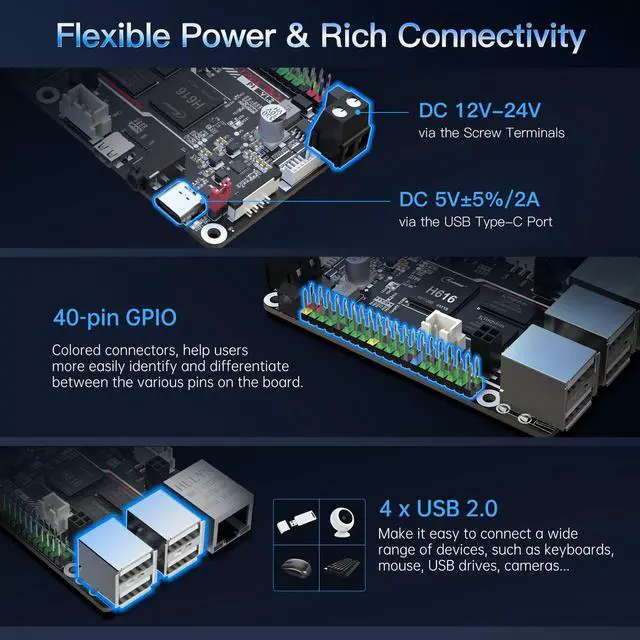

The BTT Pi core board reserves HDMI2.0A display interface to support 4K display; onboard 4-way USB2.0 port; 40-pin GPIO; 3.5mm audio interface.

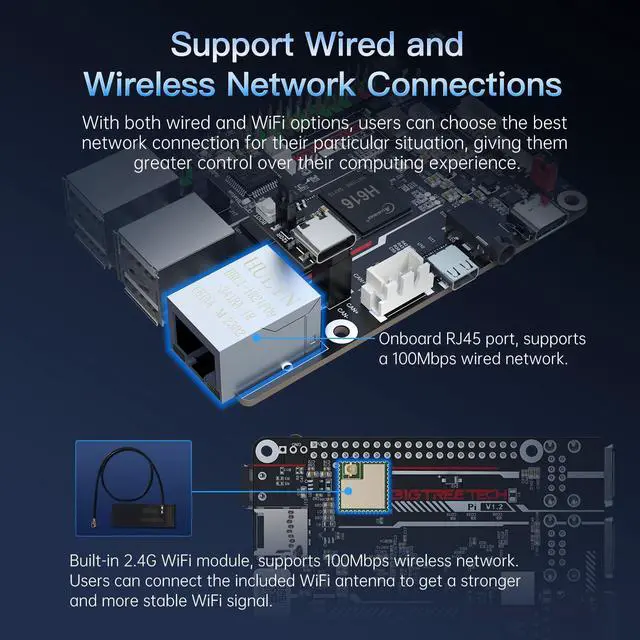

BIGTREETECH Pi has onboard 100M Ethernet interface and supports WIFI transmission. The GPU of BIGTREETECH Pi V1.2 is Mali G31 MP2, which supports OpenGL3.2.
BIGTREETECH Octopus V1.1 motherboard supports up to 8 stepper drivers with 9 stepper driver outputs in total; And up to 6 PWM fans and 2 always-on fans with the ability to individually select the voltage rail that will drive each fan. Select from Vin, 12V or 5V.

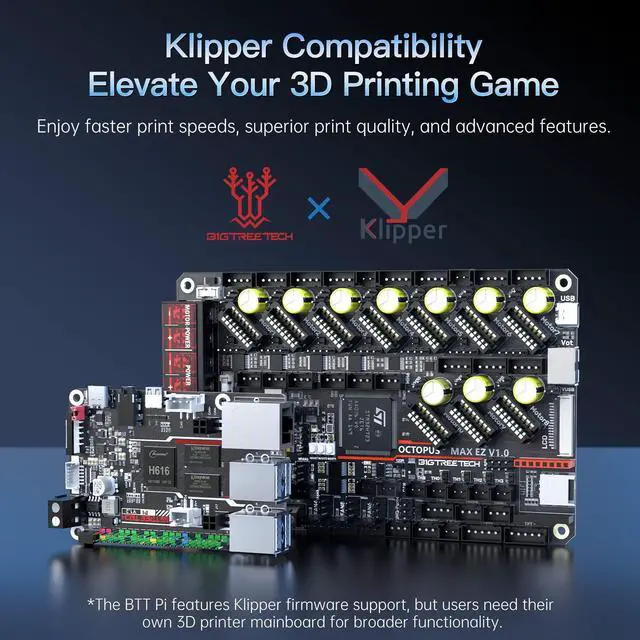

Octopus V1.1 Silent Board Interfaces with a Raspberry Pi using emulated serial over USB or direct UART to any of the serial ports on the board, to realize Klipper Firmware and Raspberry Pi Online Printing.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

BIGTREETECH Pi + Octopus V 1.1 Control Board Kit Support Run Klipper Firmware

Additional Information
First Listed on Newegg	October 27, 2025

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
