$359.99
Most customers receive within 5-9 days.
Meet Your Seller

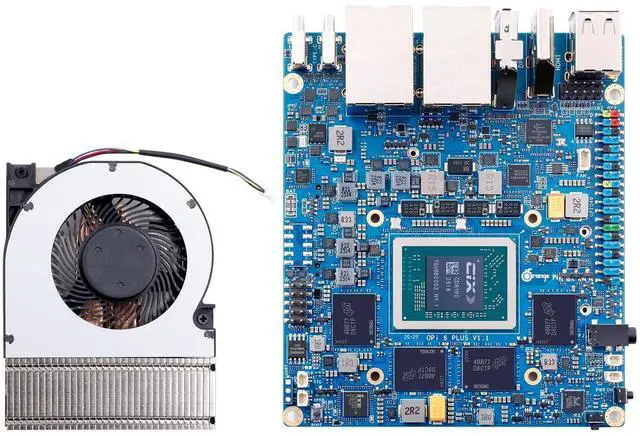

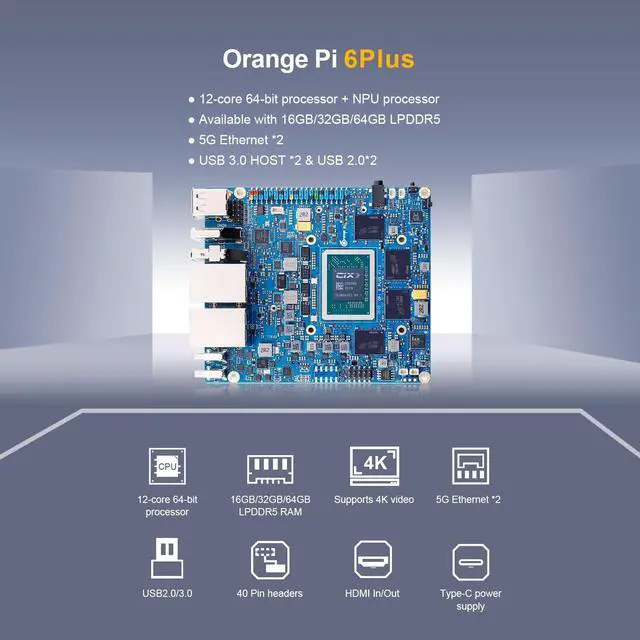

Orange Pi 6 Plus 16GB/32GB LPDDR5 CIX CD8180/CD8160 12-Core Single Board Computer with Active Cooling System, Support 45 Tops AI Computing Power, Mini PC Run Ubuntu/Debian/Android/Windows/ROS2 (16GB)
- [12-Core High-Performance Processor]: Powered by the CIX CD8180/CD8160 SoC, the Orange Pi 6 Plus features a 12-core 64-bit CPU with an integrated NPU and GPU. With up to 45 TOPS of combined AI computing power, it supports large-scale on-device AI models, 3D rendering, and industrial-grade applications.
- [High-Speed LPDDR5 & Dual NVMe Support]: Equipped with 16GB/32GB/64GB LPDDR5 memory, SPI Flash, and TF card slots. Dual M.2 M-Key 2280 interfaces allow NVMe SSD expansion for fast read/write speeds and large-capacity storage. Ideal for demanding AI, data, and multimedia tasks.
- [Rich Connectivity Options]: Features USB 3.0, USB 2.0, HDMI, 5G Ethernet, MIPI camera interface, 40Pin GPIO, Type-C power input, and fan connectorsupporting seamless integration with peripherals for flexible and powerful system development.
- [Versatile Applications]: Designed for a wide range of use cases including smart offices, edge AI computing, industrial automation, smart security, retail systems,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware ParametersCPU: 12-core
64-bit processorNPU: 28.8T
opsGPU: Integrated graphics processorCombined
Computing Power:
45TOPSCPU+NPU+GPURAM: LPDDR 5: 128 -bit x 32; 16GB/32GB /64GBStorage
Expansion: SPI
FLASH: 64Mbit NVME SSD (PCIe 4 laneM. 2 KEY-M interface 2280) *2 TF slotWi-Fi
Module: M.
2 KEY-E socketPCIE Ethernet: 5G
Ethernet*2USB: USB 3.0 HOST *2 USB 2.0 *2 Reserved USB 2.0 9-pin socket USB full-function Type-C 3.0
HOST*2Camera Interface: 2*4-lane MIPI CSI camera interfaceDisplay
Interface: 1*DP 1.4 4K@120HZ 2*TYPE-C DP 1*HDMI 1.4 4K@60HZ 1*eDP 4K@60HZAudio: 3.5 mm headphone jack audio input/output, speakers*2, analog MIC*1TYPE-C Port
Power Supply: Type-C PD 20V IN*2, standard 100WExpansion
Interface: 40-pin function expansion interface, supporting
the following interface types: GPIO, UART, I2C, SPI, PWM
Indicator Light: Power-on indicator, system indicator, battery
charging indicatorButton: 1* Power button, 1* BOOT button, 1* RESET buttonFan
Interface: 1* Fan connector with PWM controlReserved
Interface: Board-to-board battery connector; 2-pin RTC connectorPower
Adapter: Type-C PD 20V input, standard 100WOperating
System: Debian, Ubuntu, Android, Windows, ROS2Appearance
Dimensions:
115*100mmWeigh: 132g
64-bit processorNPU: 28.8T
opsGPU: Integrated graphics processorCombined
Computing Power:
45TOPSCPU+NPU+GPURAM: LPDDR 5: 128 -bit x 32; 16GB/32GB /64GBStorage
Expansion: SPI
FLASH: 64Mbit NVME SSD (PCIe 4 laneM. 2 KEY-M interface 2280) *2 TF slotWi-Fi
Module: M.
2 KEY-E socketPCIE Ethernet: 5G
Ethernet*2USB: USB 3.0 HOST *2 USB 2.0 *2 Reserved USB 2.0 9-pin socket USB full-function Type-C 3.0
HOST*2Camera Interface: 2*4-lane MIPI CSI camera interfaceDisplay
Interface: 1*DP 1.4 4K@120HZ 2*TYPE-C DP 1*HDMI 1.4 4K@60HZ 1*eDP 4K@60HZAudio: 3.5 mm headphone jack audio input/output, speakers*2, analog MIC*1TYPE-C Port
Power Supply: Type-C PD 20V IN*2, standard 100WExpansion
Interface: 40-pin function expansion interface, supporting
the following interface types: GPIO, UART, I2C, SPI, PWM
Indicator Light: Power-on indicator, system indicator, battery
charging indicatorButton: 1* Power button, 1* BOOT button, 1* RESET buttonFan
Interface: 1* Fan connector with PWM controlReserved
Interface: Board-to-board battery connector; 2-pin RTC connectorPower
Adapter: Type-C PD 20V input, standard 100WOperating
System: Debian, Ubuntu, Android, Windows, ROS2Appearance
Dimensions:
115*100mmWeigh: 132g
