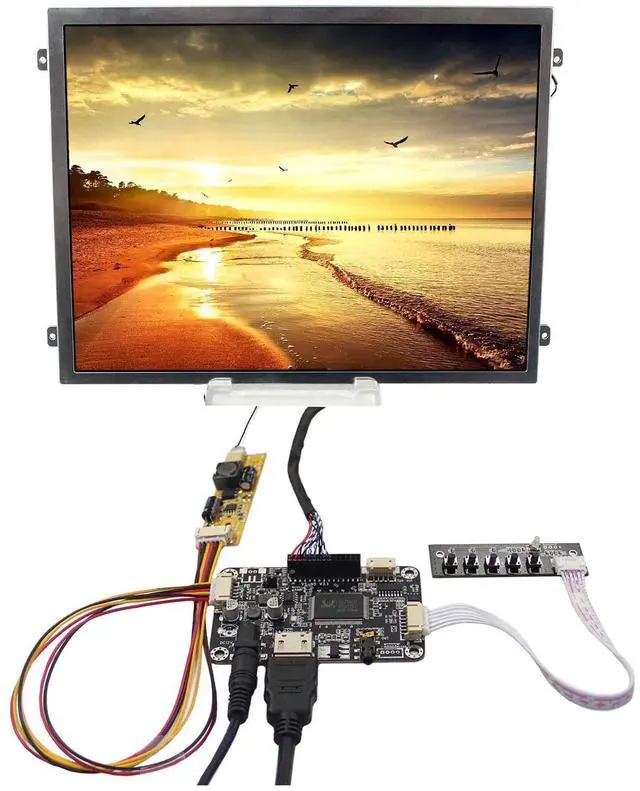

VSDISPLAY 10.4" 10.4 Inch 1024X768 500nit IPS LCD Display VS104T-003A with Audio LCD Controller Board
- 10.4" VS104T-003A 1024X768 LCD Screen:Resolution 1024(RGB)768 Outline Size 225.8 174.35.6(HVD) Display Area 211.2 158.48 (HV) Brightness 500 cd/m2 (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins.
- Audio LCD Board Work for LVDS Interface LCD Screen
- Video Input: Audio Input: Audio Output: Speaker earphone
- Recommend Power Adapter Spec. Input Power Adapter: 12Vdc More than 2A.

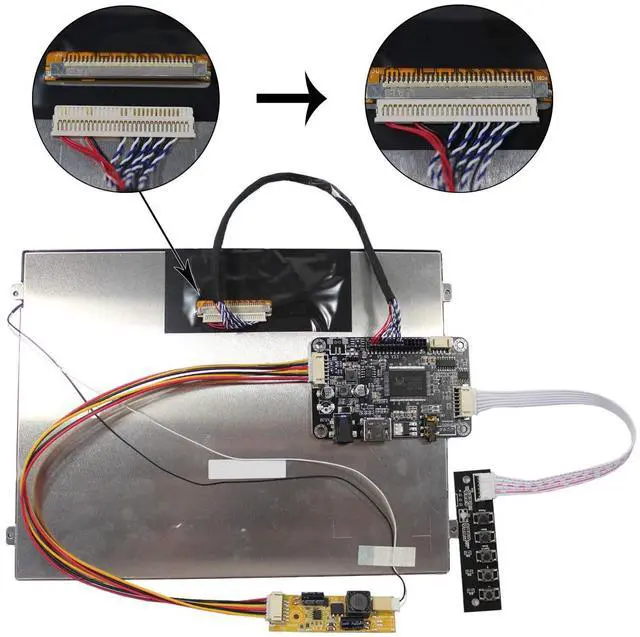

- Packing list: 1 Audio LCD Controller Board 1 10.4inch VS140T-003A 1024x768 IPS LCD Screen 1 LVDS Cable 1 Inveter Board 1 Keyboard With Cable (Please Notice There is No Power Adapter in The Packing List.)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

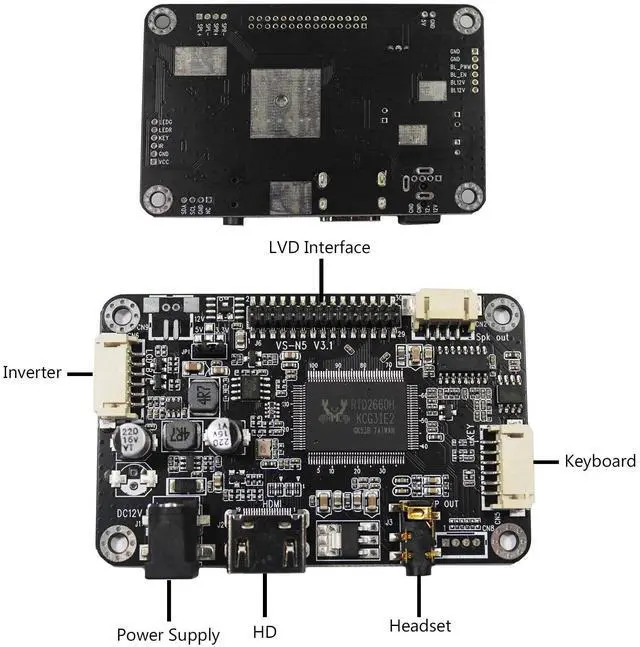

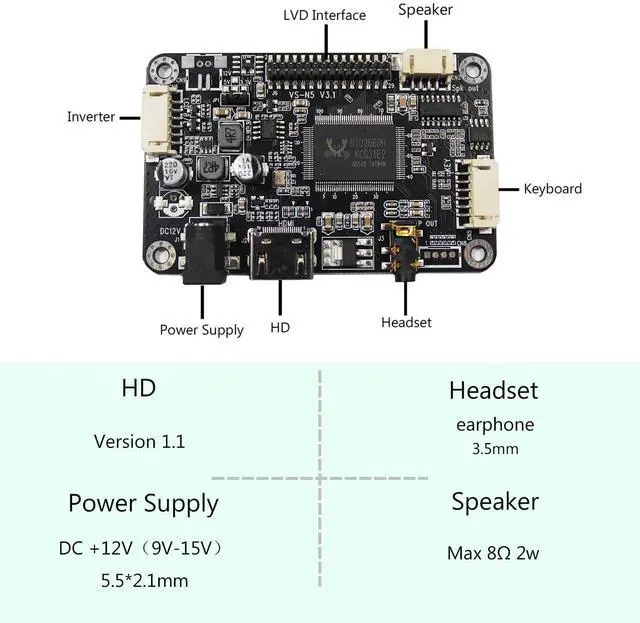

LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker

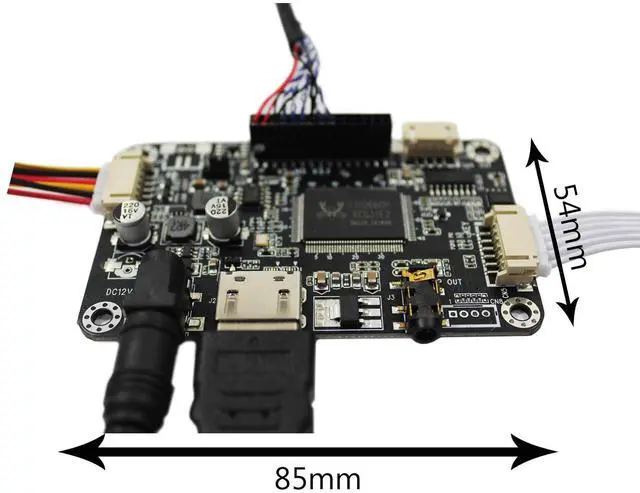

earphoneOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 85mm x 54mm x 14mm 10.4" VS104T-003A 1024X768
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 225.8 174.35. 6 (HVD) mmDisplay Area 211.2 158.48 (HV) mmBrightness 500 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6/8-bit), Connector, 30 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board1 10.4 inch VS140T-003A 1024x768 IPS LCD Screen1 LVDS Cable1 Inveter Board1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker
earphoneOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 85mm x 54mm x 14mm 10.4" VS104T-003A 1024X768
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 225.8 174.35. 6 (HVD) mmDisplay Area 211.2 158.48 (HV) mmBrightness 500 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6/8-bit), Connector, 30 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board1 10.4 inch VS140T-003A 1024x768 IPS LCD Screen1 LVDS Cable1 Inveter Board1 Keyboard With Cable
