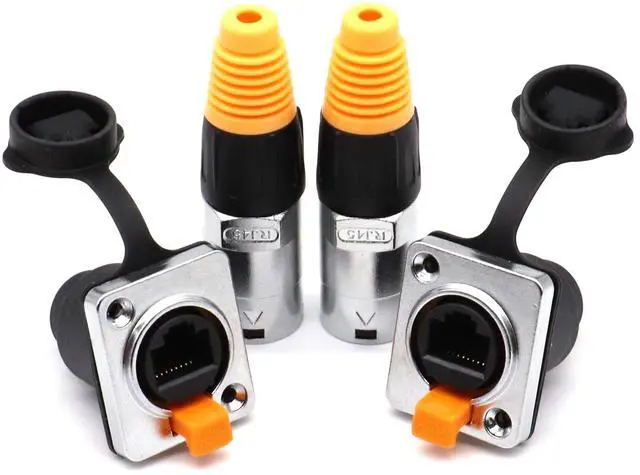

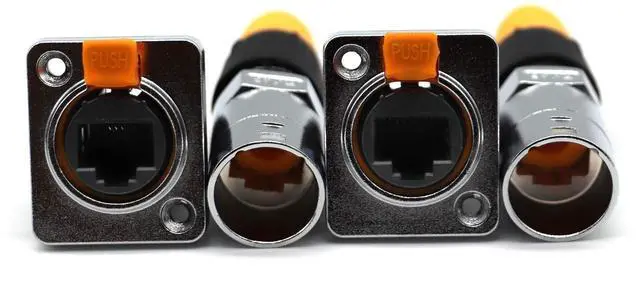

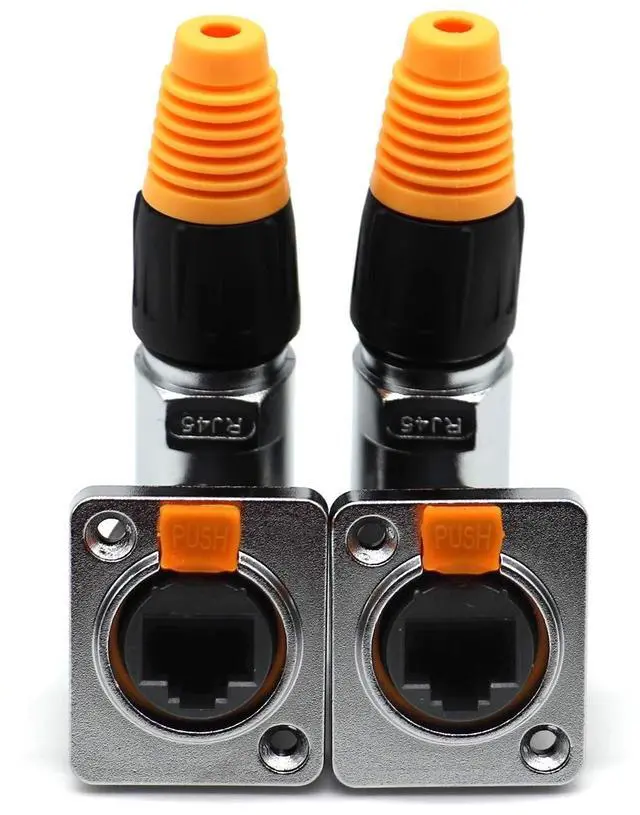

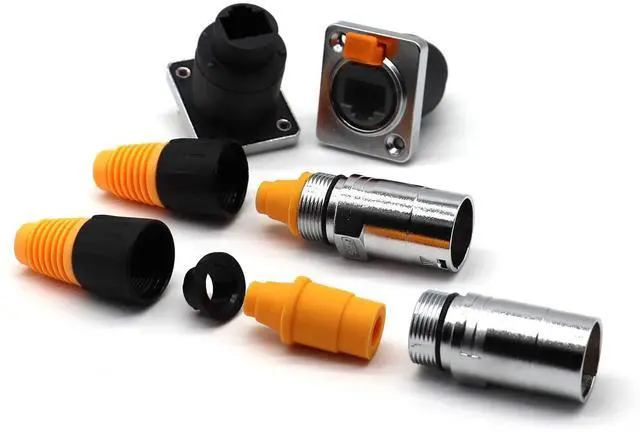

LOCHSOEL RJ45 Interface Waterproof sockets Connector,Right Angle Panel Mounting Shielded IP65 Waterproof PCB Signal Panel Cat5/5e/6 8P8C Ethernet LAN Cable Connector(2 Set/4 Pack)
- Be compatible with standard 8P8C RJ45 plug,Be equipped with a waterproof connector, which protects connector from external harm
- High frequency noise immunity and electromagnetic interference protection. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
- Using super five RJ45, the transmission speed can reach 10GBIT/S. The cable protector has a solid die-cast housing and a unique ferrule clamp. Waterproof design, the product reaches IP65 protection level when assembled
- The product is made of high-performance engineering plastics and zinc alloy. The copper pin uses a solid brass terminal with a gold-plated surface. Adapt to various harsh environments, acid, alkali, oxidation, etc. Ensure the stability of current and meet RoHS requirements
- Push-pull design, safety lock system. No soldering, no installation tools, just plug the standard crystal head directly for quick installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This RJ45 network signal connector connector is a Female/Female Couple2Set). Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. The rugged connection system provides a solution for broadband data transmission in harsh environments. Especially these connectors can apply for industrial ethernet in audio, business, amusement, live stage action, DMX lighting, industrial and outdoor in network environments.
mode: Plug/UnplugINGRESS
PROTECTION: IP65with
Waterproof/Dust CapWithstanding voltage: 1000VCurrent
Rating (A): 1.2AR
ated voltage: 42VContact
resistance: 40mCrystal head to
RJ45 network portInsulation resistance:
500mColor: Silver+OrangeProduction
process art: punching + machiningShell, insulating
parts: High-performance engineering plasticsMaterial of copper needles: Copper
alloy(gold-plated)+Zinc alloySealing: Silica gelConnect
Port: RJ45Cable
Core:
8Pins: 8P8CCable
Specification: 0.15 mm2 ~ 0.2 mm2 /26~24AWG
Diameter Range: 5.5 mm ~7mm
Working Temperature: -25C-85CMounting
holes: diameter
4mmMechanical life: 500
timesPackage: 2x PCB Signal Panel Right angle RJ45 Connector2xRound Waterproof
RJ45 ConnectorAfter-sales service: Each product is tested to ensure that there is no short circuit before shipment and there is no potential breakdown problem. If the item you received is defective, please contact us by email, we will reply you within 48 hours to solve the problemNote: The color of the dust cap is sent randomly, orange or black, please do not buy if you mind, thank you for your understanding
Specifications
: Connectingmode: Plug/UnplugINGRESS
PROTECTION: IP65with
Waterproof/Dust CapWithstanding voltage: 1000VCurrent
Rating (A): 1.2AR
ated voltage: 42VContact
resistance: 40mCrystal head to
RJ45 network portInsulation resistance:
500mColor: Silver+OrangeProduction
process art: punching + machiningShell, insulating
parts: High-performance engineering plasticsMaterial of copper needles: Copper
alloy(gold-plated)+Zinc alloySealing: Silica gelConnect
Port: RJ45Cable
Core:
8Pins: 8P8CCable
Specification: 0.15 mm2 ~ 0.2 mm2 /26~24AWG
Diameter Range: 5.5 mm ~7mm
Working Temperature: -25C-85CMounting
holes: diameter
4mmMechanical life: 500
timesPackage: 2x PCB Signal Panel Right angle RJ45 Connector2xRound Waterproof
RJ45 ConnectorAfter-sales service: Each product is tested to ensure that there is no short circuit before shipment and there is no potential breakdown problem. If the item you received is defective, please contact us by email, we will reply you within 48 hours to solve the problemNote: The color of the dust cap is sent randomly, orange or black, please do not buy if you mind, thank you for your understanding
