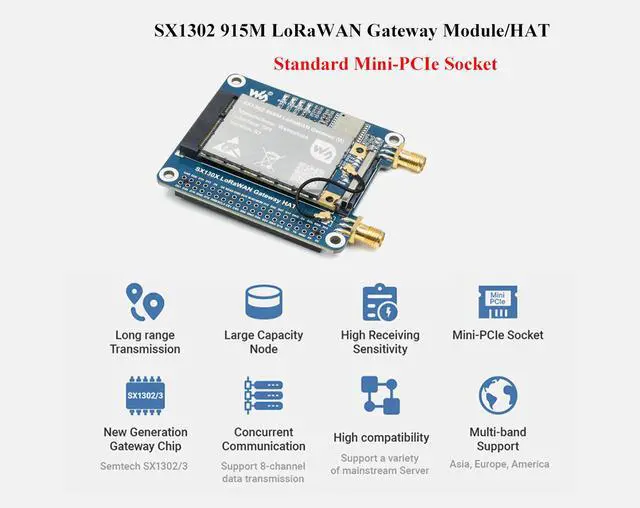

SX1302 915M LoRaWAN Gateway HAT Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico 2, Mini-PCIE Socket, Long Range Transmission, Large Capacity

OverviewIt is a LoRa Gateway module that incorporates a new-generation SX1302 normal band chip. It has lots of advantages including long-range transmission, large capacity node, and high receiving sensitivity. Due to the outstanding performance of SX1302 on low power consumption, the heat dissipation design of the Gateway can be simplified, thus reducing material cost, also achieving a smaller size. Features1. Standard Pi 40PIN GPIO extension header, Compatible with Raspberry Pi series boards2. Incorporate L76K module with GPS/BD support, provide accurate clock and location info for gateway module3.

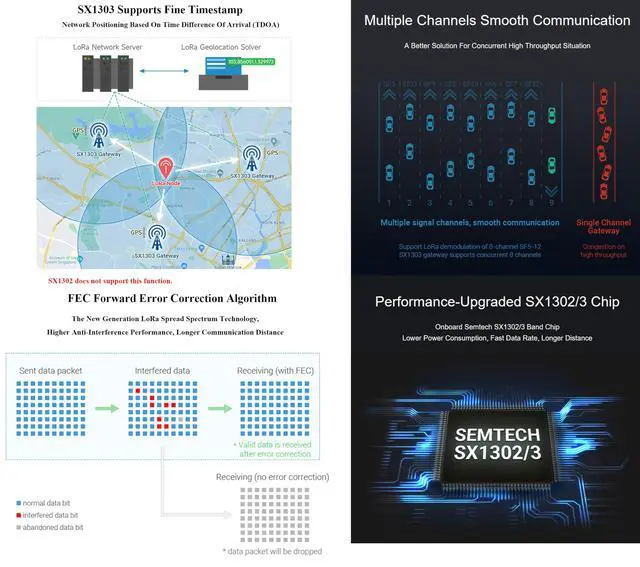

Integrates Semtech SX1302 normal band and SX1250 radio RF frond-end chip. 4. Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain. 5. 52-pin Mini-PCIe socket for easy integration into various embedded systems. Onboard 4 LED indicators for module operating status. 6. Multiple channels smooth communication---a better solution for concurrent high throughput situation7. FEC Forward Error Correction algorithm---the new generation LoRa spread spectrum technology, higher anti-interference performance, longer communication distanceProvide Online Development Resources /User
Manual: bit.
ly/48gamnaSpecificationsPower supply:
5VModulation: LoRa/ (G) FSK
Emit power: +26dBm@5VReceiving
sensitivity: -141dBm@125KHz/SF12
-121dBm@125KHz/SF5Overall power consumptionemitting:
454mA@5Vreceiving:
42mA@5Vsleep: 11mA@5VCommunication
bus: SPI, I2CExternal
connector: Mini-PCIeOperating
temperature:

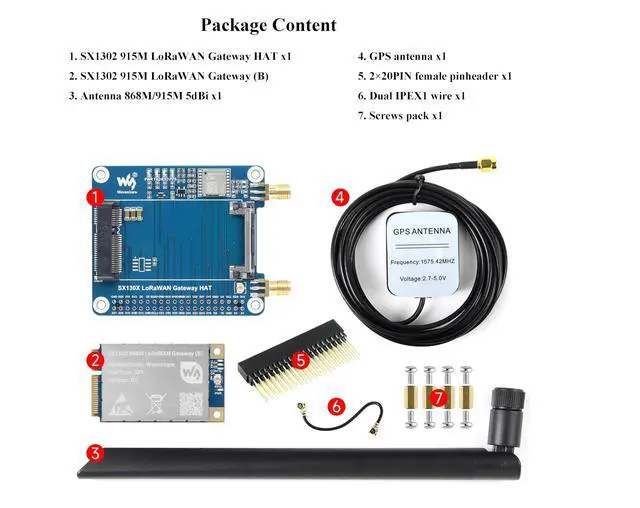

-40~85Dimensions: 50.95 x 30mmPackage ContentSX1302 915M LoRaWAN Gateway HAT x1SX1302 915M LoRaWAN Gateway (B) Antenna 868M/915M 5dBi x1GPS antenna x1220PIN female pinheader x1Dual IPEX1 wire x1Screws pack x1
