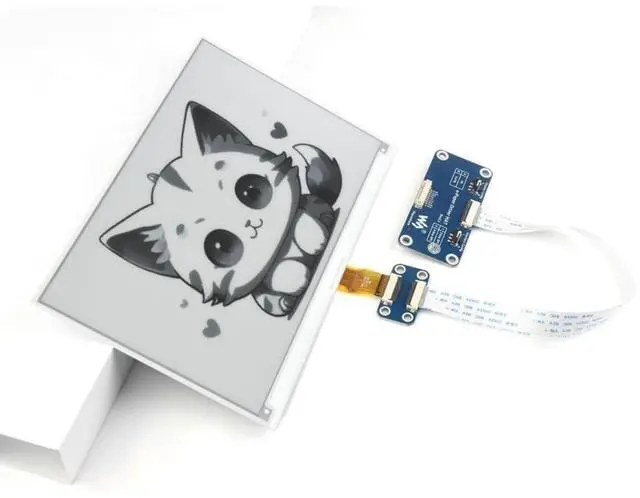

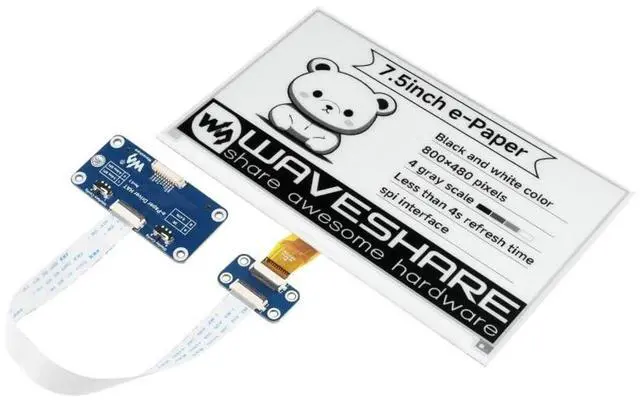

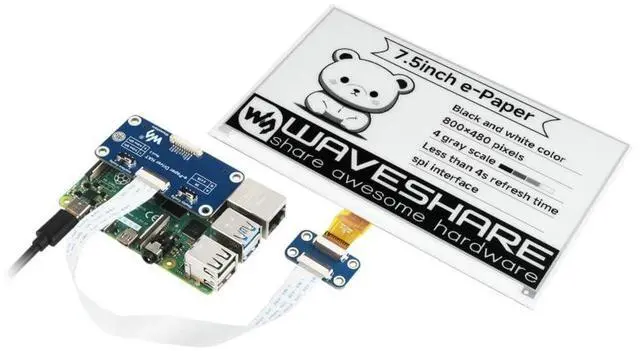

7.5inch E-Ink Display HAT for Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH 800480 Resolution SPI Interface

7.5" e-Paper HATlow power consumption, wide viewing angle, paper-like displaying without electricityFeatures at a glance: No backlight, keeps displaying last content for a long time even when power downUltra low power consumption, basically power is only required for refreshingStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano, RDK X3SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32, etc. nboard voltage translator, compatible with 3.3V / 5V MCUsComes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32)Advantages of
EINK: E-paper display utilizes microcapsule electrophoretic technology for displaying, the
principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 viewing angle. It is usually used as e-reader due to its paper-like effect.
Onboard SPI control interface: for use with other controller boards like
Raspberry Pi/Jetson Nano/STM32/ArduinoVCC: 3.3V
/5VGND:
GroundDIN: SPI
MOSI pinCLK: SPI
SCK pinCS: SPI chip selection, low
activeDC: Data / Command selection (high for data, low
for command)RST: External reset, low
activeBUSY: Busy
status outputPWR: Power
on/off controlSpecifications: Operating
voltage: 3.3V
/5VDisplay color: black, whiteInterface: 3-wire SPI, 4-wire SPI
Grey scale: 4
outlineDimensions: 170.2
111.2 mmFull refresh time: 4sDisplay
size: 163.2 97.92 mmFast
Refresh time: 1.5 sDot
Pitch: 0.205
0.204 mmPartial refresh time: 0.4
sViewing angle>1704Grey refresh time: 2.1
sResolution: 800
480 pixelsRefresh power: 26.4 mW(typ. )Standby current< 0.01 uA (almost none)
Packing List: 7.5 inch e-Paper x1e-Paper Driver HAT x1RPi screws pack (2pcs) x1GH 1.25 9PIN cable ~20cm x1
