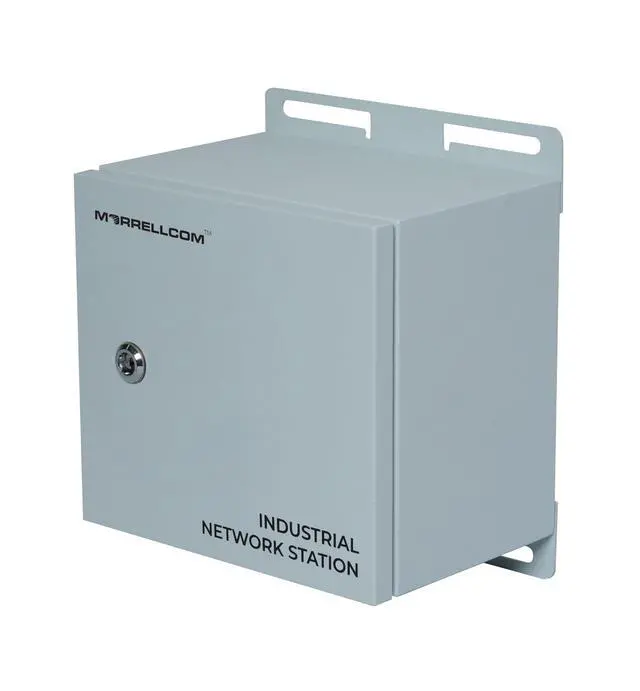

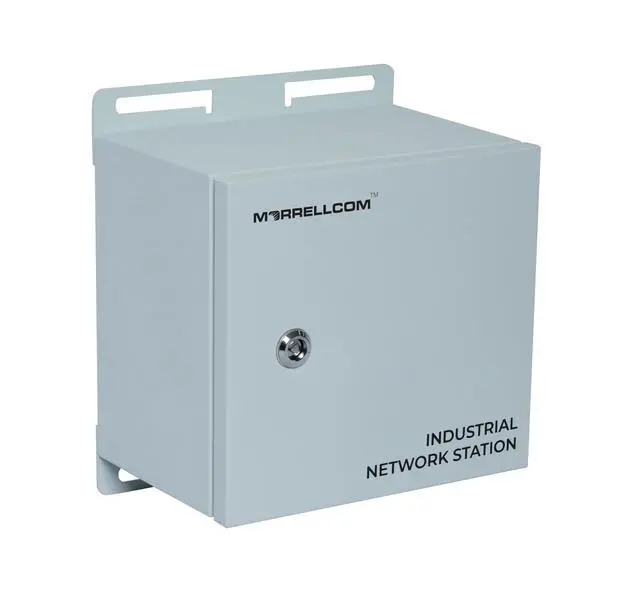

MORRELLCOM 8 Giga Ethernet Ports [8 PoE Ports] + 2 Giga SFP Ports Waterproof Managed Industrial Switch
- Consumption: Self-consumption<15W, PoE output 185W max Downlink ports: 1~8 ports: 10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at) Reset key: Short press restart, >5s press recovery to default Cable and distance: Use cat5e/6, 100m max."
- Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z, IEEE802.3ad, IEEE802.3az, IEEE802.1q, IEEE802.1p, IEEE802.1s, IEEE802.1d, IEEE802.1w, IEEE802.1x, IEEE802.1ad, IEEE802.1ab
- Switch fabric: 20Gbps Though put: 14.88Mpps Buffer: 1M MAC address table: 8K Indicator: Power: 1 *red ; Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE Uplink9, 10: On RJ45 green LEDs indicate Link/Act
- Protection: Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2 SPD: AC lightning arrester, 385v AC@20KA , 2p, - 40 ~ 70C, lower incoming line, dxh06-fcs / 2r40 Working temperature: -20C to 70C Storage temperature: -40C to 85C Humidity: 0 to 95%(No condensation)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AC220V mains power input, 200W DC52V power module inside. 6KV surge protection, 6KV contact / 8KV air ESD protection. The box adopts waterproof (protection level IP55), anti-rust treatment, suitable for long-time outdoor use.
Layer 2 Features: 4K VLAN Table, 8K MAC table, QoS, port-isolation, link aggregation protocol, link-layer discovery protocol, spanning tree protocol. DHCP server/client.
Multicast Management: Support IGMP Snooping V1/V2/V3.
Management: Offer web, TELNET, SSH, and console management support. Provide support for SNMP, RMON, TELNET, SSH, and include a console port. - 2 Years Warranty - 250m Transmission Distance - -40C to 70C Operating Temperature - Waterproof - PoE Overload Protection - PoE Short Circuit Protection - Giga Ethernet Switch - 24/7 Technical Support
Layer 2 Features: 4K VLAN Table, 8K MAC table, QoS, port-isolation, link aggregation protocol, link-layer discovery protocol, spanning tree protocol. DHCP server/client.
Multicast Management: Support IGMP Snooping V1/V2/V3.
Management: Offer web, TELNET, SSH, and console management support. Provide support for SNMP, RMON, TELNET, SSH, and include a console port. - 2 Years Warranty - 250m Transmission Distance - -40C to 70C Operating Temperature - Waterproof - PoE Overload Protection - PoE Short Circuit Protection - Giga Ethernet Switch - 24/7 Technical Support
