DIYmall 3.5" ESP32 Display Module ESP32-3248S035C WiFi+BT Dual-core MCU 320x480 3.5inch TFT Capacitive Touch Screen ST7796 4MB Flash for IoT Smart Home
- ESP32-3248S035 development board is based on the ESP32-DOWDQ6 controller, dual-core CPU, clock frequency up to 240MHZ, integrates a wealth of resource peripherals, high-speed SDIO, SPI, UART and other functions, supports automatic download
- ESP32-32485035 is a real lnternet of Things development tool with a control-lable display screen, which can be used for APP remote control, remote environmental data collection,remote data fusion, remote Parameter settings
- Driver chip: ST7796, 3.5-inch color screen, support 16Bit RGB 65K color display, 320 x 480 resolution
- With TF card slot, Support one-click download program
- Application: Home smart device image transmission, Wireless monitoring, Smart agriculture QR wireless recognition, Wireless positioning system signal, And other IoT applications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

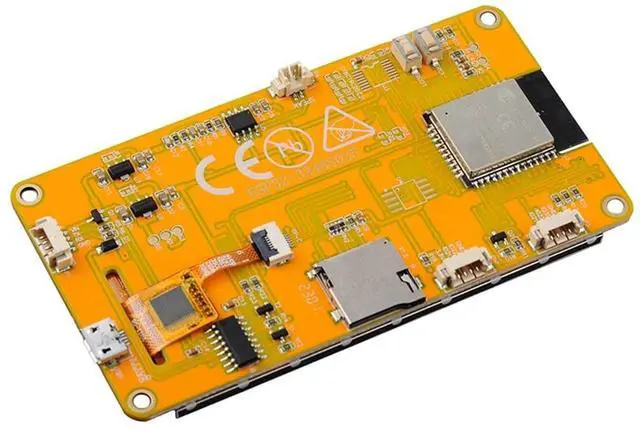

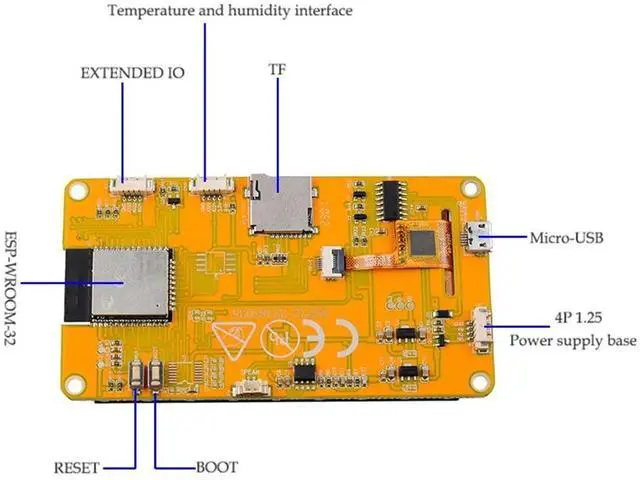

Description: This LCD module uses ESP32-WROOM-32 module as the main control, the maincontrol is a dual-core MCU, integrated Wl-Fl and Blue-tooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB+4MB, The display resolution is 320 x 480, resistive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photo sensitive circuit and RGB-LED control circuit. TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved lO port interface, this module supports development in A rduino IDE, ESP IDE, M icropython and M ixly.
Features: - 3.5 -inch color screen, support 16 BIT RGB 65K color display, display rich colors- 320 x 480 resolution- The sample program has been programmed in the factory and can be plugged in- With TF card slot for easy expansion storage- Provide arduino-library functions and sample programs to facilitate rapid secondary development- Support one-click download program- Military-grade process standards, long-term
stable workParameters: Display
color: RGB
65K colorSize: 3.5
inchType: TFT
Driver chip:
ST7796Resolution: 320*480 (Pixel)
Effective display area: 73.44 * 48.96 (mm)

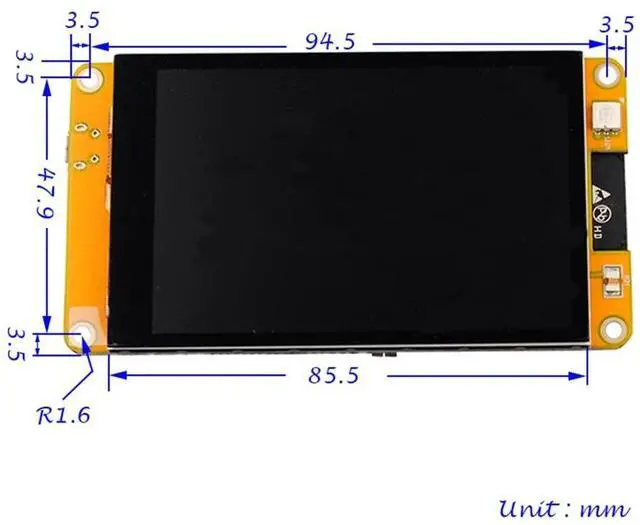

Module size: 101.5 * 54.9 (mm)
View: >60Operating
temperature: -20C~70Storage
temperature: -30~80Operating
Voltage: 5VPower
consumption: About
120mAProduct weight: About

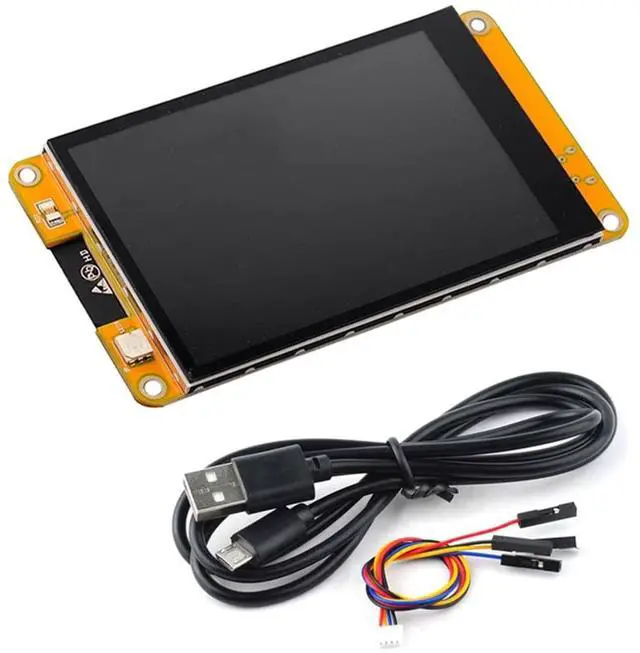

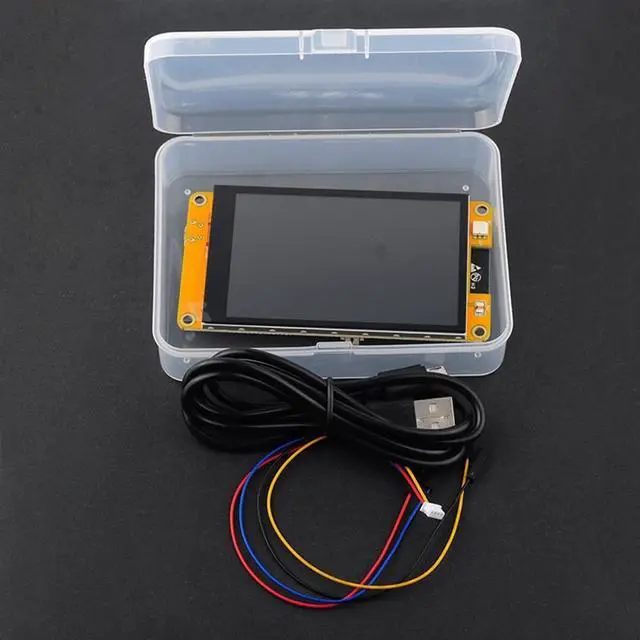

50gPackage includes: 1 X ESP32 3.5 inch touchscreen module
Features: - 3.5 -inch color screen, support 16 BIT RGB 65K color display, display rich colors- 320 x 480 resolution- The sample program has been programmed in the factory and can be plugged in- With TF card slot for easy expansion storage- Provide arduino-library functions and sample programs to facilitate rapid secondary development- Support one-click download program- Military-grade process standards, long-term
stable workParameters: Display
color: RGB
65K colorSize: 3.5
inchType: TFT
Driver chip:
ST7796Resolution: 320*480 (Pixel)
Effective display area: 73.44 * 48.96 (mm)
Module size: 101.5 * 54.9 (mm)
View: >60Operating
temperature: -20C~70Storage
temperature: -30~80Operating
Voltage: 5VPower
consumption: About
120mAProduct weight: About
50gPackage includes: 1 X ESP32 3.5 inch touchscreen module
