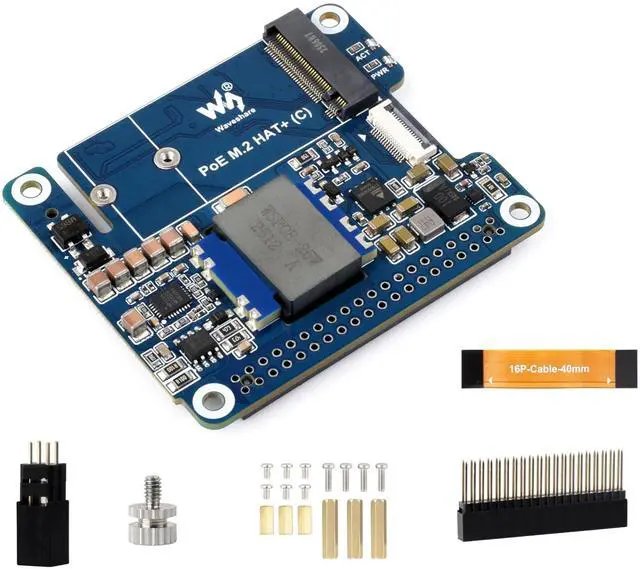

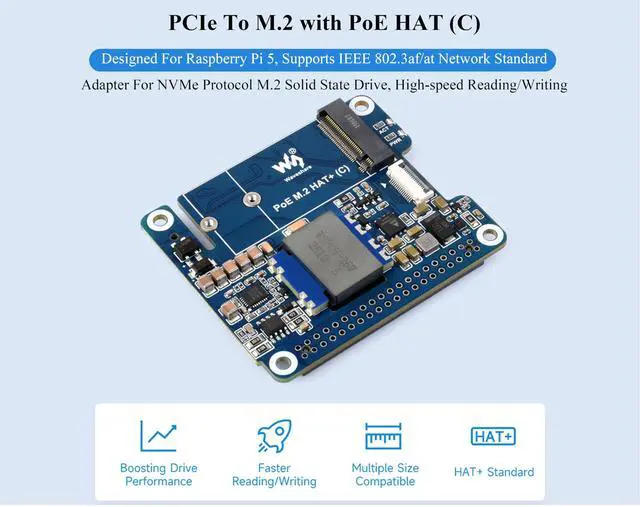

PCIe to M.2 Adapter with PoE Compatible with Raspberry Pi 5, PoE and PCIE to M.2 Two Functions, Supports NVMe Protocol M.2 Solid State Drive 2230/2242, Supports IEEE 802.3af/at Network Standard
- Hardware Compatibility: Based on RPi 40pin GPIO interfaces, is compatible with Raspberry Pi 5. It combines two functions: Ethernet Power Supply (PoE) and PCIE to M.2 conversion.
- PoE Power Supply Capability: Input voltage range: 37V ~ 57V DC. Provides 5V 5A (MAX) power to the GPIO header. Network standard: IEEE 802.3af/at. Support providing both network connection and power supply for your RPi.
- High-Speed Storage Expansion: Supports M.2 NVMe SSD (2230/2242 form factor). PCIe1 mode supports Gen2 or Gen3 (Gen3 needs to be enabled in the configuration file). Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible.
- Power Design: Adopts fully isolated Switch Mode Power Supply (SMPS) mode power. Onboard planar transformer to optimize PoE power supply stability.
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/7m9pyv
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Compatibility: Based on RPi 40pin GPIO interfaces, is compatible with Raspberry Pi
5.
It combines two functions: Ethernet Power Supply (PoE) and PCIE to M. 2 conversion. ^^
PoE Power Supply Capability: Input
voltage range: 37V ~ 57V DC. Provides 5V 5A (MAX) power to the GPIO header.
Network standard: IEEE 802.3 af/at. Support providing both network connection and power supply for your RPi.
^^ High-Speed Storage Expansion: Supports M. 2 NVMe SSD (2230/2242 form factor). PCIe1 mode supports Gen2 or Gen3 (Gen3 needs to be enabled in the configuration file). Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible.
^^ Power Design: Adopts fully isolated Switch Mode Power Supply (SMPS) mode power. Onboard planar transformer to optimize PoE power supply stability. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/7m9pyv
5.
It combines two functions: Ethernet Power Supply (PoE) and PCIE to M. 2 conversion. ^^
PoE Power Supply Capability: Input
voltage range: 37V ~ 57V DC. Provides 5V 5A (MAX) power to the GPIO header.
Network standard: IEEE 802.3 af/at. Support providing both network connection and power supply for your RPi.
^^ High-Speed Storage Expansion: Supports M. 2 NVMe SSD (2230/2242 form factor). PCIe1 mode supports Gen2 or Gen3 (Gen3 needs to be enabled in the configuration file). Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible.
^^ Power Design: Adopts fully isolated Switch Mode Power Supply (SMPS) mode power. Onboard planar transformer to optimize PoE power supply stability. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/7m9pyv
