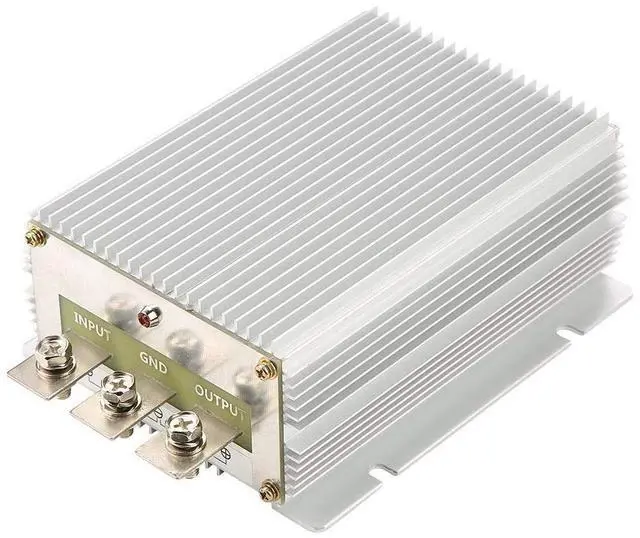

Converter, WG-24S1260 24V to 12V 60A 720W DC-DC Converter Non-Isolated Voltage Converter High Power Step-Down Power Source
- Adopting imported components, conversion efficiency up to 96%,

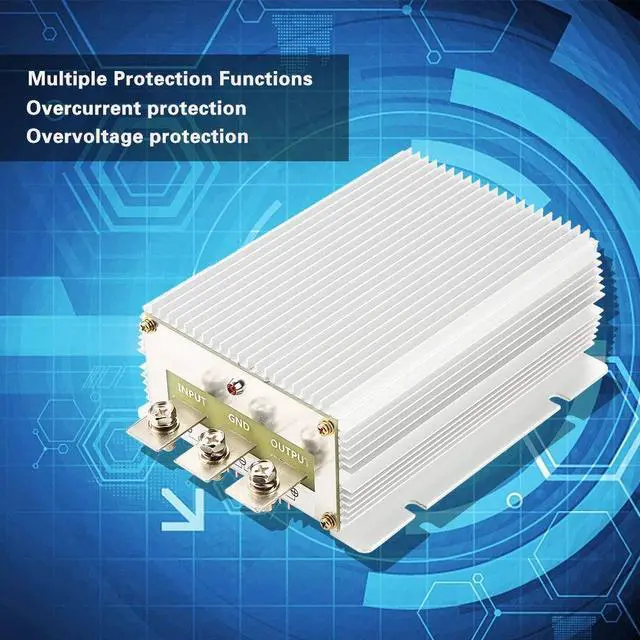

- Automatic Large input voltage, overcurrent, overvoltage, overheating, short circuit and other built-in automatic functions.
- Quality material Sealed with thermally conductive silicone, IP68 and shockproof.

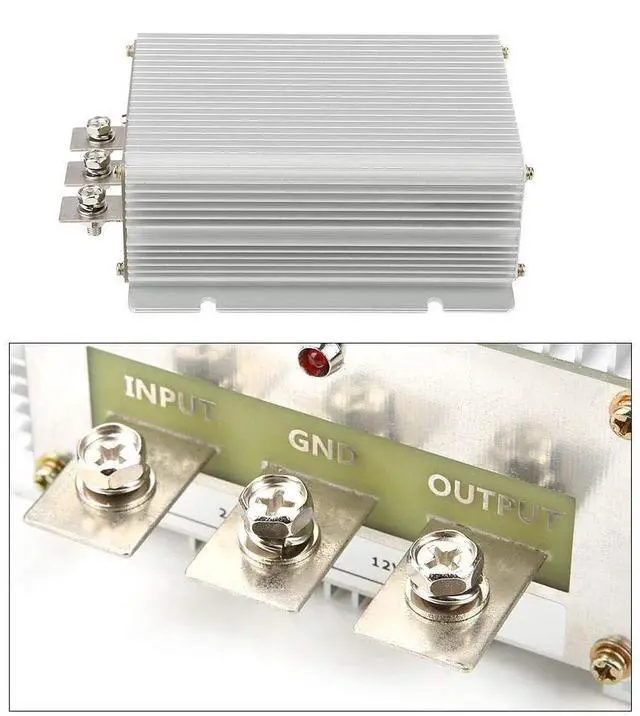

- Easy installation Die-cast aluminum case, compact size, easy installation.
- Long service life Quality assurance, service life up to 100,000 hours.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: 1. Adopting imported precision components, conversion efficiency up to 96%, stable output. 2. Wide input voltage, built-in overcurrent, overvoltage, over temperature, short circuit and other automatic functions. 3. Sealed with thermal conductive silicone, IP68 anti-shock. 4. Die-cast aluminum shell, compact size, convenient to install. 5. Quality assurance, service life up to 100, 000 hours.
Specification:
Model: WG-24S1260Input
voltage: DC
24VInput voltage range: DC
18-36VConversion efficiency: 96%Output
voltage: 12VOutput
current: 60ARated
output power: 720WOutput
peak power: 130%Voltage
regulation ratio: <1%Load
regulation ratio: <2%No
load current: <40mA<300mVWorking
temperature:
-35~80rating: IP68Item

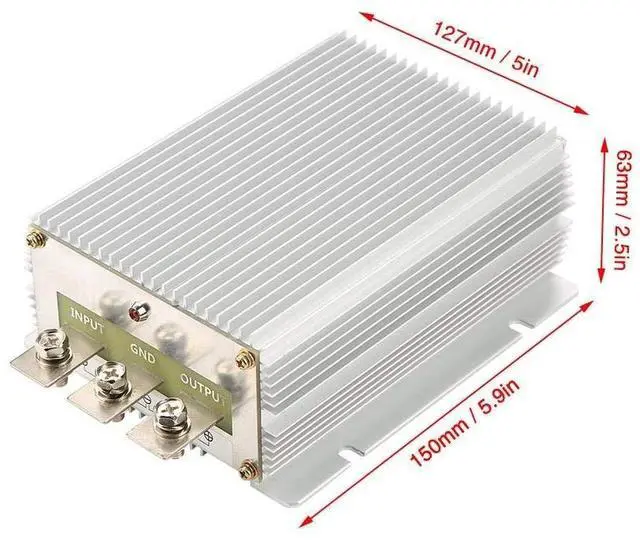

size: 150*127*63mm / 5.9 *5* 2.5 inPackage weight: Approx. 1490g / 52.5 ozPackage list: 1 * DC-DC
Power SourceNote: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
Specification:
Model: WG-24S1260Input
voltage: DC
24VInput voltage range: DC
18-36VConversion efficiency: 96%Output
voltage: 12VOutput
current: 60ARated
output power: 720WOutput
peak power: 130%Voltage
regulation ratio: <1%Load
regulation ratio: <2%No
load current: <40mA<300mVWorking
temperature:
-35~80rating: IP68Item
size: 150*127*63mm / 5.9 *5* 2.5 inPackage weight: Approx. 1490g / 52.5 ozPackage list: 1 * DC-DC
Power SourceNote: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
