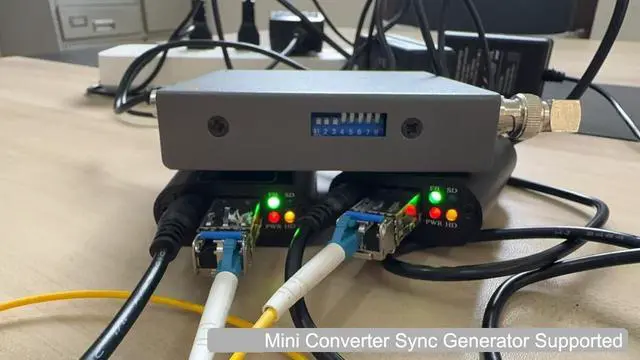

Genlock (CVBS/Blackburst/Tri-Level) Over Optic Fiber Extender 20 Km SMF Fiber, Mini Converter Sync Generator Supported (BY-Genlock-102BNC (with Enclosure))

Genlock over Optic Fiber Extender includes 1 x Transmitter and 1 x Receiver. its Mini Size 38 x 93 mm. It transmite the Genlock signal over Optic Fiber Cable to Long distance of 20 Kilometers, the Operator can use a blackburst or tri-level central timing reference signal to synchronize the video output for the production systems in the remote location. This ensures that the live streaming event has seamless audio and video for the highest viewing experience possible. SpecsAnalog Video / GLNumber of
Channel: 1 Ch, Tx with 1 x Loopout, Rx
with one more outputconnector: BNC

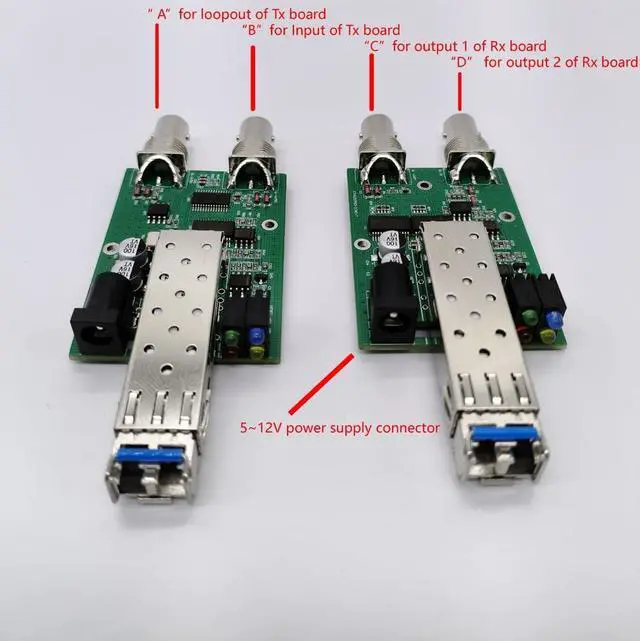

Connector Defination (the second image): "2" for input of Tx board"1" for loopout of Tx board "3" for output 2 of Rx board, "4" for output 1 of
Rx boardStandard: PAL, SECAM, NTSC, Tri-level ( Bi / Tri level auto sense )a) input=bi-level, output=bi-levelb) input=tri-level, output=tri-levelImpedance: 75
Bandwidth: > 5.8 MHz at +/- 0.2 dBDifferential
Gain/ Phase: <1%Group delay: <10 nsSNR: > 67 dB (CCIR567)
Optical:
Wavelength:
1310nmConnector: 1 x
LCDatarate: 1000
BaseOutput Power: -10~-3dbRx
Sensi: Less -24dbSupport
Fiber Type: 9/125u
Single-modeEstimated Distance: 0~20
KilometersPower Supply: Voltage
range: DC
5~12VConnector: Screwed
Power Supply ConnectorPhysical: Enclosure
Size: 95.37 x 52 x 22 mmPCB board
Size: 38 x 93 mmCase
Material:
AluminumColor: BlackN. W.: 0.75K
g/pairEnvironment: Working
temperature: 0-50Storage
temperature:
-40-85Humidity: 0-95%
(non-condensing)Package: 1. 1 x transmitter. 2. 1 x receiver. 3. 2 x Power Adapter. 4. 1 x Manual.
