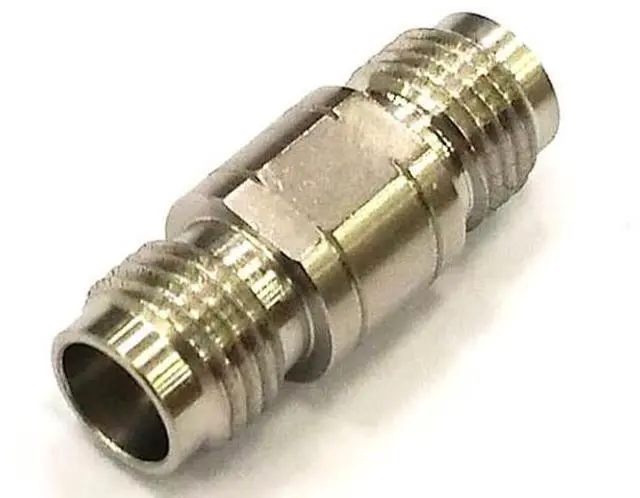

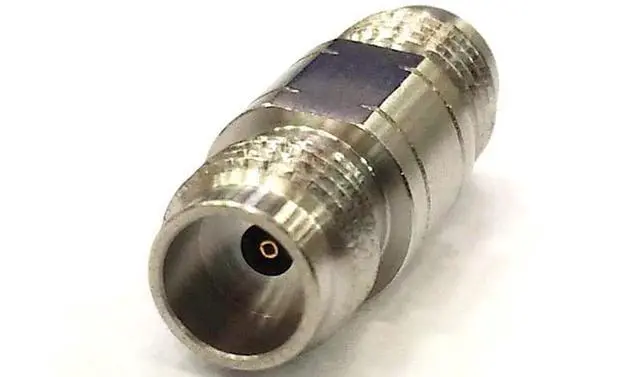

AEC ADT-3016S-VS25IP-VS25IP, 1.85mm Female to Female Adapter
- Frequency Range : DC~67GHz
- Rugged stainless steel body
- 1.85mm connector mate with 2.4mm connectors
- Low VSWR : 1.25 max.
- Package include:1 x termination
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Material:
Shell: Stainless
SteelContact Pin: Beryllium
Copper AlloyInsulator: PEI
Finished:
Shell: PassivatedContact
Pin: Gold platedElectrical
Characteristics:
Impedance: 50
ohmWideband coverage: DC

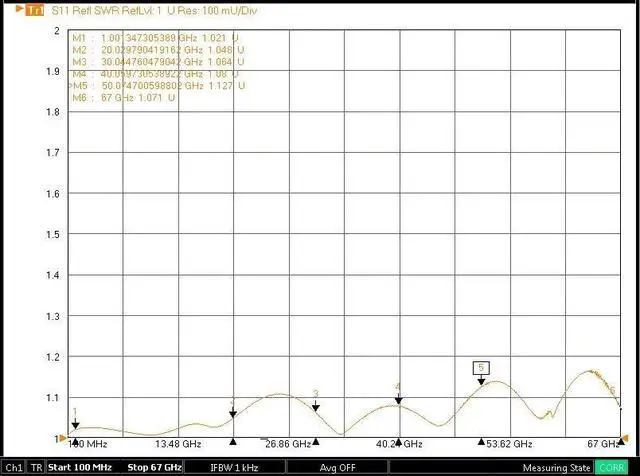

to 67GHzVSWR: 1.25 max.

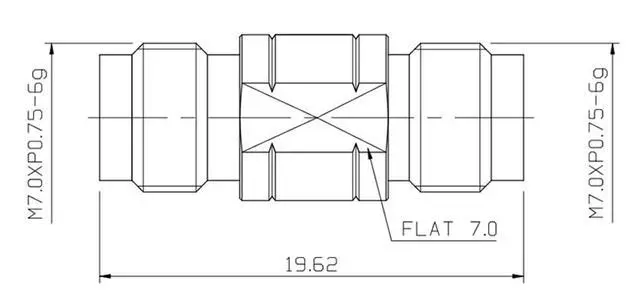

Product Dimension:
Length: 19.66
mmDiameter: 7.7
mmWeight: 4.2
gPacking: Zip Bag(1Pc/1Set)
Shell: Stainless
SteelContact Pin: Beryllium
Copper AlloyInsulator: PEI
Finished:
Shell: PassivatedContact
Pin: Gold platedElectrical
Characteristics:
Impedance: 50
ohmWideband coverage: DC
to 67GHzVSWR: 1.25 max.
Product Dimension:
Length: 19.66
mmDiameter: 7.7
mmWeight: 4.2
gPacking: Zip Bag(1Pc/1Set)
