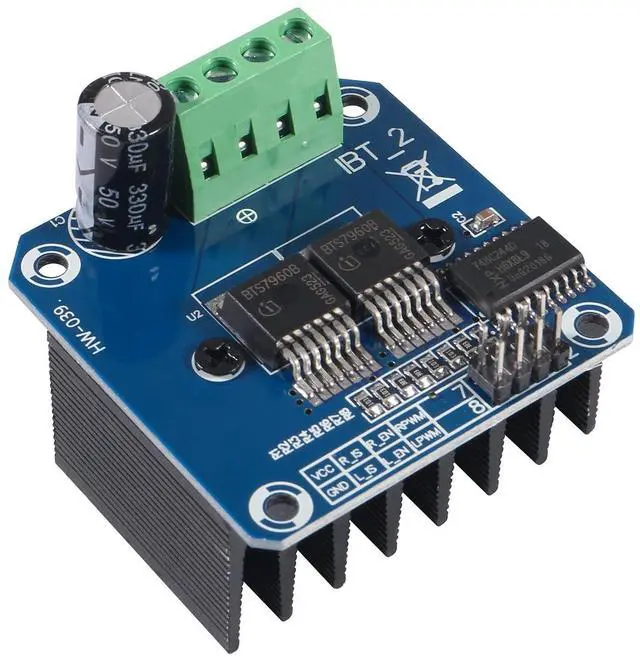

5PCS BTS7960 DC Stepper Motor Driver Module 43A Current Limit Control Module H-Bridge PWM Smart Car Board Compatible with Raspberry Pi Smart Car
- BTS7960 large current (43 A) H bridge driver, 5V power indicator on board; 5V isolate with MCU, and effectively protect MCU.
- Motor driver module isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.

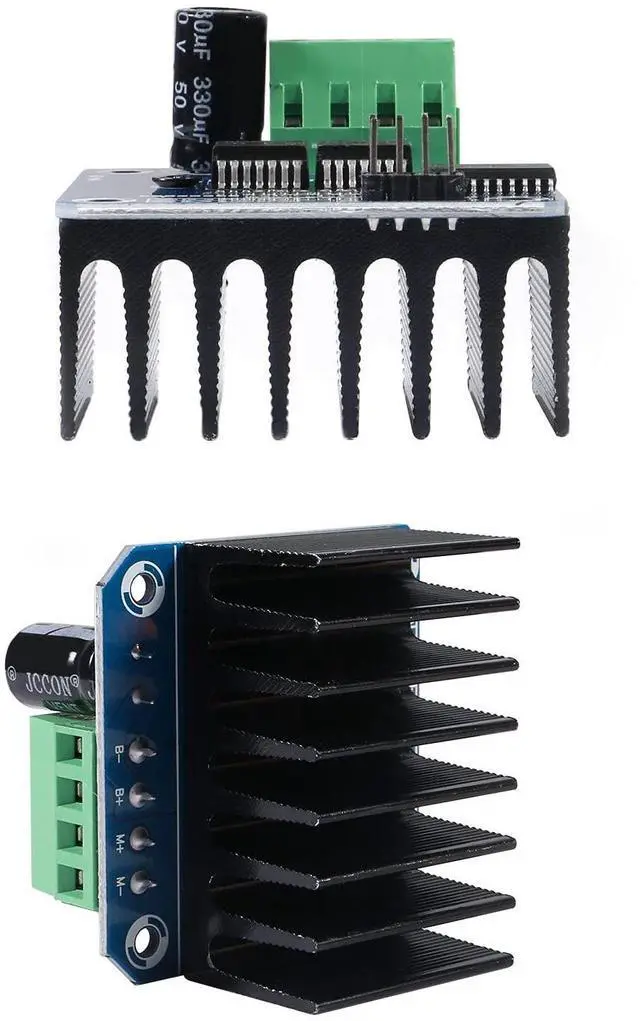

- Voltage indication of motor driver output end; can solder heat sink.
- BTS7960 able to reverse the motor forward, two PWM input frequency up to 25kHZ.
- High power motor driver module just need four lines from MCU to driver module (GN/ 5V/ PWM1/PWM2), two heat flow passing through an error signal output.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Maximum current: 43AInput
level: 3.3 -5V5V isolated with MCU, and effectively protect MCU5V power indicator on boardVoltage indication of motor driver output sideCan solder heat sinkJust need four lines from the MCU to driver module (GND, 5V, PWM1, PWM2)Control
method: PWM or levelInput

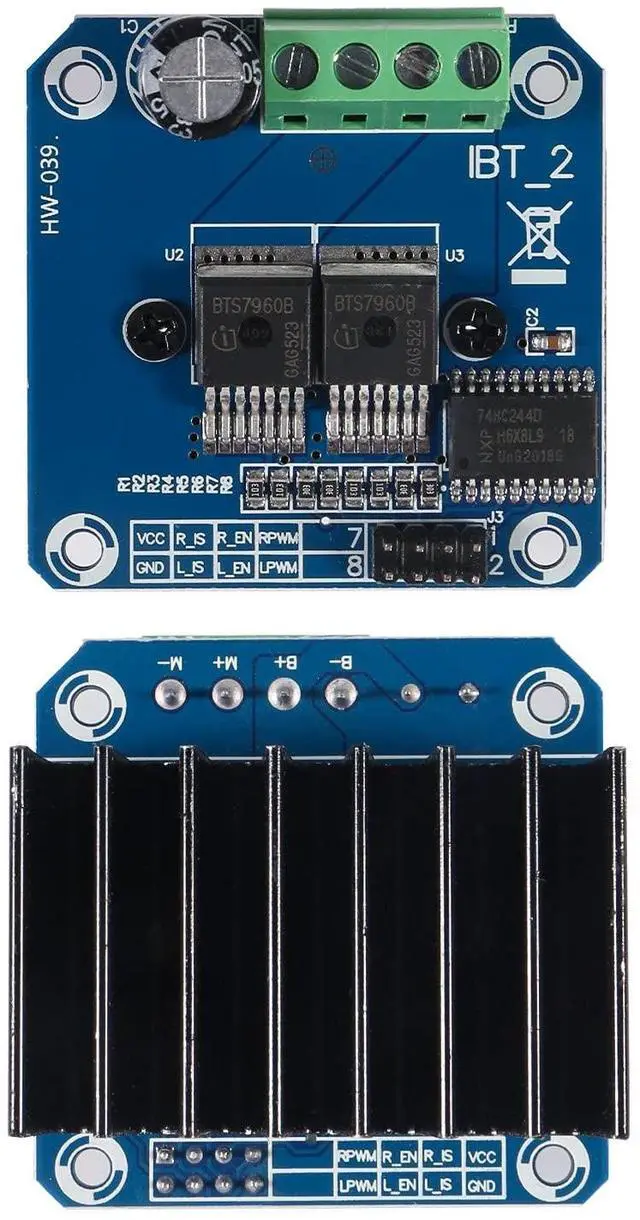

Port:
RPWM: forward level or PWM signal input, active
highLPWM: Reverse level or PWM signal input, active
highR_EN: forward drive enable input, high-level enable, low
level offL_EN: Reverse drive enable input, high-level enable, low
level offR_IS: forward
drive current alarm outputL_IS: Reverse
drive current alarm outputVCC: +5 V power output, 5V power supply connection with the microcontrollerGND: signal

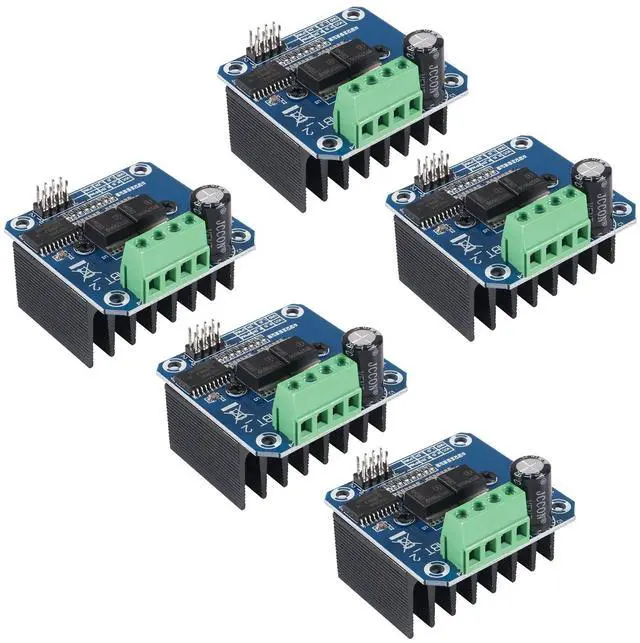

common low endPackage included: 5 x BTS7960 motor drive module
level: 3.3 -5V5V isolated with MCU, and effectively protect MCU5V power indicator on boardVoltage indication of motor driver output sideCan solder heat sinkJust need four lines from the MCU to driver module (GND, 5V, PWM1, PWM2)Control
method: PWM or levelInput
Port:
RPWM: forward level or PWM signal input, active
highLPWM: Reverse level or PWM signal input, active
highR_EN: forward drive enable input, high-level enable, low
level offL_EN: Reverse drive enable input, high-level enable, low
level offR_IS: forward
drive current alarm outputL_IS: Reverse
drive current alarm outputVCC: +5 V power output, 5V power supply connection with the microcontrollerGND: signal
common low endPackage included: 5 x BTS7960 motor drive module
