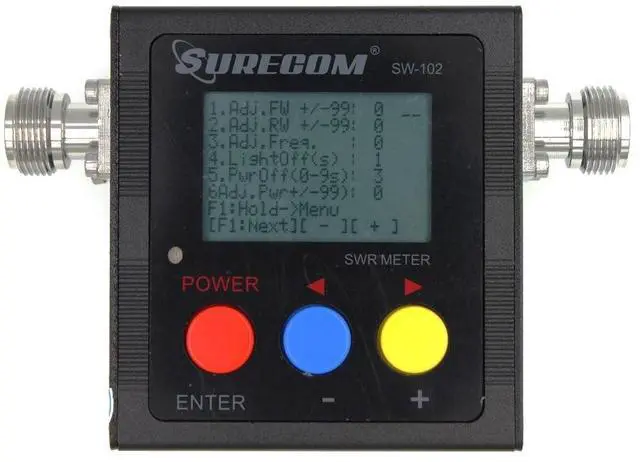

Surecom SW-102 SW102 125-525Mhz Digital VHF/UHF Antenna Power & SWR Meter+MF Connector
- SW-102 is not for DMR radio , only Analog .
- low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
- Build in Frequency counter.
- VSWR. Forward and reflected power direct digital readout, without any calibration.

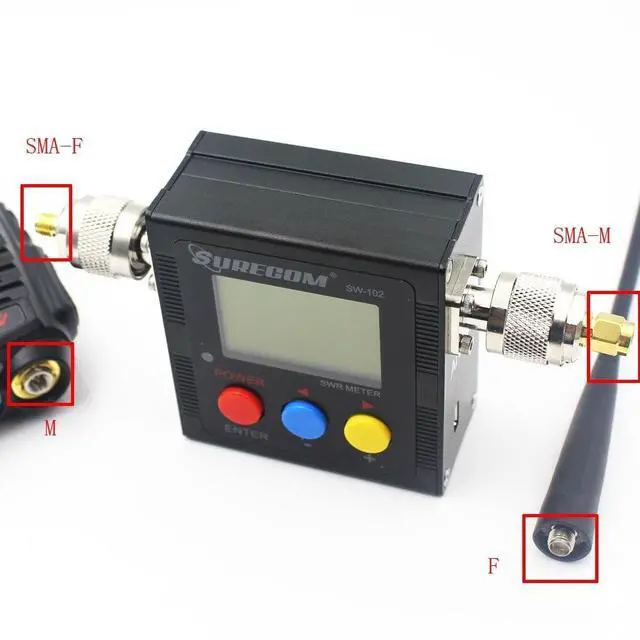

- will ship with a SL16 to SMA-F and SL16 to SMA-M connector
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DescriptionVSWR. Forward and reflected power direct digital readout, without any calibration. Maximum measurable power range up to 120W. low insertion loss ( 0.3 decibels or less) structure allows it to be permanently connected. Build in Frequency counter. All Function display ( Frequency, Power, SWR, FW, RW,
Battery voltage)FunctionsFrequency range: 100
- 520MHzMeasurable power range: 0 - 120WInput
Frequency counterMaximum power: 120W
Accuracy: mean
+ / - 5%Impedance:
50Battery: 3.7V Li-ion
Rechargeable BatteryInterface: N-J
InterfaceSize: 66*68*37 (mm)
Weight: 220gSpecificationMAX.
Power in: 120 WV. S. W.
R: 1.00 ~ 19.9F requency
Ranger: COVER 100MHz~520MHzInsertion
Loss: < 0.15 dB (VHF), < 0.25 dB (UHF)
Temperature: 0~60Input
Frequency counter: YesBattery
Voltage Display: YesBattery
Build-in: 14500 Li-ion RechargeableAuto
Power Off: 1-9

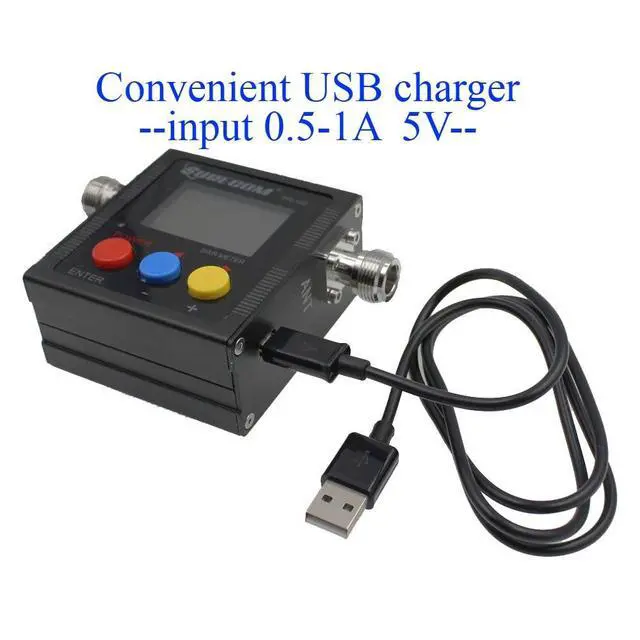

minsCharger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 minsInterface (in and out ): N (SL16)

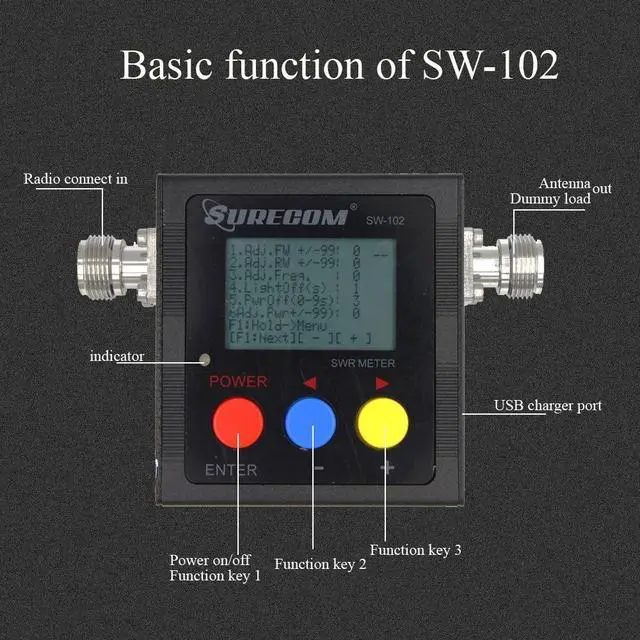

Version: 4.5C onnect the Output of your transceiver to "TX" and Antenna or Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors. 1) Adj. RF Forward %Press 2 second the [Red button] to power on or power off Function Memory SAVE1 Press MENU (Blue button) 2 Press F1 (Red button) (Select 1-6 Function)3 Press Blue button ( - ), Yellow button (+)4 Press the Red button for 2 seconds5 Press the Blue button to SAVE and EXIT
Package List1x SURECOM SW-102 Meter1x Charger Cable1x Users ManualRemark: SW-102 is not for DMR radio, only for Analog
Battery voltage)FunctionsFrequency range: 100
- 520MHzMeasurable power range: 0 - 120WInput
Frequency counterMaximum power: 120W
Accuracy: mean
+ / - 5%Impedance:
50Battery: 3.7V Li-ion
Rechargeable BatteryInterface: N-J
InterfaceSize: 66*68*37 (mm)
Weight: 220gSpecificationMAX.
Power in: 120 WV. S. W.
R: 1.00 ~ 19.9F requency
Ranger: COVER 100MHz~520MHzInsertion
Loss: < 0.15 dB (VHF), < 0.25 dB (UHF)
Temperature: 0~60Input
Frequency counter: YesBattery
Voltage Display: YesBattery
Build-in: 14500 Li-ion RechargeableAuto
Power Off: 1-9
minsCharger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 minsInterface (in and out ): N (SL16)
Version: 4.5C onnect the Output of your transceiver to "TX" and Antenna or Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors. 1) Adj. RF Forward %Press 2 second the [Red button] to power on or power off Function Memory SAVE1 Press MENU (Blue button) 2 Press F1 (Red button) (Select 1-6 Function)3 Press Blue button ( - ), Yellow button (+)4 Press the Red button for 2 seconds5 Press the Blue button to SAVE and EXIT
Package List1x SURECOM SW-102 Meter1x Charger Cable1x Users ManualRemark: SW-102 is not for DMR radio, only for Analog
