BEYIMEI DC to DC Converter 20-72V to12V 10A 120W, DC 24V 36V 48V 60V 72V Step Down to 12V Buck Converter Regulator Voltage Conversion Transformer for Golf Cart, forklifts Car,Solar Panel Regulation
- 20-72V Buck to 12V Converter: Input Voltage Range: 20-72V, Rated Input Voltage DC 24V/36V/48V/60V/72V, Output Voltage: 12V DC (Fixed Output), Maximum Output Current: 10A, Maximum Output Power: 120W, with a conversion efficiency of up to 95%, to meet your voltage needs.
- 120W Converter with fuse protection: The fuse has overcurrent, overheat and short circuit protection, safe and secure to use.
- 72V to 12V Transformer for Trucks, Golf Carts Suitable for trucks, golf carts, solar panels, LED strips, screens, surveillance systems, electronic systems and DIY, etc.

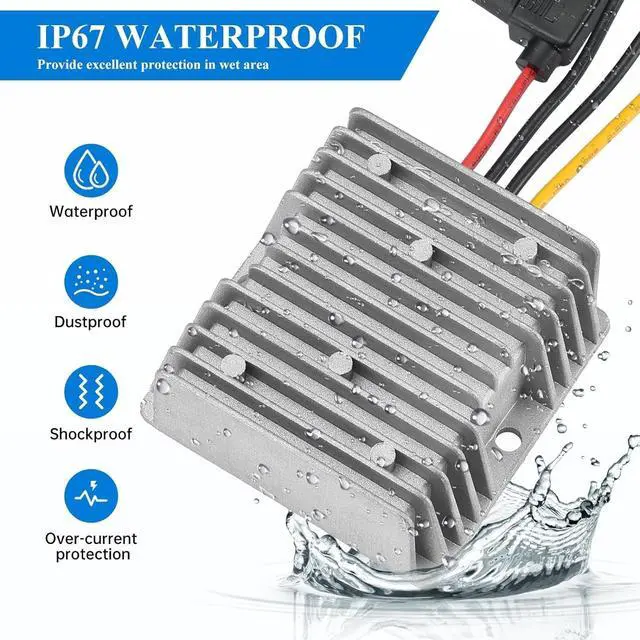

- IP67 Waterproof Function: The DC to DC transformer adopts non-isolated synchronous step-down technology and has IP67 waterproof function.

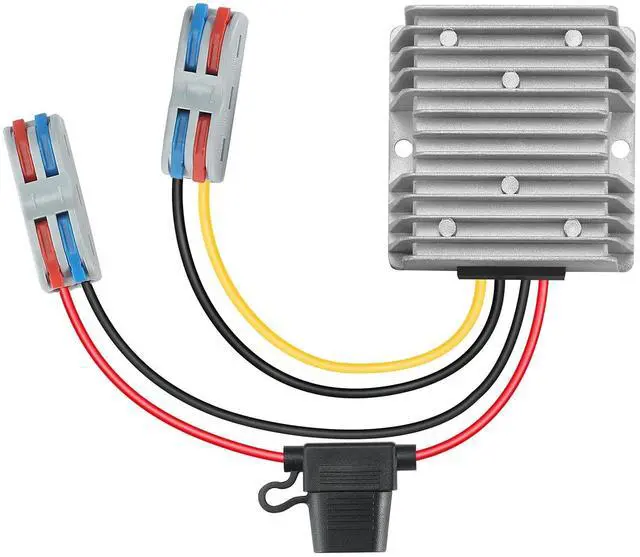

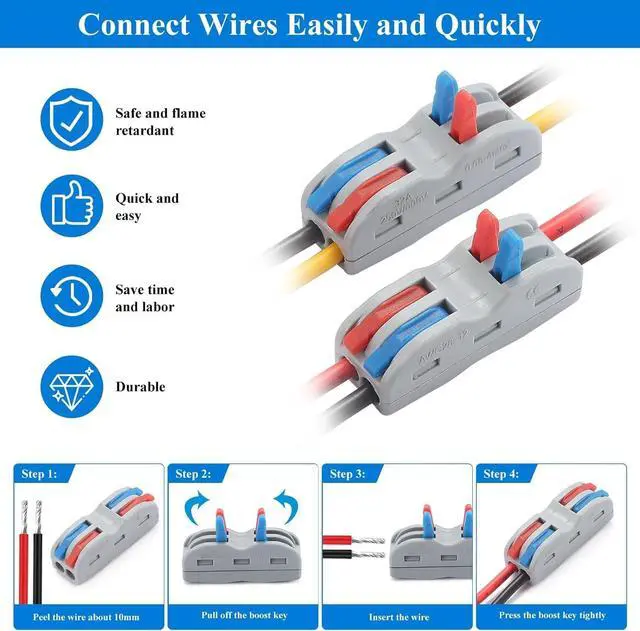

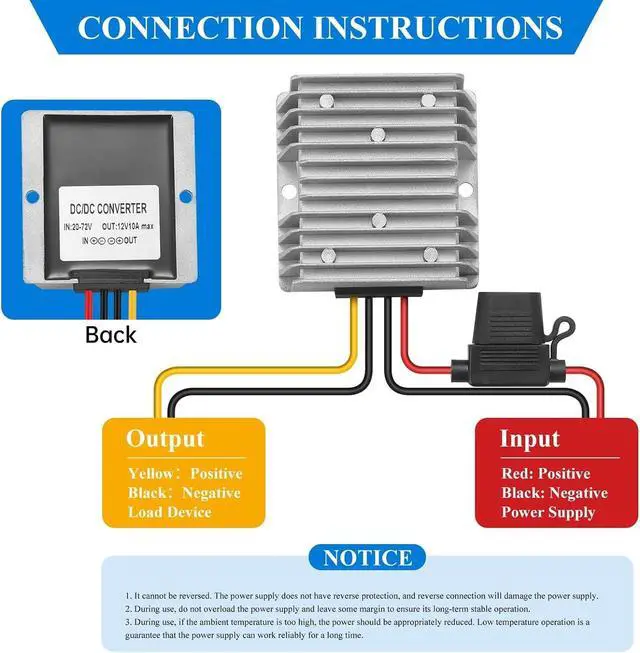

- The converter comes with two connectors, easy to use and saves wiring time. Please note: Please check the positive and negative poles when connecting the product, do not reverse the connection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

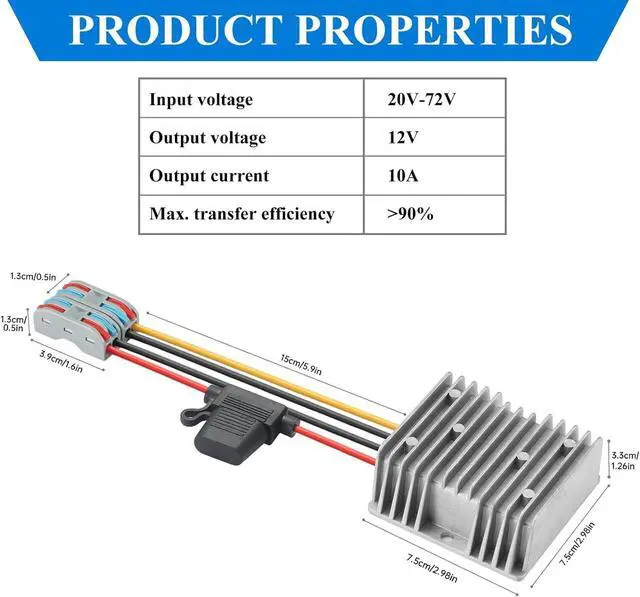

DC/DC 20-72V Step down to 12V10A
ConverterParameters:
Name: DC Buck ConverterFunctionVoltage ConversionInput Range20-72VRated
Input Voltage24V/36V48V/60V/72VOutput Voltage: 12VOutput
Current: 10A MAX
Output Power: 120W
MAXquiescent dissipation: 30MATransfer
Efficiency95%Waterproof Rating: IP67Working
Temperature: -20-65Storage
Temperature-40-85Working Humidity: 10%-90%RHHeat
Dissipation MethodNatural Heat DissipationDefencive Function: Short-circuit
protectionOvertemperature protection: Overcurrent
protection: Anti-connection
protection: Cautions1. Do not use it near a heat source (such as a fire or a heater) 2. Do not connect the input line to 220V electricity3. Do not put the product into the fire or heat it4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects5. Non-professional personnel are prohibited to disassemble and repair by themselvesPackage
Includes: 1x DC to DC 12V10A Voltage ConverterPlease feel free to contact us if you have any questions with installation or quality.
ConverterParameters:
Name: DC Buck ConverterFunctionVoltage ConversionInput Range20-72VRated
Input Voltage24V/36V48V/60V/72VOutput Voltage: 12VOutput
Current: 10A MAX
Output Power: 120W
MAXquiescent dissipation: 30MATransfer
Efficiency95%Waterproof Rating: IP67Working
Temperature: -20-65Storage
Temperature-40-85Working Humidity: 10%-90%RHHeat
Dissipation MethodNatural Heat DissipationDefencive Function: Short-circuit
protectionOvertemperature protection: Overcurrent
protection: Anti-connection
protection: Cautions1. Do not use it near a heat source (such as a fire or a heater) 2. Do not connect the input line to 220V electricity3. Do not put the product into the fire or heat it4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects5. Non-professional personnel are prohibited to disassemble and repair by themselvesPackage
Includes: 1x DC to DC 12V10A Voltage ConverterPlease feel free to contact us if you have any questions with installation or quality.
