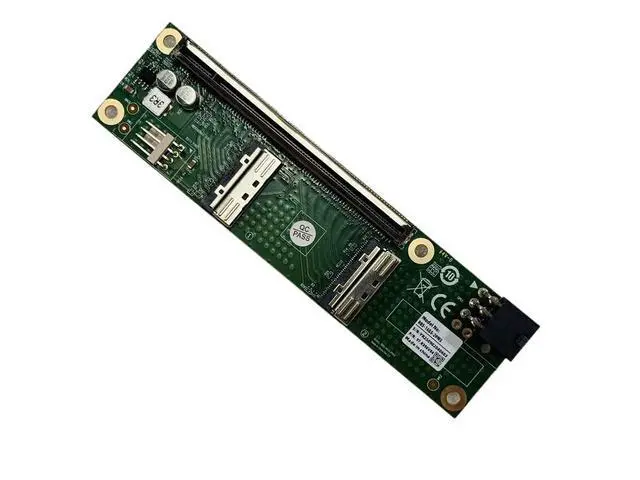

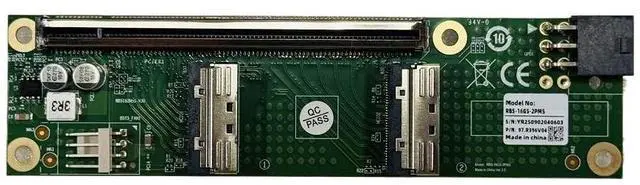

2 Port MCIO 8I to PCIe x16 Slot SFF-TA-1016 Adapter PCle 5.0 MCIO x16/x8 Mini Cool Edge IO Female PCI Expansion Card Adapter with 6Pin GPU Power Port for Expansion Graphics
- One detachable PCIE PCI-Express 8x motherboard can be connected,The converter can be installed into the system internally through the MCIO interface.Only supports motherboards with detachable PCI-E channels.Control the operation of two disks based on the motherboard PCIE channel,The motherboard without PCIE signal split can only recognize one disk.
- 2) Built-in multiple sets of high-power DC modules for sustainable and stable work.
- 3) The adapter is designed for use with ssd that use MICO 8x connectors, allowing for fast and reliable data transfer at speeds of up to 24 Gbps.
- 4) The MCIO Mini Cool Edge IO is designed to support a wide range of protocols, including SAS, PCIe, Ethernet, and more, ensuring optimal performance for your equipment.
- 5) Support for SAS 3.0/4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4 means that you can trust that your equipment will perform at optimal levels without any signal loss or degradation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
two 56G PCIe 5.0 MCIO 8i input one PCIe x16 electrical/mechanical output PCIe gen5 - high quality Amphenol SMT slot, 85Ohm Ultra Low Loss PCB can work in x8 mode with one cable (input near the power plug) can work in x16 mode with both inputs connected (must be the same CPU host port and lane ordering must be 0-7->8-15, NOT 8-15->0-7, switching the cables will help! ) GPU Power connector to supply 12V. DO NOT connect the wrong power connector, it will destroy the Adapter and your GPU!!! 6A 12V-> 3.3V buck voltage regulator Product Type Power Connector ATX 2*3 GPU Mini fit 5569 Device Count 1 PCIe AIC Host Connectors 2 MCIO 74Pin Physical Dimensions 138.5 mm*38mm weight 250g Operating Voltage +12V +/-8%;
Environmental Operating: 0C to 70C
Storage: -40C to 70C 5 to 90% non-condensing Option MCIO 8i to MCIO 8i Cable L=800mm MCIO 8i to SFF-8654 8i Cable L=1000mm
Environmental Operating: 0C to 70C
Storage: -40C to 70C 5 to 90% non-condensing Option MCIO 8i to MCIO 8i Cable L=800mm MCIO 8i to SFF-8654 8i Cable L=1000mm
