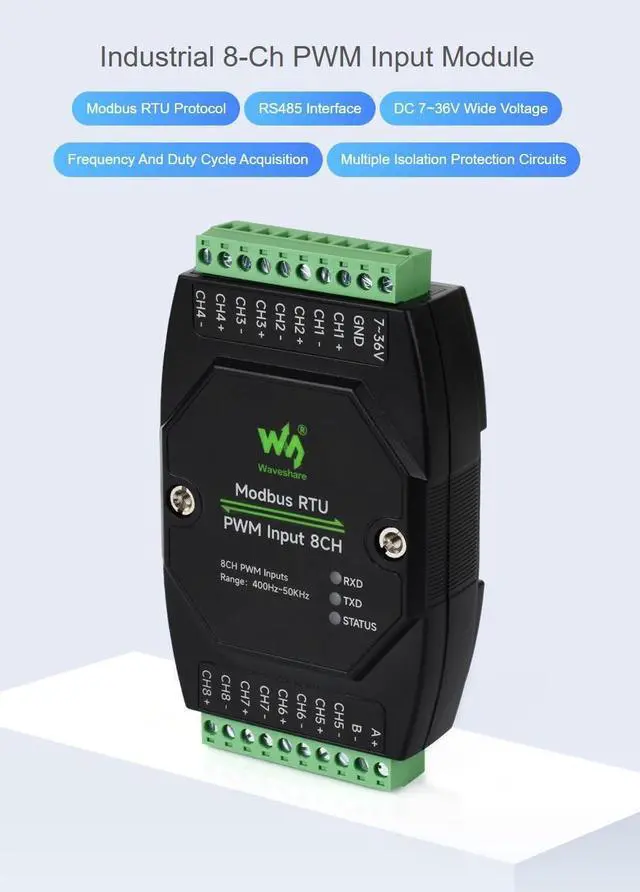

Modbus RTU PWM Input Module 8CH, Isolated RS485 8-Channel PWM Pulse Detector, Frequency & Duty Cycle Acquisition, 7-36V DC Input, DIN Rail Mount Case, TVS/Fuse Protection, LEDs
- Industrial Modbus RTU PWM Input Module: RS485 Modbus RTU PWM input module with 8-channel PWM input for industrial monitoring and automation systems; reads PWM pulse signals via wired RS485 bus.
- Frequency & Duty Cycle Acquisition: Supports PWM frequency measurement and PWM duty cycle acquisition on 8 channels, designed for high-frequency pulse detection and signal sampling applications.

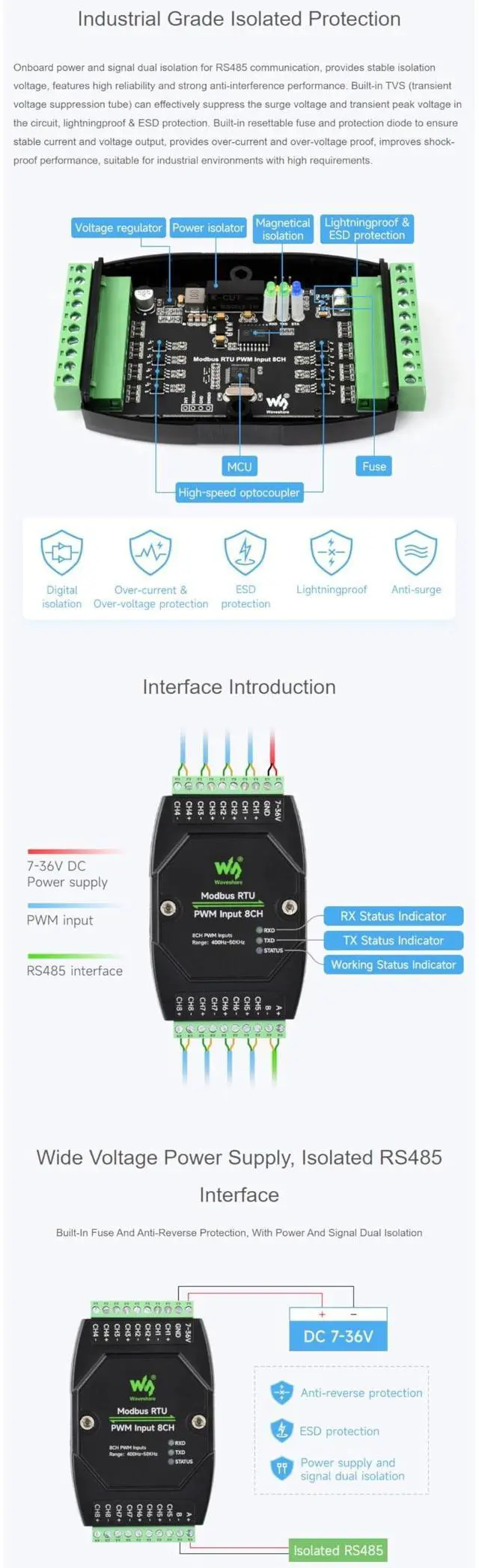

- Optocoupler Isolated PWM Inputs: Each input uses high-speed optocoupler isolation and supports high-frequency detection; improves noise immunity for this isolated RS485 PWM detector in industrial environments.
- 736V Wide Voltage Power Supply: Onboard regulator supports 7-36V DC input; unibody isolated power design provides stable isolated voltageno extra isolated supply required for the isolated terminal.
- Protection + Watchdog + DIN Rail Housing: Built-in resettable fuse and TVS surge/transient suppression for over-voltage/over-current protection, plus watchdog for stable operation; DIN r
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial Modbus RTU PWM
Input Module: RS485 Modbus RTU PWM input module with 8-channel PWM input for industrial monitoring and automation systems; reads PWM pulse signals via wired RS485 bus. ^^ Frequency &
Duty Cycle Acquisition: Supports PWM frequency measurement and PWM duty cycle acquisition on 8 channels, designed for high-frequency pulse detection and signal sampling applications. ^^
Optocoupler Isolated PWM Inputs: Each input uses high-speed optocoupler isolation and supports high-frequency detection; improves noise immunity for this isolated RS485 PWM detector in industrial environments. ^^ 736V Wide
Voltage Power Supply: Onboard regulator supports 7-36V DC input; unibody isolated power design provides stable isolated voltageno extra isolated supply required for the isolated terminal. ^^ Protection + Watchdog +

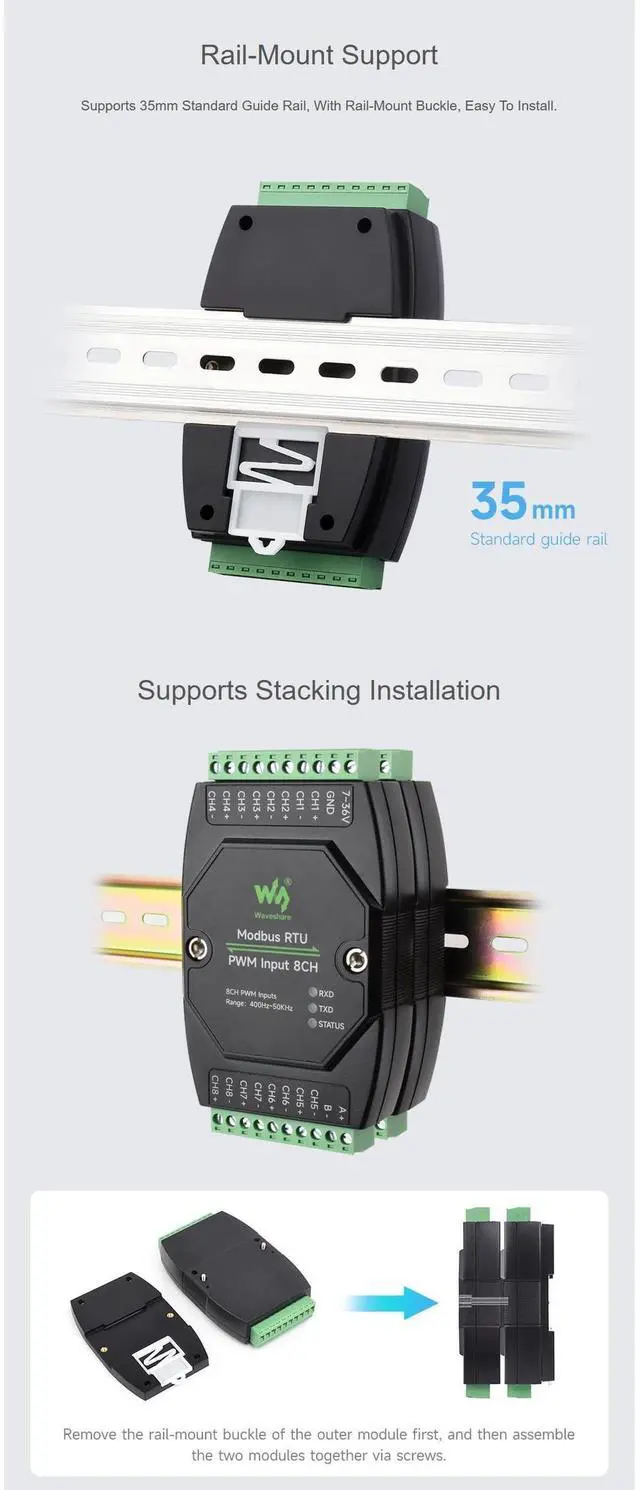

DIN Rail Housing: Built-in resettable fuse and TVS surge/transient suppression for over-voltage/over-current protection, plus watchdog for stable operation; DIN rail mount case supports stacking and includes 3 LEDs for MCU & RS485 status.
Input Module: RS485 Modbus RTU PWM input module with 8-channel PWM input for industrial monitoring and automation systems; reads PWM pulse signals via wired RS485 bus. ^^ Frequency &
Duty Cycle Acquisition: Supports PWM frequency measurement and PWM duty cycle acquisition on 8 channels, designed for high-frequency pulse detection and signal sampling applications. ^^
Optocoupler Isolated PWM Inputs: Each input uses high-speed optocoupler isolation and supports high-frequency detection; improves noise immunity for this isolated RS485 PWM detector in industrial environments. ^^ 736V Wide
Voltage Power Supply: Onboard regulator supports 7-36V DC input; unibody isolated power design provides stable isolated voltageno extra isolated supply required for the isolated terminal. ^^ Protection + Watchdog +
DIN Rail Housing: Built-in resettable fuse and TVS surge/transient suppression for over-voltage/over-current protection, plus watchdog for stable operation; DIN rail mount case supports stacking and includes 3 LEDs for MCU & RS485 status.
