TPM 2.0 Module LPC 20Pin with SLB9665 Windows 11 Upgrade TPM Chip for Gigabyte Motherboard GA-Z170-D3H GA-Z170-HD3 GA-Z170-HD3P GA-Z170M-D3H GA-Z170X-UD3 GA-Z270X-UD5 GA-Z270X-Gaming 5

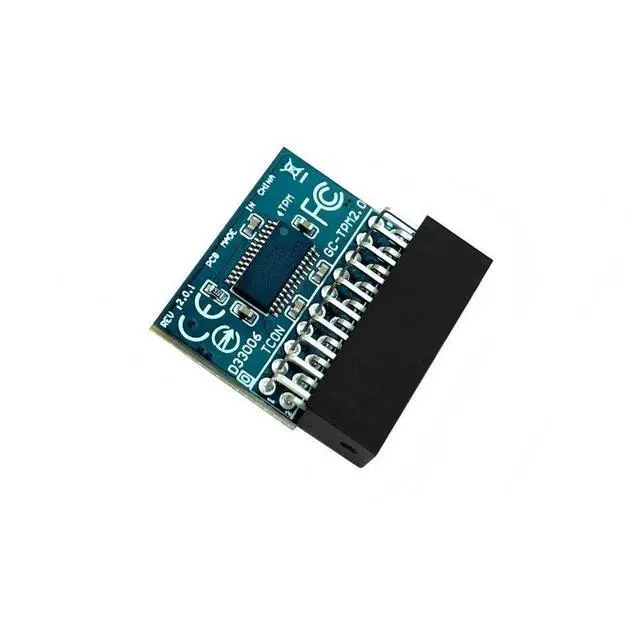

Package Includes1PCS TPM 2.0 Module 20 pin Security Module (As shown in the figure)
Important Notes: 1. This product is only compatible with older motherboards such as Intel and AMD. It is not compatible with newer motherboard models featuring firmware TPM, all-in-one PCs, or laptops. 2. The minimum hardware requirements for upgrading to Windows 11 via

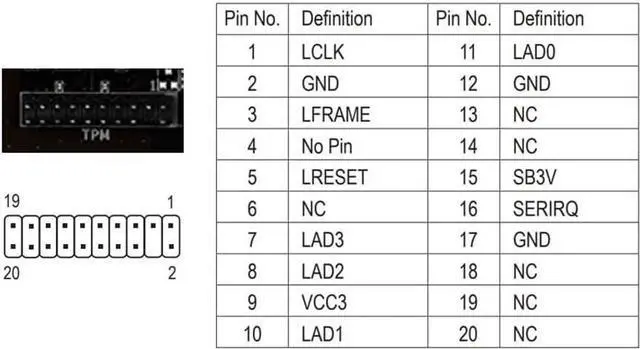

TPM 2.0 are as follows: a 1 GHz or faster 64-bit processor (dual-core/multi-core), 4 GB of memory, 64 GB of storage space, firmware supporting UEFI Secure Boot and TPM 2.0, a DirectX 12-compatible graphics card, and a display with a resolution of 720p or higher. 3. This product has a 20-pin-1 connector. Please carefully check the pin positions in the image to ensure compatibility with your motherboard before purchasing.
Compatible Models: for GigabyteZ170Z170XZ170MZ270Z270XZ270MG1. Sniper Z170GA-Z170-D3HGA-Z170-HD3GA-Z170-HD3 DDR3GA-Z170-HD3PGA-Z170M-D3HGA-Z170MX-Gaming 5GA-Z170X-DesignareGA-Z170X-Gaming 3GA-Z170X-Gaming 5GA-Z170X-Gaming 7GA-Z170X-Gaming G1GA-Z170X-Gaming GTGA-Z170XP-SLIGA-Z170X-SOC FORCEGA-Z170X-UD3GA-Z170X-UD5GA-Z170X-UD5 THGA-Z270-Gaming 3GA-Z270-Gaming K3GA-Z270-HD3GA-Z270-HD3PGA-Z270M-D3HGA-Z270MX-Gaming 5GA-Z270-Phoenix GamingGA-Z270X-DESIGNAREGA-Z270X-Gaming 5GA-Z270X-Gaming 7GA-Z270X-Gaming 8GA-Z270X-Gaming 9GA-Z270X-Gaming K5GA-Z270X-Gaming K7GA-Z270X-UD3GA-Z270X-UD5GA-Z270X-Ultra GamingHow to Select and Install a
Security Module: 1. Confirm whether the host has TPM 2.0 or if TPM 2.0 is enabled. 2.
Click Run,

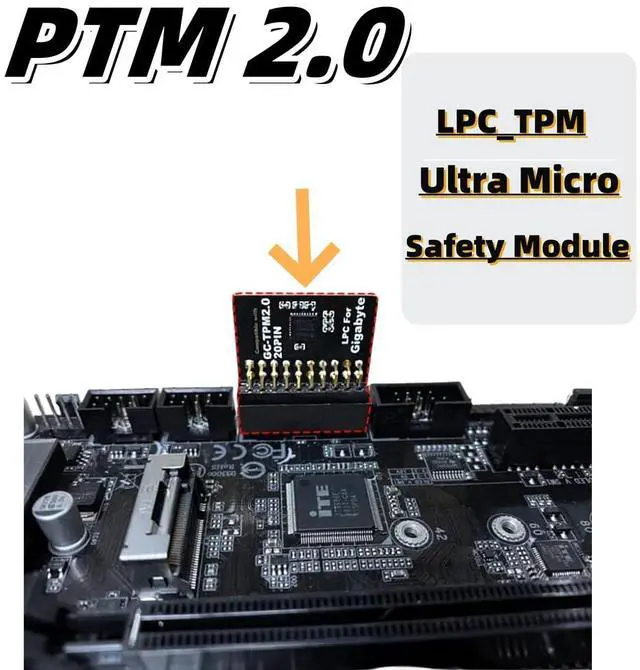

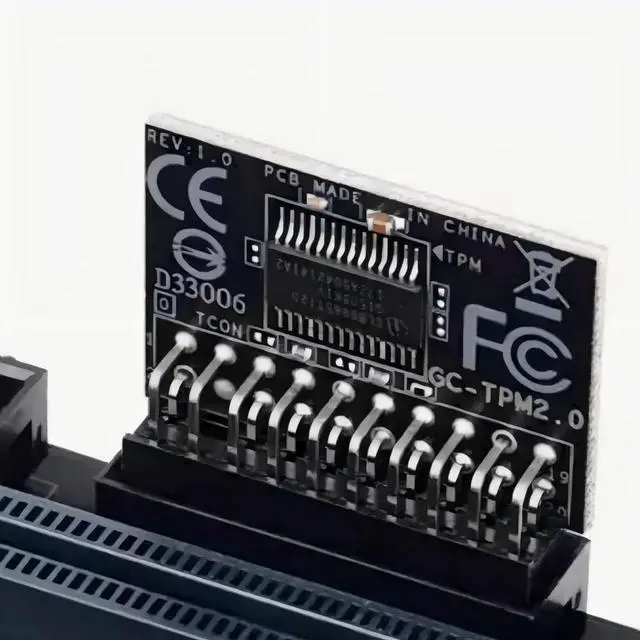

enter: tpm. msc (Win+R keys), and check if the TPM version is ready. 3. If version 2.0 is displayed but not ready, you need to configure settings in the BIOS; consult the motherboard manufacturer's customer service. 4. Open the host and inspect the TPM pins on the motherboard. 5. When installing the module, ensure the chip-side faces inward, align with the pins, and insert fully to prevent loosening. (See image for direction) br>Product

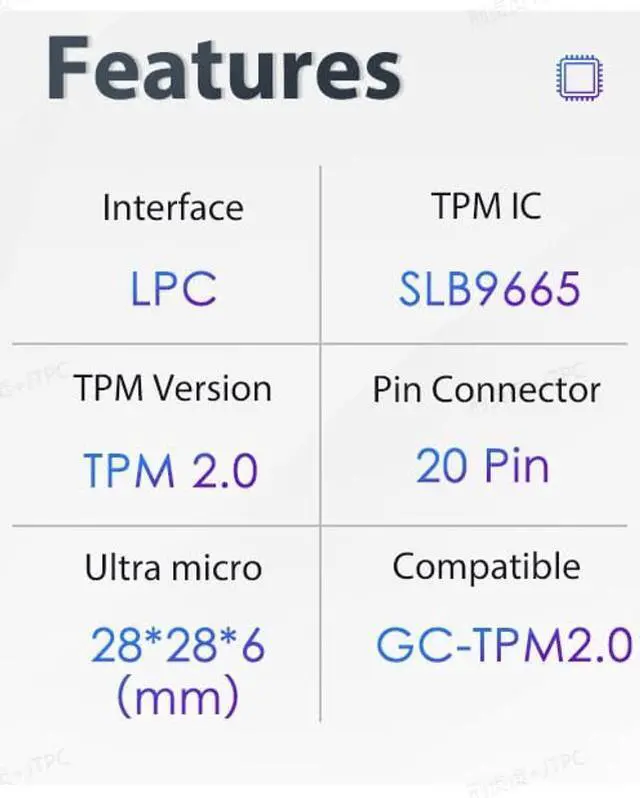

PerformanceCompatible with: GC-TPM
2.0C hipset:
SLB9665Interface: LPCPIN
DEFINE: 20PinCore
Applications:
1: Seamless upgrade to
Windows 11: Resolve TPM 2.0 verification issues and easily upgrade to the latest operating system.
2: Enhanced
hardware-level security: Provides an independent secure encryption chip specifically designed for securely storing sensitive data (such as encryption keys, digital certificates, and login credentials), thereby enhancing overall system security.
3: Hardware
encryption acceleration: Reduces CPU load by accelerating encryption operations via dedicated hardware, indirectly improving system response speed and enhancing the smooth operation of certain encryption-dependent applications (such as games and security software).
