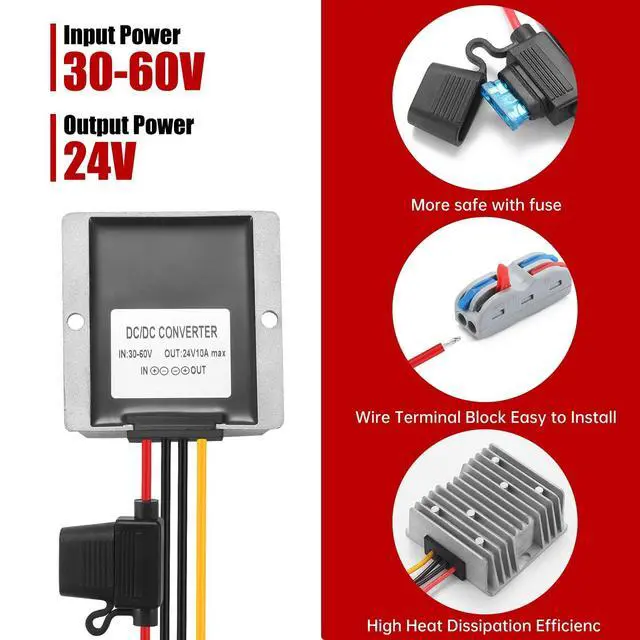

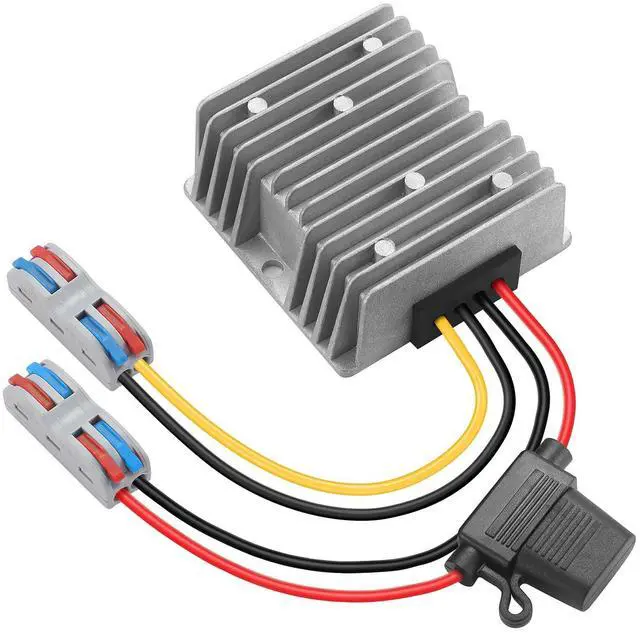

Mzhou 240W DC-DC Buck Converter, 30V-60V to 24V 10A, Waterproof Transformer for Truck/RV/Solar, Power Supply for CCTV Cameras, Overload and Short-Circuit Protection (IP67, 1 Year Warranty)
- Accurate voltage stabilization 24V 1%, continuous 10A/240W high power output, easy to drive motor/solar system/industrial equipment, conversion efficiency up to 95%, energy saving 30% than ordinary buck module, 72 hours full load test 0 attenuation
- Over-voltage/over-current/short-circuit/over-temperature/reverse connection protection, IP67 waterproof case (no worry about heavy rain/wet environment)
- Wide voltage input 30-60V (compatible with 24V/36V/48V system) Applicable: Golf cart/solar battery/AGV robot/ship power system
- Waterproof transformer adopts non-isolated synchronous step-down technology, working temperature: -20-65, it will change according to the ambient temperature. The transformer is molded, dustproof, waterproof and shockproof.
- 1 year long warranty (industry average is only 30-180 days) 24/7 English customer service support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC 30-60V to 24V
Step-Down Converter Specification:
Input: DC
30-60VOutput: DC 24V 10A (max)
Watertightness: IP68Operating
temperature: -20
to 65Storage temperature: -40 to 8536V 48V to 24V voltage

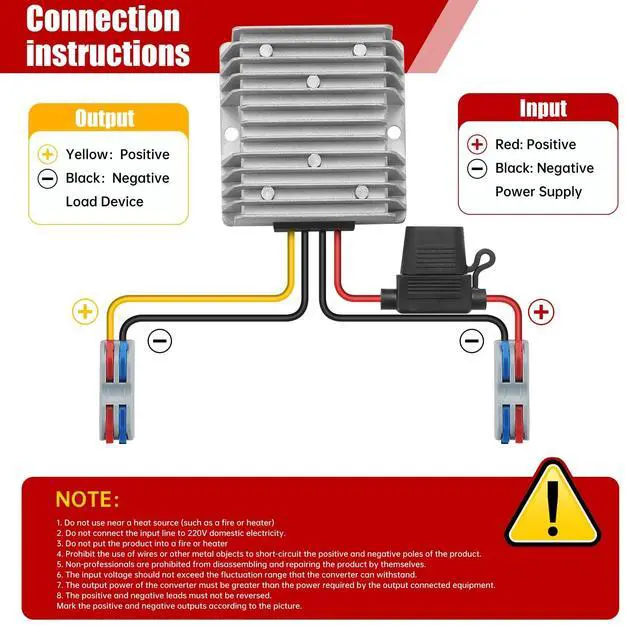

Buck regulator connection:
Input: Red (+)
Black (-)Output: Yellow (+)
Black (-)Protection: Short circuit protection, over temperature protection, over current protection(Please note that there is no reverse polarity protection, please wire correctly, otherwise the current may burn out). DC Voltage Regulator Safety Manual1. The load connected to the output of the power regulator should not be higher than the maximum load power, any higher load will cause damage to the power regulator. 2. If the ambient temperature is too high, the power should be reduced accordingly, and operating at low temperatures is a guarantee that the power supply will work reliably for a long time. 3. Do not use the device near a heat source such as fire or heater. 4. Do not connect the input cable to the 220 V household mains. 5. Do not place the appliance near a fire or heater. 6. Do not allow non-professionals to disassemble and service the appliance. 7. The input voltage should not exceed the fluctuation range that the converter can withstand. 8. The output power of the converter must be greater than the power required by the connected devices.
9. The positive and negative leads must not be reversed. Package Contains1x 30V-60V to 24V 10A 240W voltage converter
Step-Down Converter Specification:
Input: DC
30-60VOutput: DC 24V 10A (max)
Watertightness: IP68Operating
temperature: -20
to 65Storage temperature: -40 to 8536V 48V to 24V voltage
Buck regulator connection:
Input: Red (+)
Black (-)Output: Yellow (+)
Black (-)Protection: Short circuit protection, over temperature protection, over current protection(Please note that there is no reverse polarity protection, please wire correctly, otherwise the current may burn out). DC Voltage Regulator Safety Manual1. The load connected to the output of the power regulator should not be higher than the maximum load power, any higher load will cause damage to the power regulator. 2. If the ambient temperature is too high, the power should be reduced accordingly, and operating at low temperatures is a guarantee that the power supply will work reliably for a long time. 3. Do not use the device near a heat source such as fire or heater. 4. Do not connect the input cable to the 220 V household mains. 5. Do not place the appliance near a fire or heater. 6. Do not allow non-professionals to disassemble and service the appliance. 7. The input voltage should not exceed the fluctuation range that the converter can withstand. 8. The output power of the converter must be greater than the power required by the connected devices.
9. The positive and negative leads must not be reversed. Package Contains1x 30V-60V to 24V 10A 240W voltage converter
