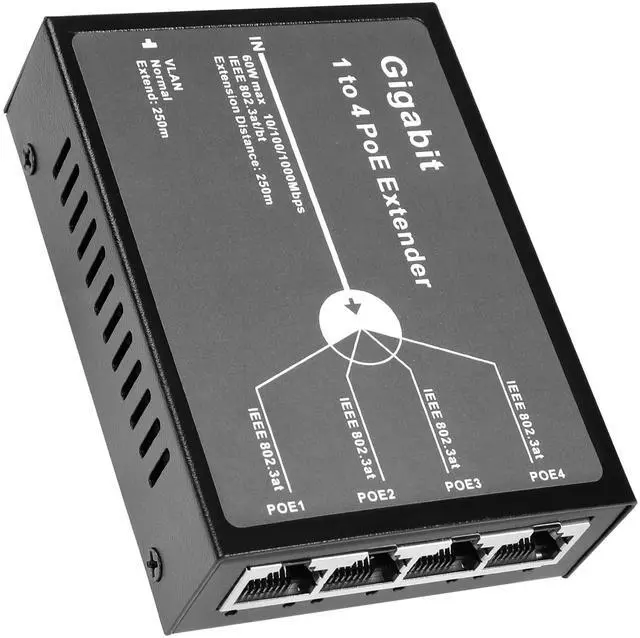

REVODATA Gigabit 4 Port 60W PoE Extender, 10/100/1000Mbps 1 in 4 Out PoE+ Repeater with 3 Mode Available, 60W 802.3BT Input, 802.3at Output 30W, 100m/250m PoE Extension for PoE Device (POE5004G-V2)

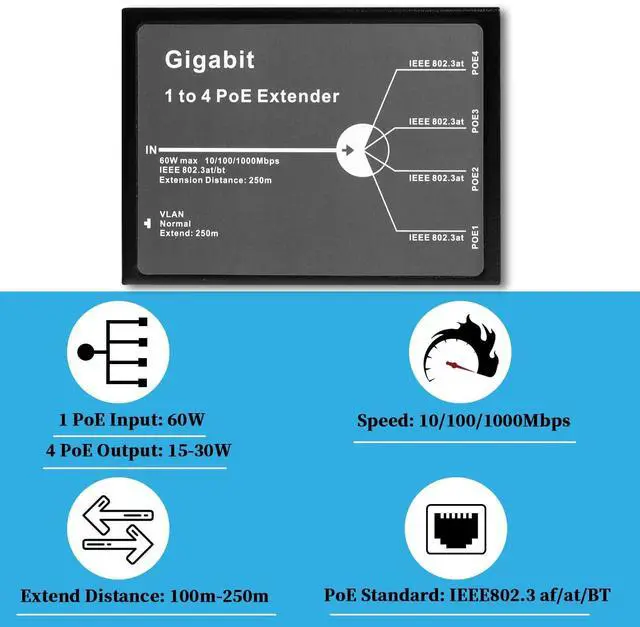

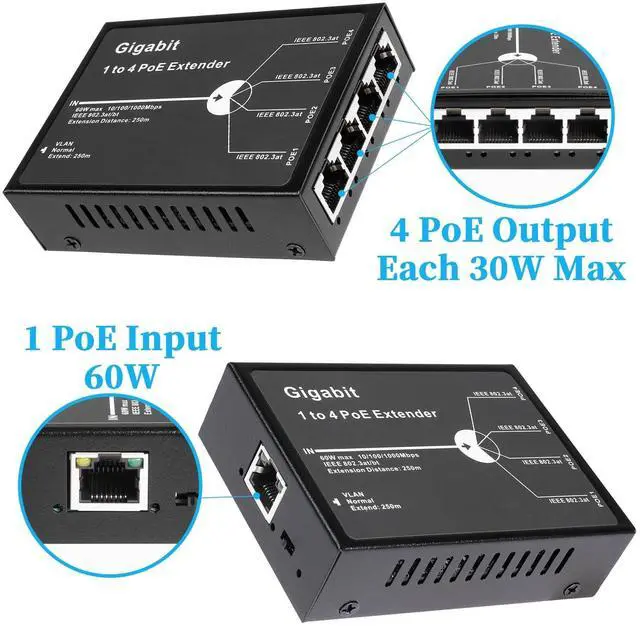

- 1 In 4 Out Features 1 PoE input and 4 PoE output with total 60W power budget. Each PoE port can deliver Max 30W power and Ethernet for PoE terminal device by using network cable (Cat5,Cat5e,Cat6 or better)
- 100m/250m Extension Extend the range of PoE or Network by additional 100m or 250m(Max) by different mode. Extenders can be cascaded to reach up to 1000m

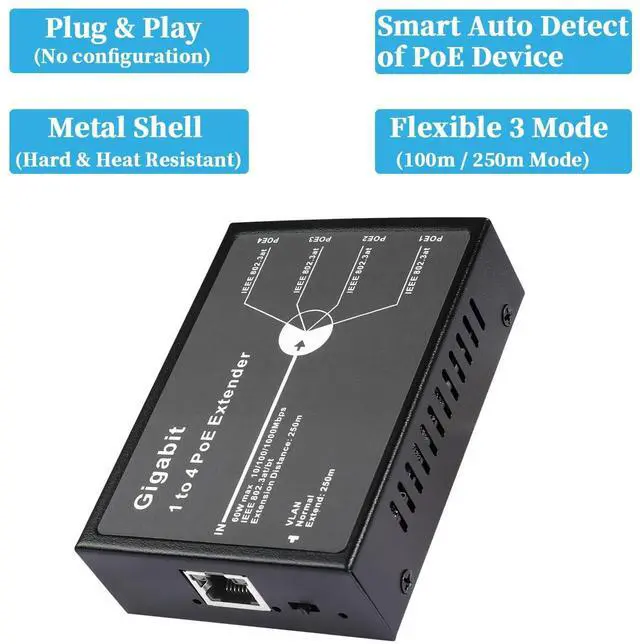

- 3 Mode Available Feature 3 mode for difference scenarios. Normal Mode: 1000Mbps, up to 100m PoE extend; VLAN Mode: 1000Mbps, up to 100M PoE extend; Extend Mode: 10Mbps, up to 250M PoE extend.

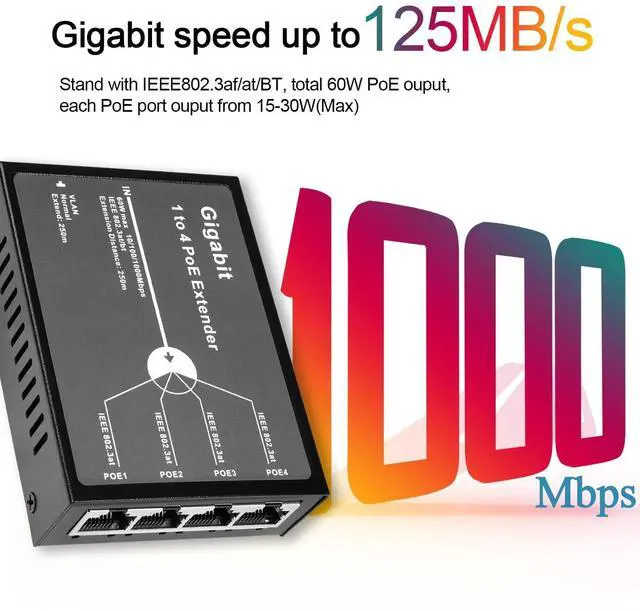

- Gigabit 802.3BT 10/100/1000 Mbps gigabit transfer rate, output comply 802.3at/at/BT standard, detect terminal device and deliver proper power, Max 60W budget need to power by 802.3BT source
- PoE Advantage Easy and cost effective to expend PoE and network layout, don't require local DC power; Plug and play after connecting; Auto detects protection, protect PoE device from being damaged by incorrect installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note: 1. This Extender is not a PoE Switch, it can not work without powered by PoE Switch/PoE injector/PoE NVR. 2. 60W total power budget need to powered by 802.3BT source; 3. To prevent the water seeping into the extender, please keep PoE extender away wet environment; 4. Please don't place any heavy thing on the PoE extender;
Overview: POE5004G-V2 PoE Extender is a cost effective way to extend the PoE or Ethernet network range beyond 100m/250m (Max). Deliver Ethernet (10/100/1000Mbps) and power (30W Max) for PoE terminal device like WLAN AP, PTZ, IP Camera, etc with no require of local power. Comply IEEE 802.3 af/at/BT PoE standard.
Specification: PoE
Input: 1 RJ45
PoE portPoE Output: 4 RJ45
PoE portInput Power: 60W Max ( 802.3BT, PoE++, Hi-PoE)Output
Power: 30W Max ( 802.3 af)Output
Voltage: 48VTransfer
rate: 10/100/1000MbpsNormal
Mode: Max 100M
PoE Extend DistanceVLAN Mode: Max 100M
PoE Extend DistanceExtend Mode: Max 250M
PoE Extend DistanceNetwork Cable: Cat5, Cat5e, Cat6 or betterRepeater
Mode: Store and forwardMAC
Address Table: 8KPacket
Buffer Memory: 126
ByteSwitching Capacity: 8000MbpsPoE
Standard: IEEE 802.3 af/at/BTPower
Supply Type: 1/2+, 3/6-, ModeA, End-SpanNetwork
Protocol: IEEE 802.3 i-10BASE-T, IEEE
802.3 u: 100BASE-TX, IEEE 802.3 x-Flow Control, IEEE 802.3 af/at/BTRegulatory
Compliance: IEEE 802.3 af/at/BT, RoHS Compliant, CE, FCC
Storage Humidity: 5%~90%, No
CondensationOperating temperature:
-3575Dimension: 95 * 70 * 21mm (L*W*H)
Weight: 173gPackage
Include: 1 * 4 Port POE Extender (POE5004G-V2)
Overview: POE5004G-V2 PoE Extender is a cost effective way to extend the PoE or Ethernet network range beyond 100m/250m (Max). Deliver Ethernet (10/100/1000Mbps) and power (30W Max) for PoE terminal device like WLAN AP, PTZ, IP Camera, etc with no require of local power. Comply IEEE 802.3 af/at/BT PoE standard.
Specification: PoE
Input: 1 RJ45
PoE portPoE Output: 4 RJ45
PoE portInput Power: 60W Max ( 802.3BT, PoE++, Hi-PoE)Output
Power: 30W Max ( 802.3 af)Output
Voltage: 48VTransfer
rate: 10/100/1000MbpsNormal
Mode: Max 100M
PoE Extend DistanceVLAN Mode: Max 100M
PoE Extend DistanceExtend Mode: Max 250M
PoE Extend DistanceNetwork Cable: Cat5, Cat5e, Cat6 or betterRepeater
Mode: Store and forwardMAC
Address Table: 8KPacket
Buffer Memory: 126
ByteSwitching Capacity: 8000MbpsPoE
Standard: IEEE 802.3 af/at/BTPower
Supply Type: 1/2+, 3/6-, ModeA, End-SpanNetwork
Protocol: IEEE 802.3 i-10BASE-T, IEEE
802.3 u: 100BASE-TX, IEEE 802.3 x-Flow Control, IEEE 802.3 af/at/BTRegulatory
Compliance: IEEE 802.3 af/at/BT, RoHS Compliant, CE, FCC
Storage Humidity: 5%~90%, No
CondensationOperating temperature:
-3575Dimension: 95 * 70 * 21mm (L*W*H)
Weight: 173gPackage
Include: 1 * 4 Port POE Extender (POE5004G-V2)
