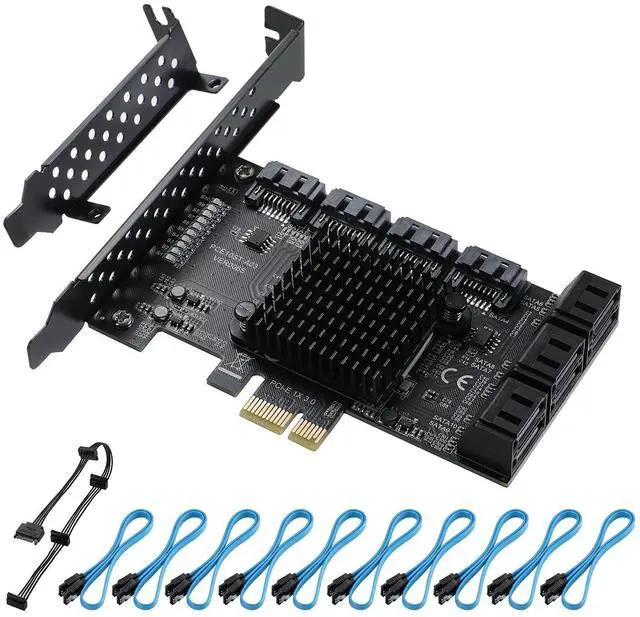

BEYIMEI PCIe 1x SATA Expansion Card (10-Port), 6 Gbps SATA 3.0 Controller PCIe Expansion Card, Non-RAID, Includes Low-Profile Bracket and 10 Data Cables (Chip: ASM1166)
- 10 Ports PCI-E to SATA 3.0This PCIE SATA CARD allows you to add 10 SATA 3.0 6Gbps devices to your computer. No need to drive, plug and play.

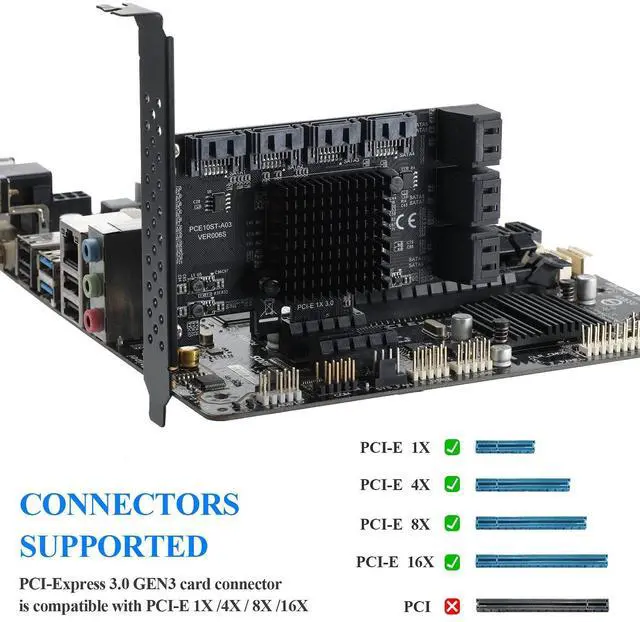

- PCI-Express X1 interfaceCompatible with PCI-Express X1 /X4 /X8 /X16 slots.(Recommended under PCI-E 3.0, faster use)

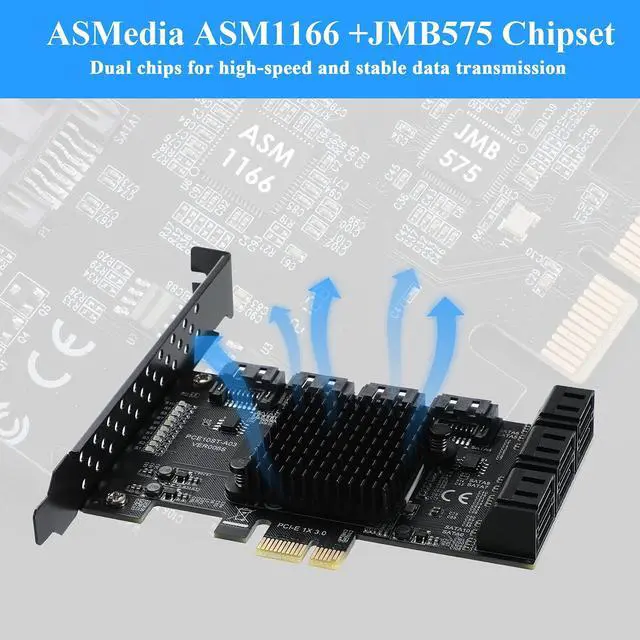

- Powerful chipASMedia ASM1166 Chip, with heat sink, long-lasting high temperature resistance, high-speed and stable transmission.
- System supportCompatible with Windows/8/10/Ubuntu/Linux.Support SATA interface hard disk/optical drive/SSD solid state drive.
- Compatible with SATA 3 (6Gbps), SATA 2 (3Gbps), SATA 1 (1.5Gbps)Comply with PCI-Express 3.0 specification and backward compatible with PCI-Express 2.0.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product name: 10-port
SATA 3.0 expansion cardProduct interface: PCI-E1XProduct
chip: ASM1166Support
system: Windows 8 / Windows10 / Ubuntu /Linux. (Synology can only recognize 4 hard drives; WIN7 users are not recommended to buy)Specification: Comply with Serial ATA 3.0 specification, backward compatible with SATA 2.0 / SATA 1.0C omply with PCI-Express v 3.0 specification and backward compatible with PCI-Express v 2.0 / 1.0. Support 6.0G b/s, 3.0 Gbit/s and 1.5 Gbit/sSupport hot swap. Compatible with SATA6G, 3G and 1.5G hard drivesMotherboard applicable slot
PCI-E 1X and aboveNote: RAID is not supported. The RAID in INTEL only applies to raw SATA. It is an expansion card that cannot support third-party chips.
Speed description information: 1. Use SATA 3.0 data cable to achieve the best results. (We recommend using this SATA 3.0 card in the PCIE 3.0 slot to get the fastest speed. )2. PCI-E requires a slot above V 2.0. For V 1.0, the speed will not exceed 250M. 3.
Motherboard BOIS setting: SATA mode should be changed to AHCI. Although some motherboards are PCIE 2.0 version, BOIS does not enable gen2 high-speed mode by default and needs to be turned on manually. The fastest speed of PCI-E 2.0 is 380-450 m/s. Different computer configurations and SATA SSDs have different speeds. If the detection is incomplete or unstable, please contact us to send the driver.
Packing List: PCIe 1X to 10 Ports SATA 3.0 card *15-port 15pin SATA POWER splitter cable *1Low Profile Bracket *1SATA cable *10
SATA 3.0 expansion cardProduct interface: PCI-E1XProduct
chip: ASM1166Support
system: Windows 8 / Windows10 / Ubuntu /Linux. (Synology can only recognize 4 hard drives; WIN7 users are not recommended to buy)Specification: Comply with Serial ATA 3.0 specification, backward compatible with SATA 2.0 / SATA 1.0C omply with PCI-Express v 3.0 specification and backward compatible with PCI-Express v 2.0 / 1.0. Support 6.0G b/s, 3.0 Gbit/s and 1.5 Gbit/sSupport hot swap. Compatible with SATA6G, 3G and 1.5G hard drivesMotherboard applicable slot
PCI-E 1X and aboveNote: RAID is not supported. The RAID in INTEL only applies to raw SATA. It is an expansion card that cannot support third-party chips.
Speed description information: 1. Use SATA 3.0 data cable to achieve the best results. (We recommend using this SATA 3.0 card in the PCIE 3.0 slot to get the fastest speed. )2. PCI-E requires a slot above V 2.0. For V 1.0, the speed will not exceed 250M. 3.
Motherboard BOIS setting: SATA mode should be changed to AHCI. Although some motherboards are PCIE 2.0 version, BOIS does not enable gen2 high-speed mode by default and needs to be turned on manually. The fastest speed of PCI-E 2.0 is 380-450 m/s. Different computer configurations and SATA SSDs have different speeds. If the detection is incomplete or unstable, please contact us to send the driver.
Packing List: PCIe 1X to 10 Ports SATA 3.0 card *15-port 15pin SATA POWER splitter cable *1Low Profile Bracket *1SATA cable *10
