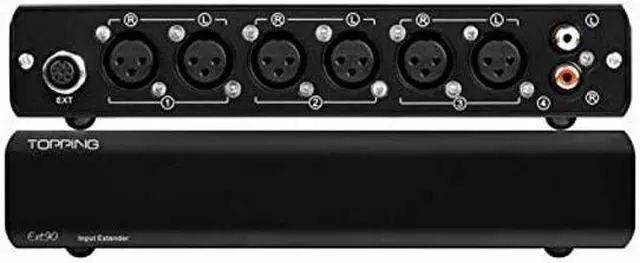

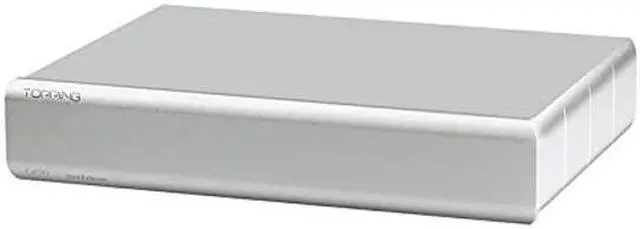

Topping Pre90 Preamplifier & Ext90 Input Extender Hi-Res Audio NFCA Modules 2RCA 4XLR Combination (Silver, Ext90)

Pre90 adopts full balanced structure. The output can be balanced, sin- gle- ended, balanced + single- ended.
With the balanced + single-ended two-way input, in addition to the normal preamplifier usetage
Pre90 can be used for "balanced to sin- gle- ended" orsingle -ended to balanced" signal conversion.
With the help of maximum gain +16 dB, Pre90 could easily amplify the weak input signal to acceptable level of next amplifier.
It is worth men- tioning that since the noise is as low as 0.3uVrms, this step does not bring in audible noise while amplifying the signal.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

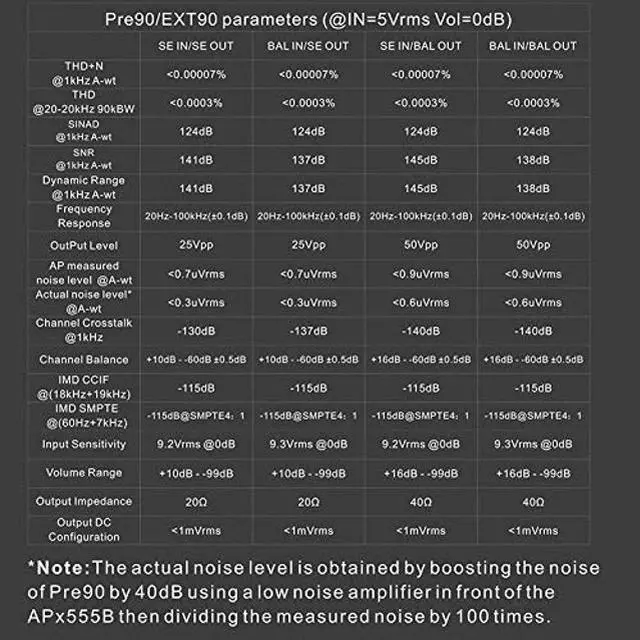

Pre90/EXT90 parameters (@IN= 5Vrms Vol=0dB)
THD+N
SE IN/SE OUT <0.00007%
BAL IN/SE OUT <0.00007%
SE IN/BAL Out <0.00007%
BAL IN/BAL OUT <0.00007%

@1kHz A-wt
SE IN/SE OUT <0.0003%
BAL IN/SE OUT <0.0003%
SE IN/BAL Out <0.0003%
BAL IN/BAL OUT <0.0003%

THD @20-20kHz 90kBW
SE IN/SE OUT124dB
BAL IN/SE OUT124dB
SE IN/BAL Out124dB
BAL IN/BAL OUT124dB

SINAD @1kHz A-wt
SE IN/SE OUT141dB
BAL IN/SE OUT137dB
SE IN/BAL Out145dB
BAL IN/BAL OUT138dB

Dynamic Range @ 1kHz A-wt
SE IN/SE OUT141dB
BAL IN/SE OUT137dB
SE IN/BAL Out145dB
BAL IN/BAL OUT138dB

Frequency Response
SE IN/SE OUT20Hz-100kHz(+ 0.1 dB)
BAL IN/SE OUT20Hz-100kHz(+ 0.1 dB)
SE IN/BAL Out20Hz-100kHz(+ 0.1 dB)
BAL IN/BAL OUT20Hz-100kHz(+ 0.1 dB)

OutPut Level
SE IN/SE OUT25Vpp
BAL IN/SE OUT25Vpp
SE IN/BAL Out50Vpp
BAL IN/BAL OUT50Vpp

AP measured noise level @A-wt:
SE IN/SE OUT <0.7uVrms
BAL IN/SE OUT <0.7uVrms
SE IN/BAL Out <0.9uVrms
BAL IN/BAL OUT <0.9uVrms

Actual noise level*@A-wt:
SE IN/SE OUT <0.3uVrms
BAL IN/SE OUT <0.3uVrms
SE IN/BAL Out <0.6uVrms
BAL IN/BAL OUT <0.6uVrms

Channel Crosstalk @1kHz
SE IN/SE OUT-130dB
BAL IN/SE OUT-137dB
SE IN/BAL Out-140dB
BAL IN/BAL OUT-140dB

Channel Balance:
SE IN/SE OUT+10dB- -60dB ± 0.5 dB
BAL IN/SE OUT+10dB- -60dB ± 0.5 dB
SE IN/BAL Out+16dB- -60dB ± 0.5 dB
BAL IN/BAL OUT+16dB- -60dB ± 0.5 dB

IMD CCIF @( 18kHz+ 19kHz)
SE IN/SE OUT-115dB
BAL IN/SE OUT-115dB
SE IN/BAL Out-115dB
BAL IN/BAL OUT-115dB

IMD SMPTE @(60Hz+ 7kHz)
SE IN/SE OUT-115dB@SMPTE 4:1
BAL IN/SE OUT-115dB @SMPTE 4:1
SE IN/BAL Out-115dB@SMPTE 4:1
BAL IN/BAL OUT -115dB@SMPTE 4:1

Input Sensitivity
SE IN/SE OUT 9.2V rms @0dB
BAL IN/SE OUT 9.3V rms @0dB
SE IN/B
