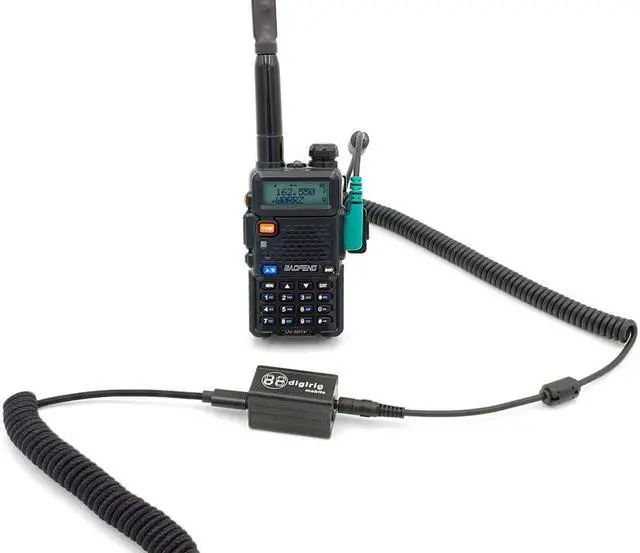

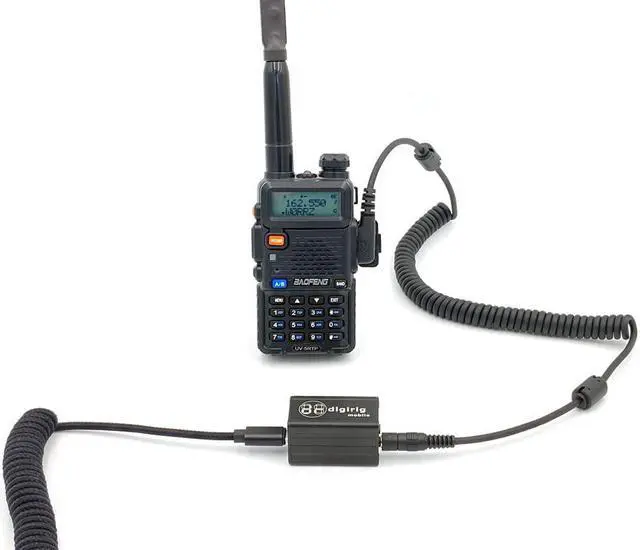

Digirig Mobile Cables for Baofeng HTs

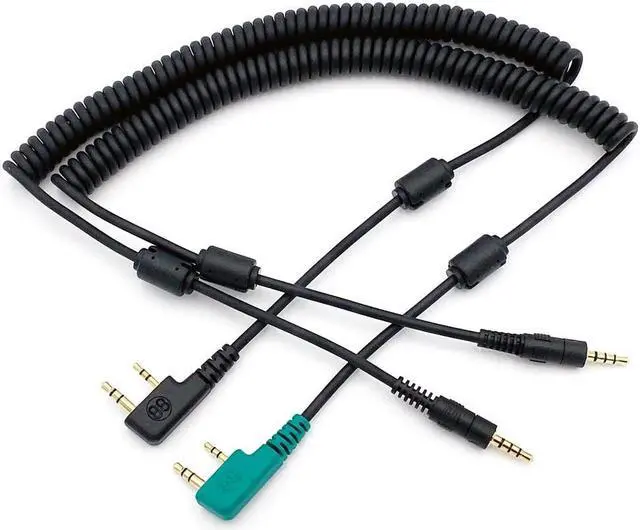

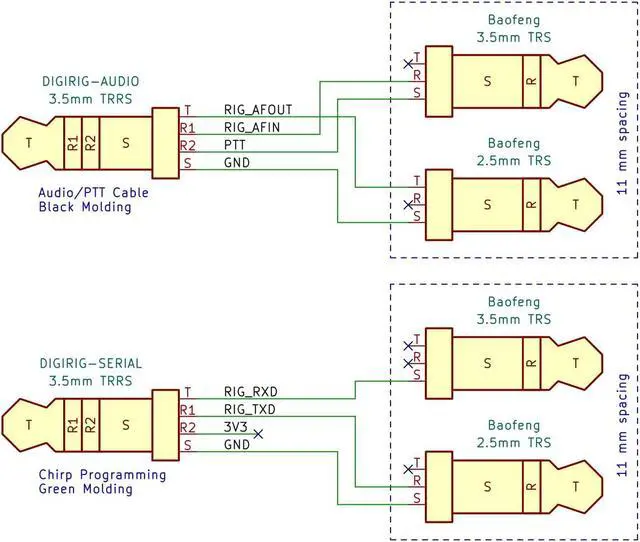

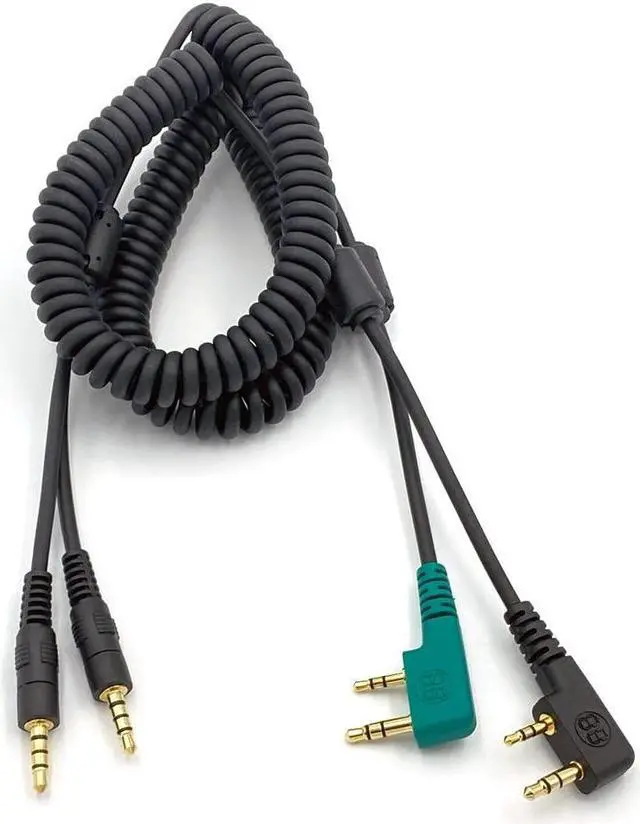

cables work with popular handy talkie (HT) models featuring K1 connector ( 3.5 mm and 2.5 mm TRS connectors) data cable allows digital modes and packet radio protocols as Winlink, VaraFM, Darewolf, FT8, FT4, SSTV, APRS, Echolink, Allstar etc great for working satellites (e. g. APRS and SSTV) data cable (black K1 connector) combines audio and PTT control, plugs into Digirig's audio socket Chirp programming cable (green K1 connector) plugs into Digirig's serial socket coiled cable keeps things nice and tidy by preventing knots and kinks about 24" relaxed, 72" fully stretched shielded and RF choked with ferrite beads on both ends to prevent RFI premium quality materials and craftsmanship
The audio cable requires Digirig Mobile Revision 1.6 or later (any configuration).
Programming cable requires Digirig's CAT port configuration set to logic levels or TX-500.
Other HTs that can be interfaced with the data cable (programming results may vary)
AnyTone Handheld Radio: AT-D868UV, AT-D878UV, AT-878UVII Plus WOUXUN handheld
Radio: KG-UVD1P, KG-679 Kenwood handheld
Radio: TK-3207, TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160, TH-K20 BridgeCom handheld
Radio: BCH-220, BCH-270, D-500, D-30 PUXING handheld
Radio: PX-888, PX-888K, PX-777, PX-333, PX-666, PX-328 QUANSHENG handheld
Radio: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT Linton handheld
Radio: LT-6288, LT-5288, LT-2288, LT-3288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268, LT6188, LT3288 and more
