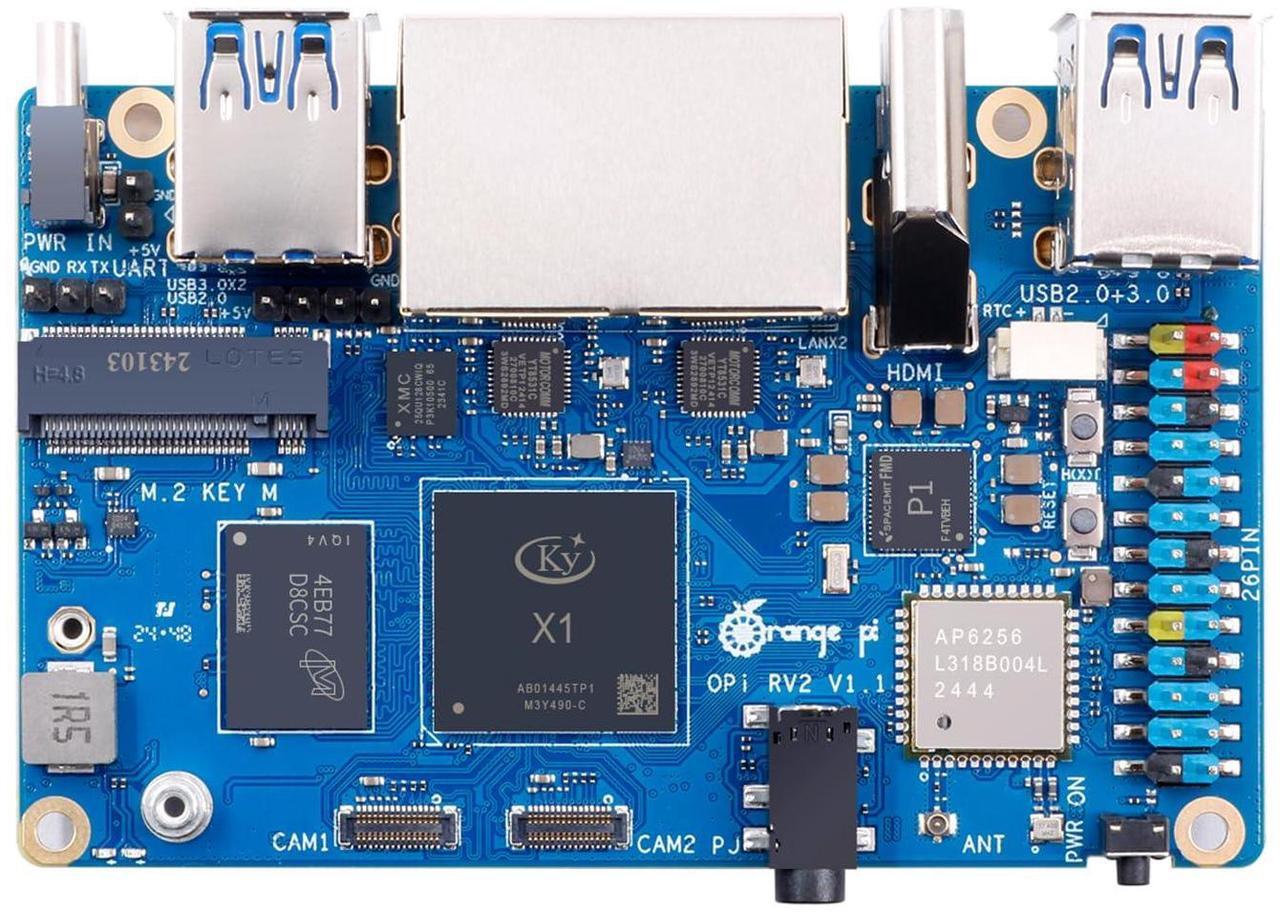

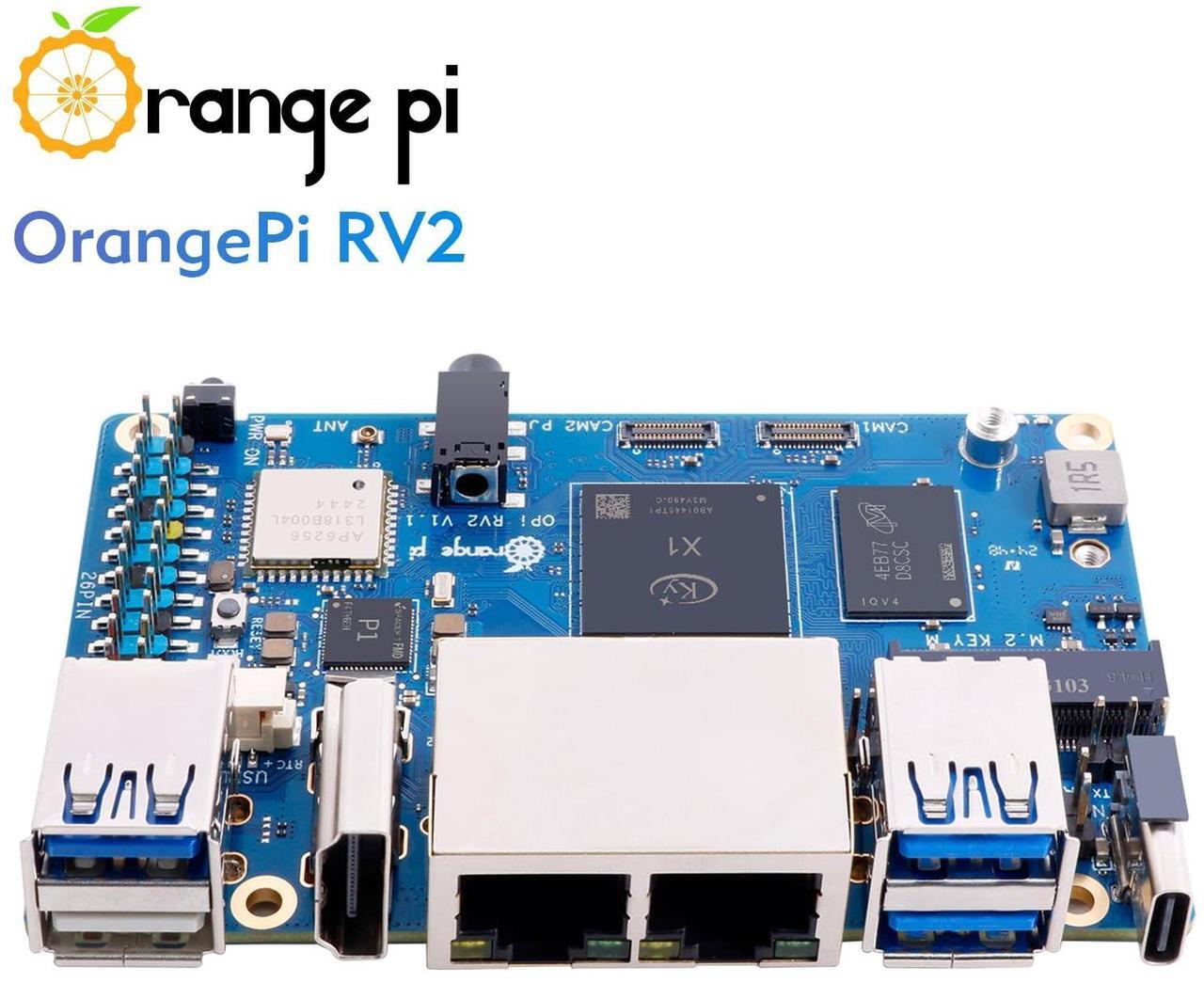

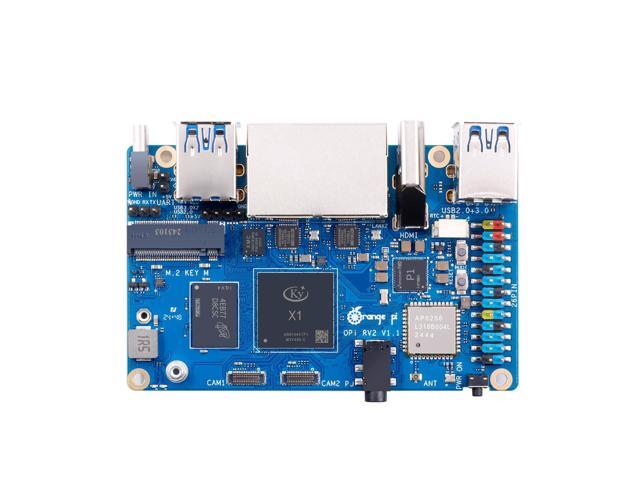

Orange Pi RV2 2GB RAM LPDDR4X RISC V 8 Core 2Tops Al Arithmetic Power Development Board, Wi-Fi 5+BT 5 with BLE Support Single Board Computer Run Ubuntu24.04 (2GB)
- High Performance RISC V AI - Orange Pi RV2 2GB is a cost-effective RlSC-V development board with CPU fusion Al technology architecture, equipped with a RlSC-V octa-core processor with 2TOPS Al arithmetic power fused in the core, which can support the rapiddeployment of Al model algorithms. lt has 8GB LPDDR4X, supports eMMC module(16GB/32GB/64GB/128GB optional), has WiFi 5.0+BT 5.0, with BLE support.
- Leading Arithmetic Energyefficiency - With the streamlined RlSC-V architecture and excellent micro-architecture design, the arithmetic energy efficiency breaks through the process bottleneck, and the power consumption in the same scenario is only 80% of that of ARM A55.

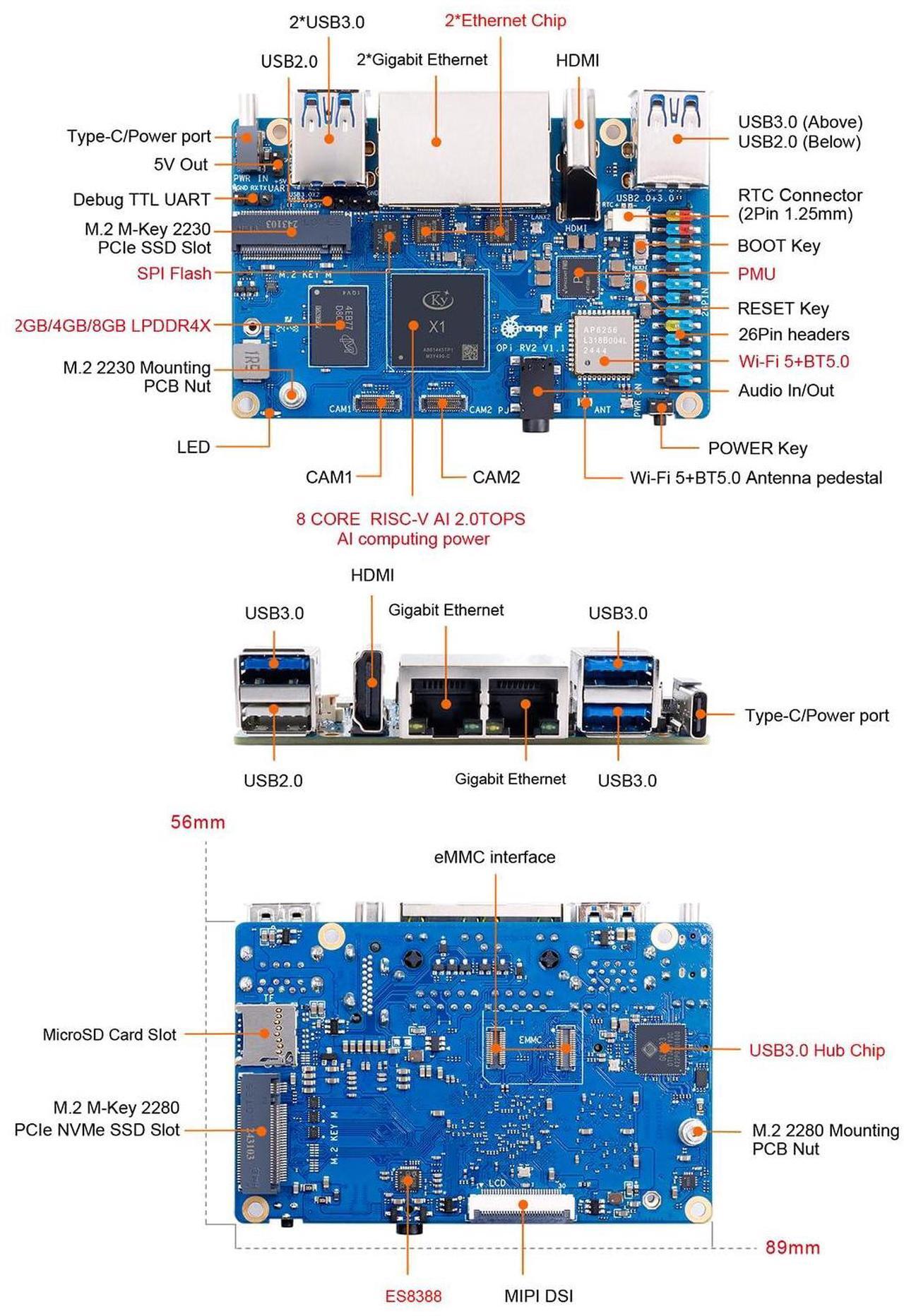

- Rich Ports - Orange Pi RV2 has a rich set of interfaces, including HDM output, GPlO port, USB2.0,USB3.0, PCle2.0 interface, Gigabit LAN port, 3.5mm headphone socket, Gigabit Ethernet interface, Wi-Fi and Bluetooth. MIPDSl, MPlCSl, 26Pin expansion port, equipped with two M.2 M-Key slots (PCle 2.0 2-Lane), supp
+
+
Overview
Specs
Reviews
Hardware Parameters
CPU:
*Ky X1
*8-core RISC-V AI
*2TOPS Al power
Memory:
LPDDR4X: 2GB, 4GB, 8GB
Storage
*eMMC module (optional): 16GB/32GB/64GB/128GBoptional
*SPI FLASH: 128Mb (default), 256Mb optional
*2*M. 2
M-Key SOCKET: PCle 2.0 2 Lane NVMe SSD
*TF Card: Supports SDlO 3.0 TF Card
Wi-Fi + Bluetooth
Wi-Fi+ Bluetooth 2-in-1 Module: AP6256
Wi-Fi 5.0 +BT 5.0, BLE
Ethernet interface
2*Gigabit Ethernet,
PHY Chip: YT8531C-CA
DisplaySupports dual-screen heterodyne display,
up to 1920*1440@60fPS
1*HDMI 2.0
1*4-lane MIP^^ DSI
Camera
2x4-lane MIPl CSl camera interface
USB
1*USB 2.0 HOST or DEVICE
3*USB 3.0 HOST
1*USB 2.0 HOST (4Pin header)
Audio
3.5 mm headphone jack audio input/output
HDMl audio output
Buttons
1*BOOT, 1*RESET, 1*PWR ON
RTC
2Pin spare battery connector (Pitch= 1.25 mm)

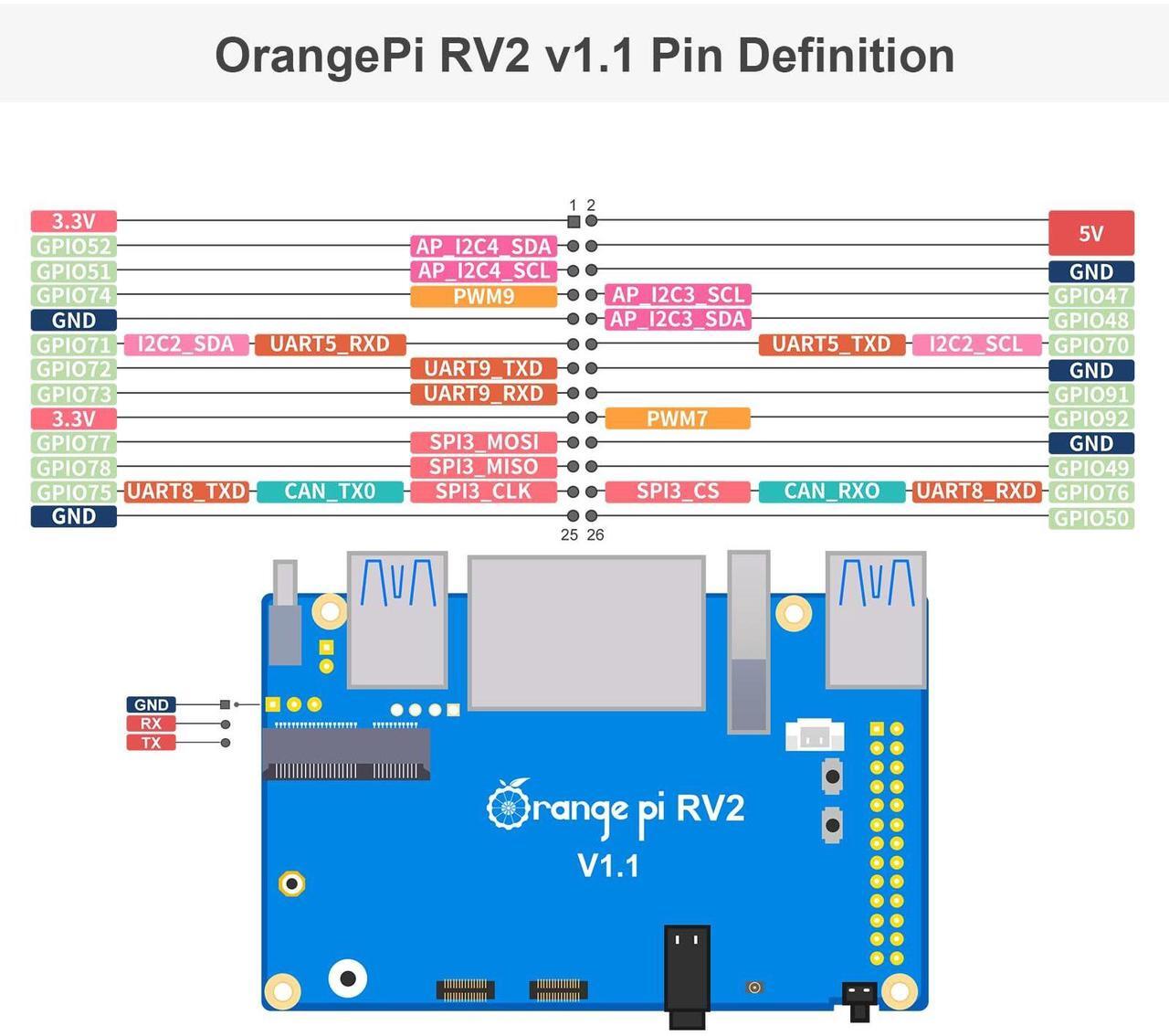

26Pin
26Pin function expansion interface,
supports thefollowing interface types:
GPIO, UART, I2C, SPI, PWM, etc.
DEBUG
3Pin debug serial port, 3.3V level
Power input/output
Power connector: 2Pin. Maximum 5V 1A output, such as
connecting the fan.
Power Supply
Type-C 5V 5A DC IN
Supported OS
Ubuntu 24.04
CPU:
*Ky X1
*8-core RISC-V AI
*2TOPS Al power
Memory:
LPDDR4X: 2GB, 4GB, 8GB
Storage
*eMMC module (optional): 16GB/32GB/64GB/128GBoptional
*SPI FLASH: 128Mb (default), 256Mb optional
*2*M. 2
M-Key SOCKET: PCle 2.0 2 Lane NVMe SSD
*TF Card: Supports SDlO 3.0 TF Card
Wi-Fi + Bluetooth
Wi-Fi+ Bluetooth 2-in-1 Module: AP6256
Wi-Fi 5.0 +BT 5.0, BLE
Ethernet interface
2*Gigabit Ethernet,
PHY Chip: YT8531C-CA
DisplaySupports dual-screen heterodyne display,
up to 1920*1440@60fPS
1*HDMI 2.0
1*4-lane MIP^^ DSI
Camera
2x4-lane MIPl CSl camera interface
USB
1*USB 2.0 HOST or DEVICE
3*USB 3.0 HOST
1*USB 2.0 HOST (4Pin header)
Audio
3.5 mm headphone jack audio input/output
HDMl audio output
Buttons
1*BOOT, 1*RESET, 1*PWR ON
RTC
2Pin spare battery connector (Pitch= 1.25 mm)
26Pin
26Pin function expansion interface,
supports thefollowing interface types:
GPIO, UART, I2C, SPI, PWM, etc.
DEBUG
3Pin debug serial port, 3.3V level
Power input/output
Power connector: 2Pin. Maximum 5V 1A output, such as
connecting the fan.
Power Supply
Type-C 5V 5A DC IN
Supported OS
Ubuntu 24.04
