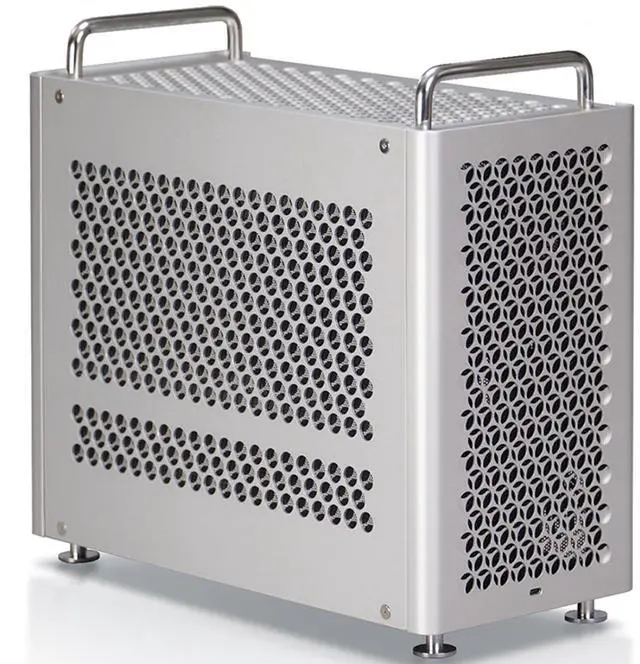

MATX Case, Micro ATX Case B2Pro, Full Aluminum MATX Computer Case Fits MATX/ATX/SFX Power Supply &240 Cooling
- Micro ATX Case B2Pro: 17.8L capacity full aluminum MATX case B2Pro is in a size 14.61x6.61x11.26 inch. The micro ATX chassis adopts silver anodized surface treatment and the case frame is with full aluminum thickness 3.0mm, 2 side panels thickness 2.0mm, other components thickness 1.5mm

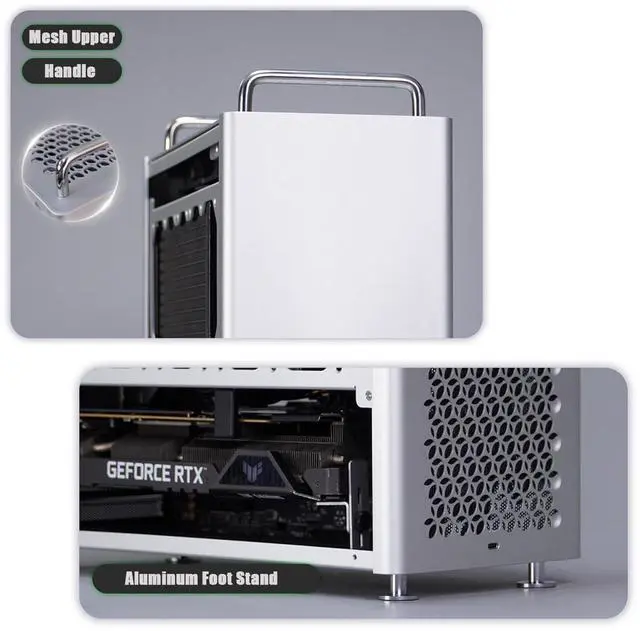

- Unique Exterior Design: The side panels mesh design provides perfect heat dissipation for the chassis. The exquisite foot stand and handle design makes it very convenient for B2Pro to stand and move on the desktop
- Motherboard: MATX(245*245mm) /ITX(170*170mm) ( I/O frame crossing 6mm)
- Power Supply: ATX (length limit 140-170mm), SFX, SFX-L
- Graphics Card: 3-slot GPU with a maximum size 340*142*78mm (including rear panel)
- CPU Cooling and Water Cooling Pump: High tower height limit 135mm, internal cooling pump height 70mm
- Fans: Top 12025*2, Rear window 9025*1, Bottom 12025*2, Side support 120-25*2
- Water Cooling: 240/120 integrated water cooling*1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Supporting
Motherboard: MATX (245*245mm) /ITX (170*170mm) ( I/O frame crossing 6mm)Power
Supply: ATX (length limit 140-170mm), SFX, SFX-L (Pay attention to the conflict between graphics card length and power supply)
Hard Drives: The rear panel can support 3.5" *1 HDD (ITX motherboard) or 2.5" *1-2 SSD or bottom side mounted 3.5" *3 HDD or 2.5" *6 SSD or side mounted 3.5" *1+ 2.5" *1 hard drives or bottom horizontal mounted 3.5" * 1Graphics
Card: 3-slot GPU with a maximum size 340*142*78mm (including rear panel) (Notice: Supports most 4090 and other 40 series GPU. When the power length is 140mm, the graphics card is limited to 340mm in length. When the power length is>140mm but 170mm, the GPU length limit is 270mm and thickness 55mm with a fan or with a horizontal HDD )CPU Cooling and
Water Cooling Pump: High
tower height limit 135mm(Notice: The fan near the memory of the twin towers may protrude due to the height of the memory, please be careful not to exceed the height of the middle 140 fan) Internal cooling pump height 70mmFront interface: 10G/Type-C
* 1Fans: Top fan 12025*2Rear window fan 9025*1Bottom fan 12025*2Side support 2*120-25 fans (CPU radiator height is within 105mm without water cooling)
Water Cooling: 240/120 integrated water cooling*1 (length 283mm, pump height70mm) * water cooling length limit within 278mm (rear window can fit 90-25 fans) * water cooling length limit 285mm (rear window can fit 90-15 fans)Attention should be paid to placing the water-cooled tube on the side of thepower supply(SFX/SFXL) during installationCase
Parameters: Case

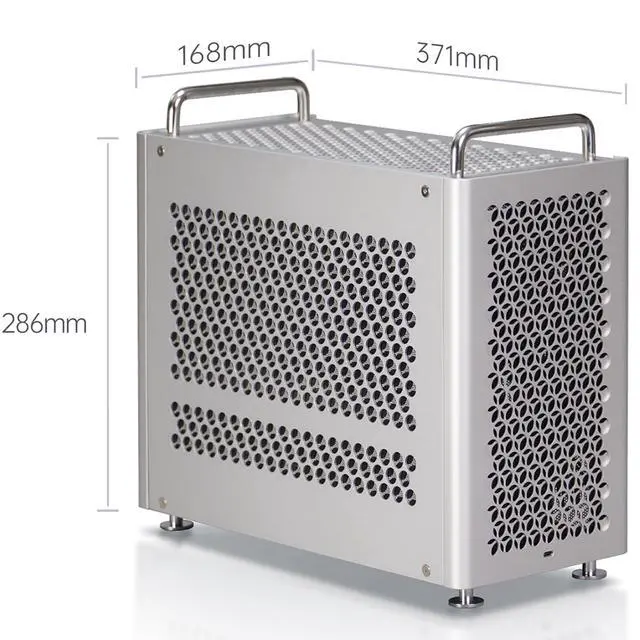

size: 371*168*286mm (Without handle and foot rest)
Case Capacity: 17.8LM
aterial: AL-MG high strength magnesium aluminum alloyCase
Color: Anodized silverFrame
Thickness: 3.0
mmOther components thickness: 1.5 mm2
Side panel thickness: 2.0
mmNet weight: 3.2KGG
ross weight: 4.3KG (including package)
Package Size: 450*240*410mmPackage
Including: B2Pro Case *1Handle*29cm fan dust net * 1Accessory Box * 1PCIE blocking plate * 3Rubber pads*2
Specifications
:Motherboard: MATX (245*245mm) /ITX (170*170mm) ( I/O frame crossing 6mm)Power
Supply: ATX (length limit 140-170mm), SFX, SFX-L (Pay attention to the conflict between graphics card length and power supply)
Hard Drives: The rear panel can support 3.5" *1 HDD (ITX motherboard) or 2.5" *1-2 SSD or bottom side mounted 3.5" *3 HDD or 2.5" *6 SSD or side mounted 3.5" *1+ 2.5" *1 hard drives or bottom horizontal mounted 3.5" * 1Graphics
Card: 3-slot GPU with a maximum size 340*142*78mm (including rear panel) (Notice: Supports most 4090 and other 40 series GPU. When the power length is 140mm, the graphics card is limited to 340mm in length. When the power length is>140mm but 170mm, the GPU length limit is 270mm and thickness 55mm with a fan or with a horizontal HDD )CPU Cooling and
Water Cooling Pump: High
tower height limit 135mm(Notice: The fan near the memory of the twin towers may protrude due to the height of the memory, please be careful not to exceed the height of the middle 140 fan) Internal cooling pump height 70mmFront interface: 10G/Type-C
* 1Fans: Top fan 12025*2Rear window fan 9025*1Bottom fan 12025*2Side support 2*120-25 fans (CPU radiator height is within 105mm without water cooling)
Water Cooling: 240/120 integrated water cooling*1 (length 283mm, pump height70mm) * water cooling length limit within 278mm (rear window can fit 90-25 fans) * water cooling length limit 285mm (rear window can fit 90-15 fans)Attention should be paid to placing the water-cooled tube on the side of thepower supply(SFX/SFXL) during installationCase
Parameters: Case
size: 371*168*286mm (Without handle and foot rest)
Case Capacity: 17.8LM
aterial: AL-MG high strength magnesium aluminum alloyCase
Color: Anodized silverFrame
Thickness: 3.0
mmOther components thickness: 1.5 mm2
Side panel thickness: 2.0
mmNet weight: 3.2KGG
ross weight: 4.3KG (including package)
Package Size: 450*240*410mmPackage
Including: B2Pro Case *1Handle*29cm fan dust net * 1Accessory Box * 1PCIE blocking plate * 3Rubber pads*2
