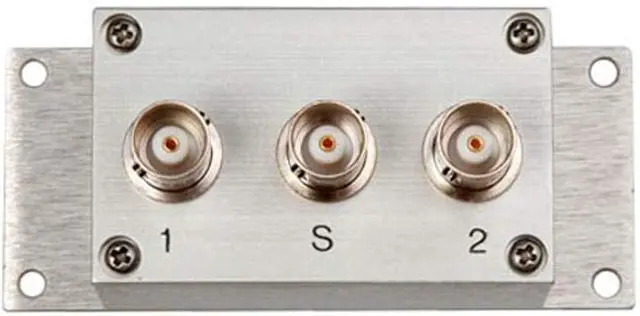

Listen Technologies LA-80 2-Way RF Antenna Combiner; Combines Two Incoming RF Signals into One; Passive, No Power Supply Needed

Listen Technologies LA-80 2-Way RF Antenna Combiner; Combines Two (2) Incoming RF Signals and Combines Them Into One (1) Outgoing Antenna Source; Passive (No Power Supply Needed) The LA-80 is a passive device (no power supply needed) that takes two (2) incoming RF signals and combines them into one (1) outgoing antenna source. The combiner is used in applications where up to two (2) different antenna sources are required and only one (1) antenna output is available or desired.
Key Features: - Combines two (2) incoming RF signals and combines them into one (1) outgoing antenna source- Passive (no power supply needed) - Works with 72, 216 or 863 MHz- Light weight- Mountable- Labeled for ease of use-
Includes: One (1) LA-80 2-Way RF Antenna Combiner, One (1)
Instruction sheetSpecifications: -
Connector/s: BNC-
Frequency Range: 10 to 1000MHz-
Input/s: 2-
Output/s: 1-
Impedance: 50 Ohm-
Power Loss: 3dB for every two (2) combined signals-
Phase: 0-
Input RF Power Rating: 1W-
Temperature Operation: -10C (14F) to +40C (104F) -
Temperature Storage: -55C (-67F) to +100C (212F) -
Dimensions (HxWxD): 3.25" x 1.25" x 2.75" (82 x 32 x 69 mm) -
Weight: 4 ouunces. ( 0.1 kg)-
Shipping Weight: 1 pounds ( 0.5 kg)-
Safety: RoHS
