$257.99
Most customers receive within 5-9 days.
Meet Your Seller

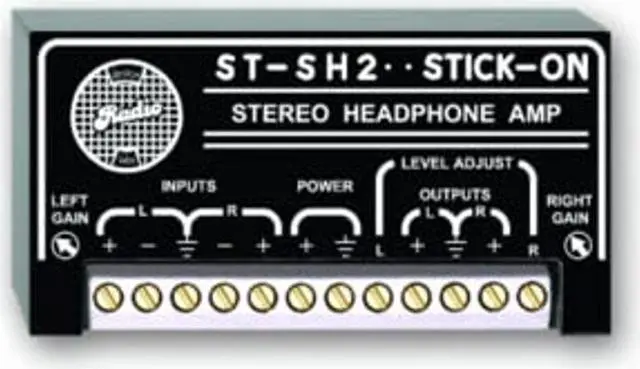

RDL ST-SH2 Stereo Headphone Amplifier - Stick-ON Series
- Stereophonic Headphone Amplifier
- Provision for External Stereo Level Control
- Balanced or Unbalanced Input
- Bridge a Line and Feed Headsets
- Amplifier To Drive High or Low Impedance HeadsetsSpecifications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Inputs (2): 10 kO balanced or unbalanced, bridgingInput
Signal: -20 dBu (-22 dBV) to +6 dBu (for normal output level: +4 dBu, 100?? ) -10 dBu to +16 dBu (for 250 mW, 8 O output)Output
Load Impedance: 8 O to 5 kO (drives low or high impedance headphones)
Output Signal (normal rated): +4 dBu into 100
OOutput Signal (maximum): 250 mW into 8 O, 20
Vp-p into 2 kOTHD+N: < 0.005 % ( 0.0015 % typical @ 1 kHz)Frequency
Response: 20 Hz to 40 kHz (+/- 0.25 dB)Noise: <-100 dB below normal operating levelTotal
Dynamic Range: 115
dBGain: Adjustable from -2 to 24 dBCMRR: 50 dB at 100
HzCrosstalk: <-65 dB (10 Hz to 20 kHz); <-80 dB @ 1 kHzPower
Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 200 mAAmbient
Operating Environment: 0 C to 55 C
Signal: -20 dBu (-22 dBV) to +6 dBu (for normal output level: +4 dBu, 100?? ) -10 dBu to +16 dBu (for 250 mW, 8 O output)Output
Load Impedance: 8 O to 5 kO (drives low or high impedance headphones)
Output Signal (normal rated): +4 dBu into 100
OOutput Signal (maximum): 250 mW into 8 O, 20
Vp-p into 2 kOTHD+N: < 0.005 % ( 0.0015 % typical @ 1 kHz)Frequency
Response: 20 Hz to 40 kHz (+/- 0.25 dB)Noise: <-100 dB below normal operating levelTotal
Dynamic Range: 115
dBGain: Adjustable from -2 to 24 dBCMRR: 50 dB at 100
HzCrosstalk: <-65 dB (10 Hz to 20 kHz); <-80 dB @ 1 kHzPower
Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 200 mAAmbient
Operating Environment: 0 C to 55 C
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: non-replaceable
- This item is covered by JMDesign Return Policy
