Vanco 4K HDMI Extender

The Evolution by Vanco EV4K2006 HDMI Extender over Single Cat5e/ 6 with Bi-directional IR, auto EDID/ EQ, and Bi-directional PoE extends 4K ultra high definition video with HDR and audio signals, IR, and power.
Extends 4K@60Hz,
4:4: 4 Chroma Subsampling and HDR up to 164ft/ 50m, and 4K@30Hz, 4:4: 4 Chroma Subsampling, and HDR up to 130ft/ 40m. Bidirectional Power over Ethernet (PoE) Technology transmits power over Cat5e/ 6, allowing either the Transmitter or Receiver to be powered without the use of a power supply. No EDID or EQ adjustments are necessary as the units automatically adjusts for compatibility and gain. This extender set also features a newly redesigned slim and compact chassis for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats and is HDCP compliant. In addition, bi-directional IR pass-through allows for source or display control. For extending HDMI over a single Cat5e/ 6 with IR at a long distance, with Power over Ethernet, the EV4K2006 is a great plug and play solution!

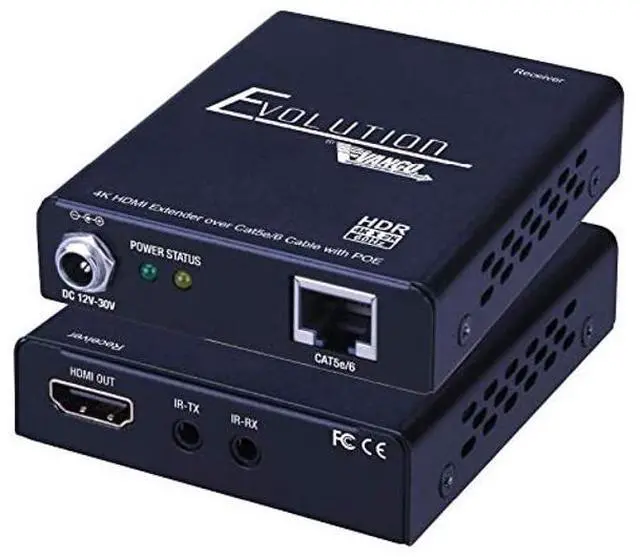

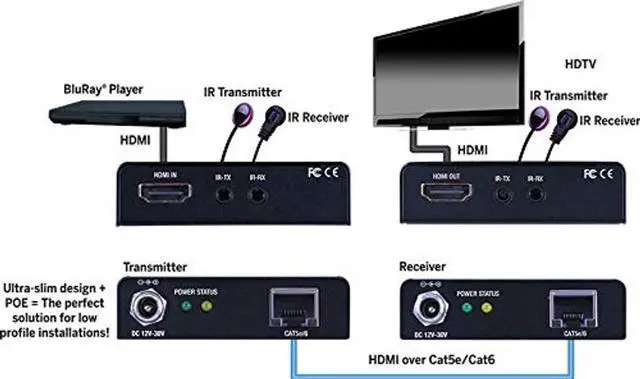

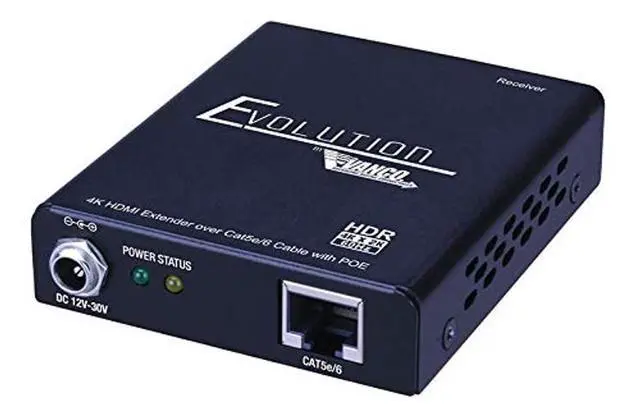

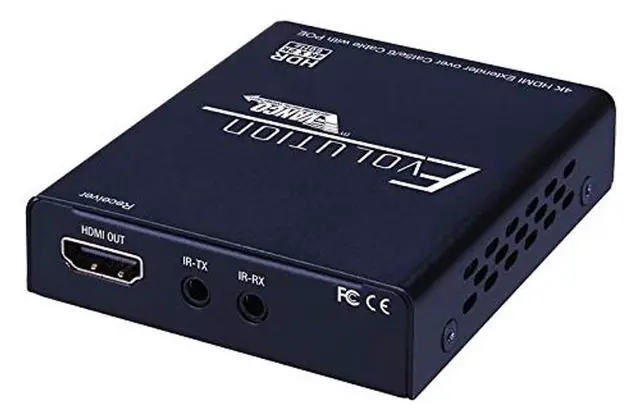

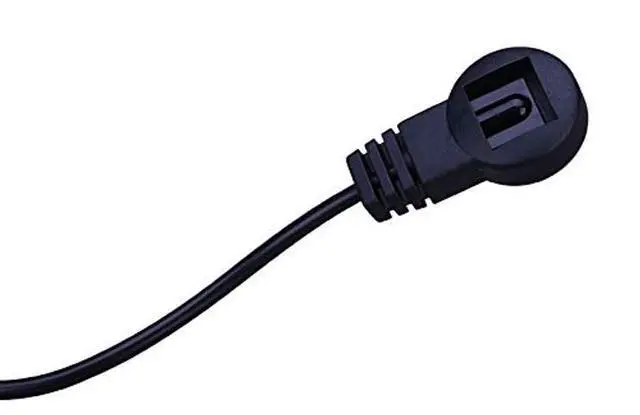

The EV4K2006 includes two units: transmitting unit (EV4K2006-TX) and receiving unit (EV4K2006-RX). The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/ 6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The EV4K2006 offers the most convenient solution for HDMI extension over a single Cat5e/ 6 with Power over Ethernet and is the perfect solution for any application. Package Contents 1 x Transmitter 1 x Receiver 2 x IR Blasters (TX) 2 x IR Receivers (RX) 1 x DC 12V In Line Power Supply Product Manual
