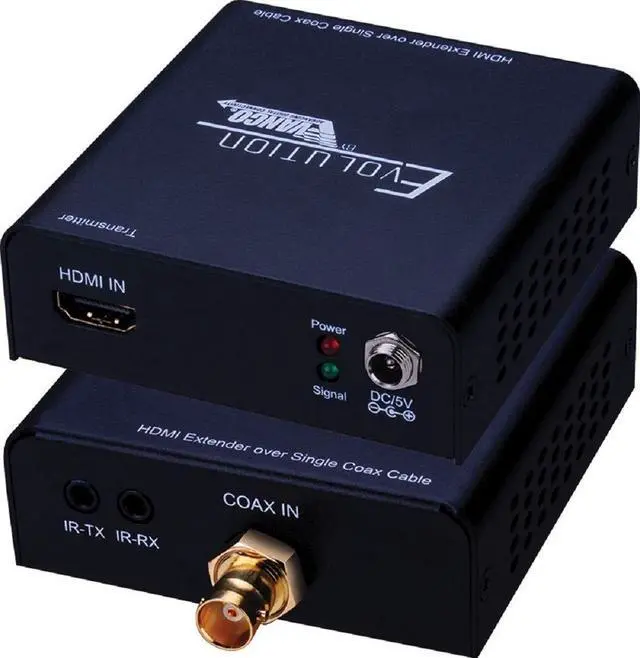

Vanco EVEX2004 Evolution HDMI Over Single Coax Extender, Supports Up to 1080p/60 High Definition Resolution, Works with HDMI and HDCP Compliant Devices, 7.1-Channel Audio Supported

Vanco EVEX2004 Evolution HDMI over Single Coax Extender, Supports Up to 1080p/60 High Definition Resolution, Works with HDMI and HDCP Compliant Devices, 7.1 -channel Audio SupportedThe Evolution by Vanco EVEX2004 HDMI Extender over Single Coax with Bi-directional IR extends high definition video and audio signals and IR, at a distance of up to 394ft/120m over RG6 coaxial cable, and 164ft/50m over RG59 coaxial cable. Features Bi-directional IR, which allows for control of the source or display. Also features EDID management, which allows and encourages source and display "handshake" for seamless integrationKey
Features: - Allows HDMI audio/video signals to be transmitted using a single coaxial cable- Wide band Bi-directional IR system (20KHz to 60KHz) allowing for control of source or display-
Transmission Range: Extends 1080p resolution up to 394ft/120m over RG6 coaxial cable (dual and quad-shielded); Extends 1080p resolution up to 164ft/50m over RG59 coaxial cable- Works with HDMI and HDCP compliant devices- Supports up to 1080p High Definition resolution- Compact design with mounting ears included, for an easy and flexible installation- Fully compatible with any Evolution by
Vanco productSpecifications: -
HDCP Compliance: Yes-
Video Bandwidth: Single-link 225MHz [ 6.75G bps]-
Video Support: 480i / 720p / 1080i / 1080p60 (Does NOT support 480) -
Transmission Range: HD [1080p 24-bit color] - up to 120m [394ft]-
HDMI Equalization: Auto-
Input TMDS Signal: 1.2 Volts (peak to peak) -
Input: (TX) 1xHDMI + 1x 3.5 mm; (RX) 1xBNC + 1x 3.5 mm-
Output: (TX) 1xBNC + 1x 3.5 mm; (RX) 1xHDMI + 1x 3.5 mm-
HDMI connector: Type A 19 pin female- 3.5 mm connector: (TX and RX) IR Receiver/
IR blaster- Housing: Metal enclosure-
Power supply: (2) 5V2A-
Dimensions (WxHxD): 3.35 x 1.1 x 3.19 inches
