101AV IPS Touch Screen Security Camera CCTV 7" 7in1 Test Monitor Support IP cam, Standard Analog Camera (CVBS) & HD TVI/AHD/CVI Camera up to 8MP, HDMI Output up to 3840x2160P,Smart Charge 2.5 Hours
- 7 inch IPS touch screen, 1920x1200 resolution, Support coaxial HD 4.0 8MP TVI/CVI/AHD, SDI/EX-SDI, 4K H.265 IP, CVBS camera test, H.265/H.264, 4K video display via mainstream
- Work with ONVIF IP camera test, auto view video and create testing report , Support ONE SCREEN TWO WINDOWS DISPLAYS. IP camera and analog camera pictures can be shown at the same time.
- Built in WIFI, create WIFI hotspot, 10/100/100M Ethernet, network state and traffic display, RJ45 cable TDR test, cable quality test. Also support IP discovery, shortcut button, drop-down menu, UTP cable tester
- Support Quick office (excel ,word ,PPT format ) doc. Tester Play: Tester, android version mobile phone, PC display at the same time, HDMI signal output 3840*2160P, support 1080p display image, record and snapshot
- DC12V 3A, DC48V PoE power output, power measurement, Lithium Ion Polymer 7.6V/7500mAh Battery, working time lasts 11 hours, Smart battery charge time only 2.5 hours
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
101 Audio Video Inc.
101 Audio Video Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

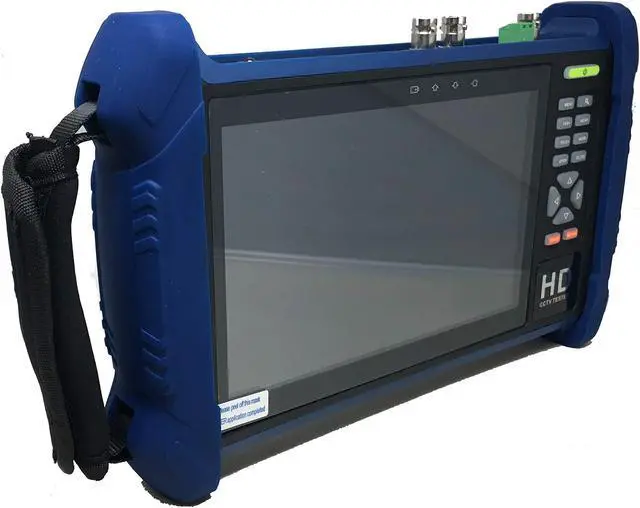

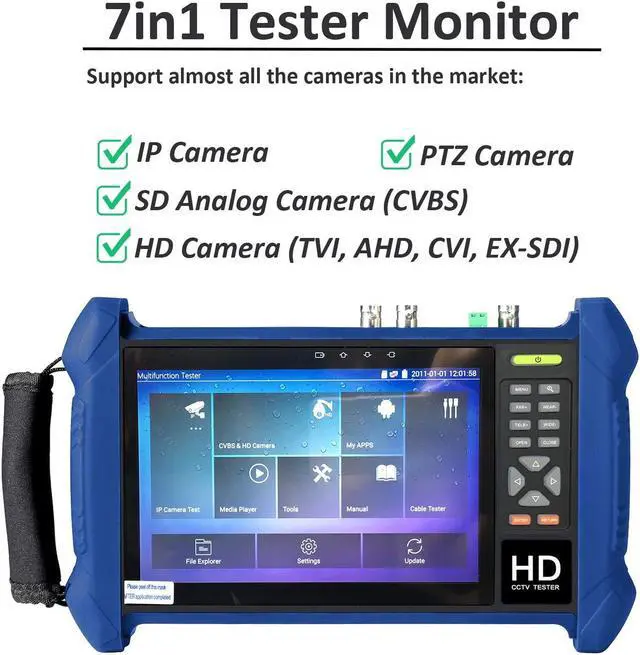

The model TM-R1710-8M is a multi-function CCTV IP&HD tester monitor, which can resolve project problems and make the installation process quicker and more efficient. It is developed for the installation and maintenance of video monitoring system. Utilizing a visual and functional OSD menu, it supports IP camera, Standard 960H Camera & Analog HD 4.0 8MP TVI/AHD/CVI/SDI/EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.
Feature
7" touch screen, 1920x1200 resolutions
7.6 V /7500mAh Lithium Ion Polymer Battery, Smart
Charge: only 2.5 hours charging, working time lasts 11 hours
Compatible with almost all models' IP cameras.
Support coaxial HD TVI/ AHD/ CVI/ EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back
Built-in WIFI, Support wireless WIFI hotspots. 10/100M Lan Port, H. 265/H. 264, 4K video display via mainstream.
PoE DC48V power output, Max power 24W; Support 12V /3A DC and 5V/2A power output.
Support ONE SCREEN TWO WINDOWS DISPLAYS. IP camera and analog camera pictures can be shown at the same time.
Built in IP SCANNING APP, auto-scan the whole network segment IP, and auto-modify tester's IP address.
UTP cable, telephone cable's sequence & connectivity test.
POE/DC12V power measurement.

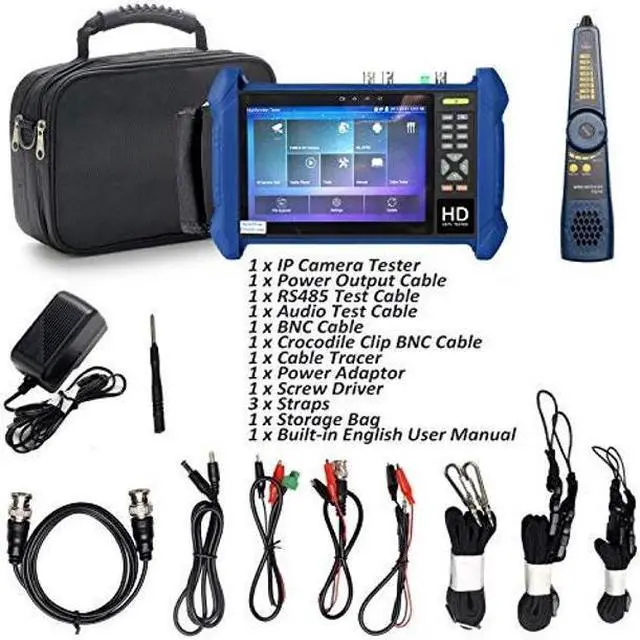

What's in the Box?
7" Touch Scree Tester, (Power Output, Audio Test, BNC, and Crocodile Clip BNC Cable), Cable Tracer, Power Adaptor, Screw Driver, Straps, Storage Bag
#CCTV monitor, Security monitor, Security displays, BNC monitor, VGA monitor, Security screen, Security camera monitor, Analog monitor, DVR monitor, NVR monitor, CCTV camera monitor, Remote viewing monitor, Access control monitor, Alarm monitor, Monitoring monitor.
101 Audio Video Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.
The model TM-R1710-8M is a multi-function CCTV IP&HD tester monitor, which can resolve project problems and make the installation process quicker and more efficient. It is developed for the installation and maintenance of video monitoring system. Utilizing a visual and functional OSD menu, it supports IP camera, Standard 960H Camera & Analog HD 4.0 8MP TVI/AHD/CVI/SDI/EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.
Feature
7" touch screen, 1920x1200 resolutions
7.6 V /7500mAh Lithium Ion Polymer Battery, Smart
Charge: only 2.5 hours charging, working time lasts 11 hours
Compatible with almost all models' IP cameras.
Support coaxial HD TVI/ AHD/ CVI/ EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back
Built-in WIFI, Support wireless WIFI hotspots. 10/100M Lan Port, H. 265/H. 264, 4K video display via mainstream.
PoE DC48V power output, Max power 24W; Support 12V /3A DC and 5V/2A power output.
Support ONE SCREEN TWO WINDOWS DISPLAYS. IP camera and analog camera pictures can be shown at the same time.
Built in IP SCANNING APP, auto-scan the whole network segment IP, and auto-modify tester's IP address.
UTP cable, telephone cable's sequence & connectivity test.
POE/DC12V power measurement.
What's in the Box?
7" Touch Scree Tester, (Power Output, Audio Test, BNC, and Crocodile Clip BNC Cable), Cable Tracer, Power Adaptor, Screw Driver, Straps, Storage Bag
#CCTV monitor, Security monitor, Security displays, BNC monitor, VGA monitor, Security screen, Security camera monitor, Analog monitor, DVR monitor, NVR monitor, CCTV camera monitor, Remote viewing monitor, Access control monitor, Alarm monitor, Monitoring monitor.
