2Pcs ESP32 LoRa V3 LoRa32 OLED Development Board 0.96inch OLED Display CP2102 915MHz Antenna Transceiver and Protective Case for Lora Board Compatible with Arduino ESP8266 NodeMCU IOT Smart Home

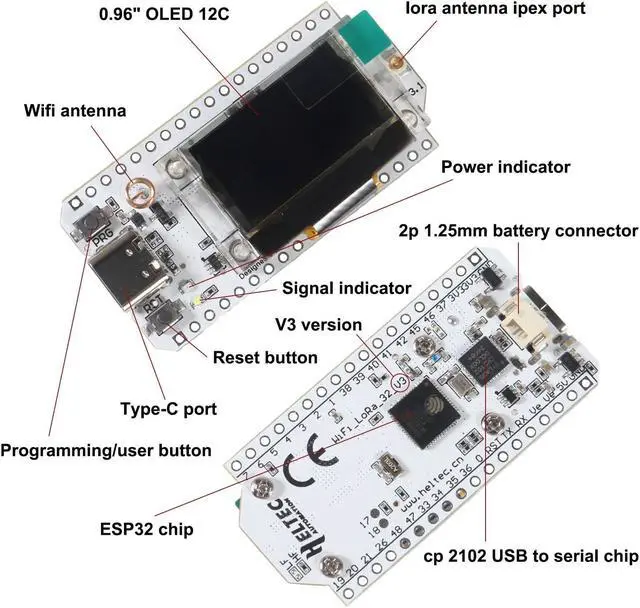

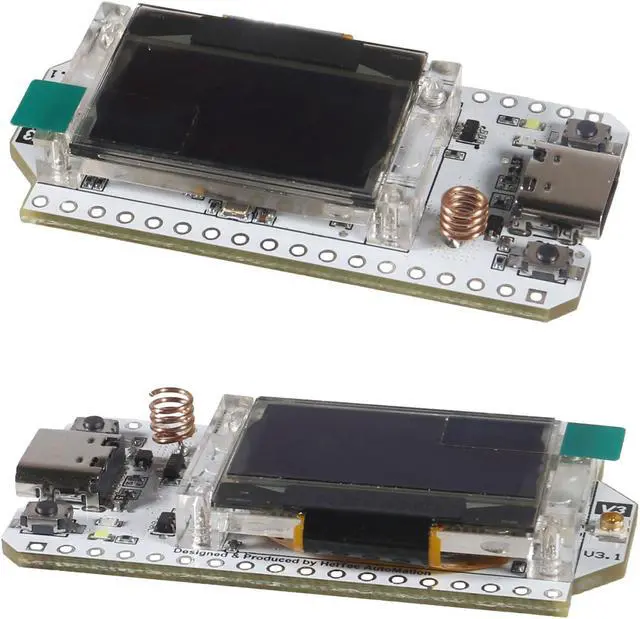

- ESP32 on-board display unit is a 0.96inch 128 * 64 dot-matrix OLED display that can be used to display debugging information, battery power, and other information
- Type C type USB interface, equipped with complete voltage regulator, ESD protection, short circuit, circuit protection, RF shielding, and other protection measures.

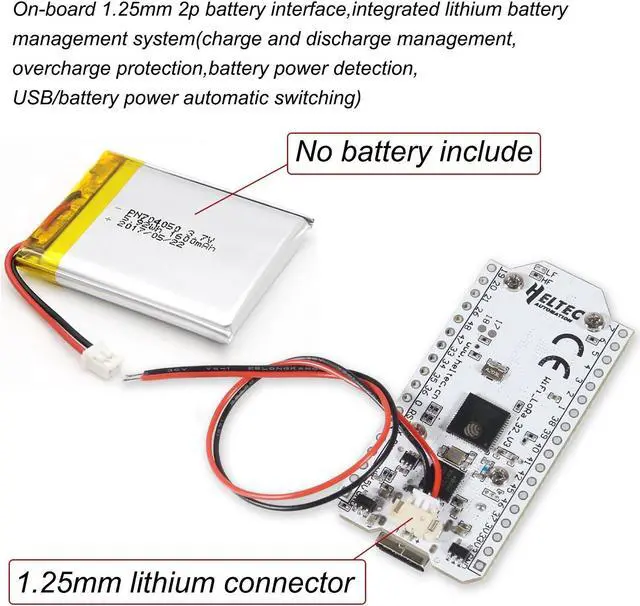

- On-board SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switch).
- Integrated CP2102 USB turn serial port chip, convenient program download, debugging information printing.
- It is the best choice for smart city, farm, home, industrial control, housing security, wireless meter reading, and Internet of Things developers.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The LoRa chipset: SX1262
USB to serial chip: CP2102
Frequency: 433~510MHz; 863~928 MHz
Maximum emission power: 21 +- and 1 dBm
Maximum reception sensitivity: -139 dBm
Wi-Fi: 802.11 b / g / n with a maximum of 150Mbps
Bluetooth: Bluetooth5
Bluetooth LE: Bluetooth grid
Battery: 3.7V lithium battery power supply and charging

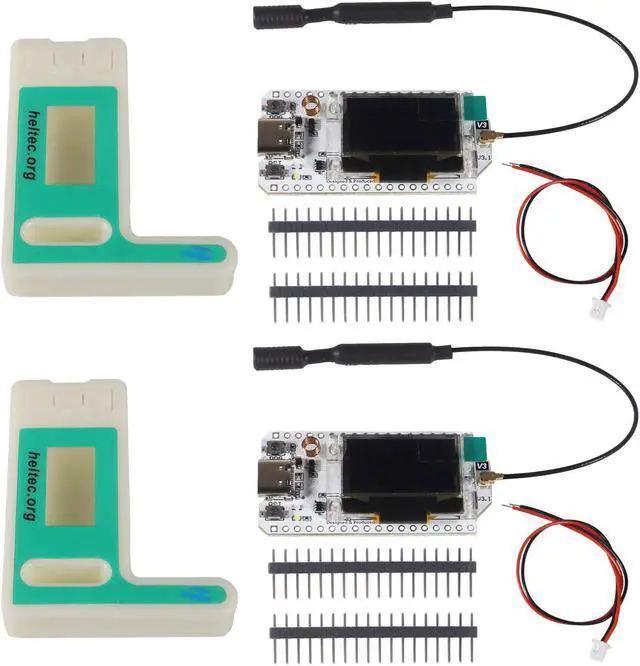

Package include:
2 x LoRa 32 V3 node development board
2 x Connector antenna
4 x Pin
2 x SH 1.25 -2 cable
2 x Case for LoRa 32 V3 node development board
USB to serial chip: CP2102
Frequency: 433~510MHz; 863~928 MHz
Maximum emission power: 21 +- and 1 dBm
Maximum reception sensitivity: -139 dBm
Wi-Fi: 802.11 b / g / n with a maximum of 150Mbps
Bluetooth: Bluetooth5
Bluetooth LE: Bluetooth grid
Battery: 3.7V lithium battery power supply and charging
Package include:
2 x LoRa 32 V3 node development board
2 x Connector antenna
4 x Pin
2 x SH 1.25 -2 cable
2 x Case for LoRa 32 V3 node development board
