UTEK RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail) 4 Port RS485 HUB Adapter
- RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail).
- Standards: RS-232C?RS-485 EIA/TIA.
- Interface: RS-232C: 10 bits terminal block,RS-485: 10 bits terminal block.
- Transmission media: twisted-pair or shielded cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:

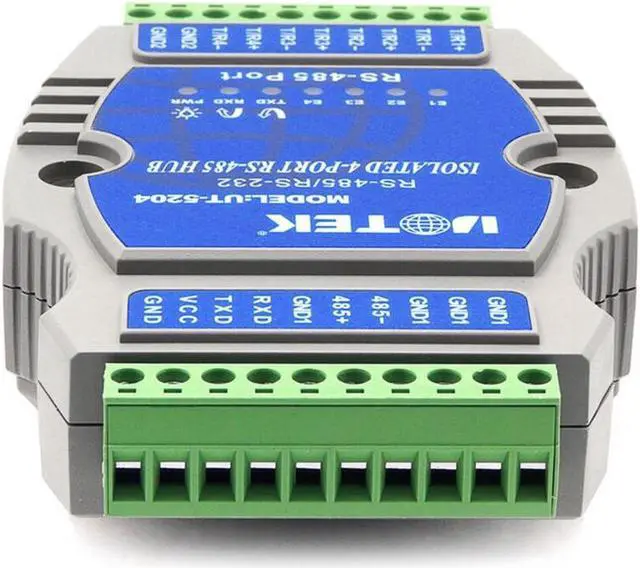

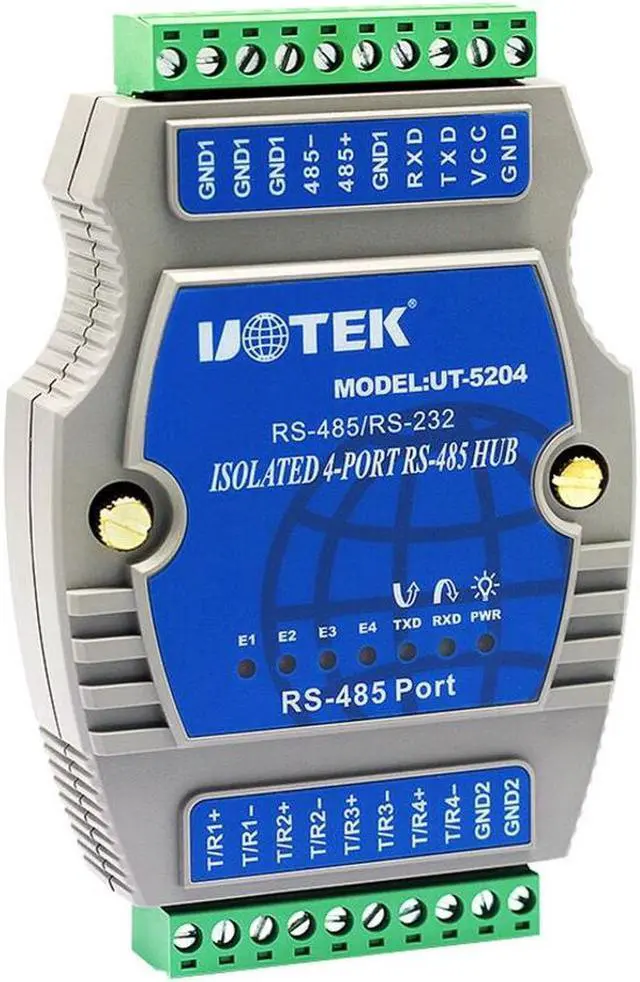

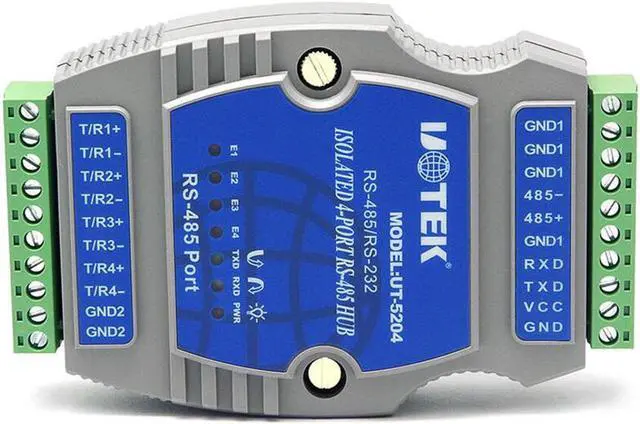

RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail)
Specification model: UT-5204
Standards: RS-232C? RS-485 EIA/TIA
Interface: RS-232C: 10 bits terminal block
RS- 485: 10 bits terminal block
Transmission media: twisted-pair or shielded cable
Working mode: asynchronous half-duplex
Operating power: 9-30VDC/350mA
LEDs for indicating PWR TXD, RXD, and E1-E4 activity
Isolated voltage 2, 500VRMS 500 DC, DC/DC module
Baudrate: 300bps- 115.2 kbps
Protection level: RS-232 ±15KV ESD protection
RS-485 provides with 600W lightning, surge protection each line
Transmission distance: 0-5, 000m (115, 200-300bps)

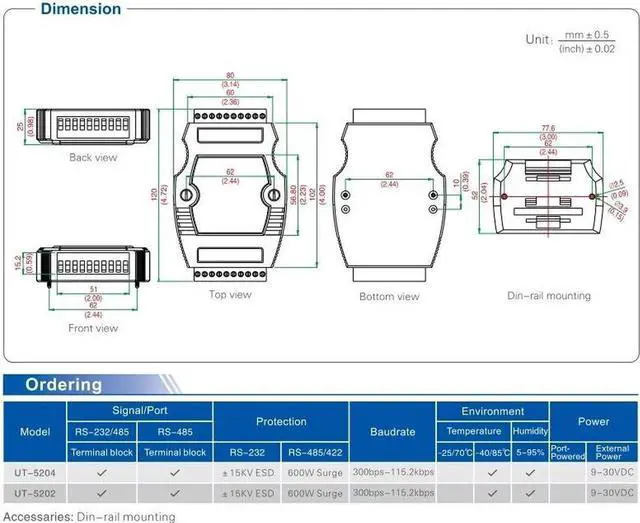

Dimension: 120mm×80mm×25mm
Operating temperature: -40? to 85?
Relative humidity: 5% to 95%
Work with all communication software, plug & play

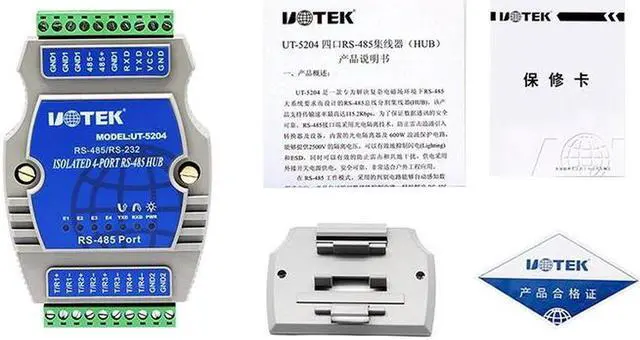

Package Included:
1 x RS-232/RS-485 to 4 Ports RS-485 Hub
RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail)
Specification model: UT-5204
Standards: RS-232C? RS-485 EIA/TIA
Interface: RS-232C: 10 bits terminal block
RS- 485: 10 bits terminal block
Transmission media: twisted-pair or shielded cable
Working mode: asynchronous half-duplex
Operating power: 9-30VDC/350mA
LEDs for indicating PWR TXD, RXD, and E1-E4 activity
Isolated voltage 2, 500VRMS 500 DC, DC/DC module
Baudrate: 300bps- 115.2 kbps
Protection level: RS-232 ±15KV ESD protection
RS-485 provides with 600W lightning, surge protection each line
Transmission distance: 0-5, 000m (115, 200-300bps)
Dimension: 120mm×80mm×25mm
Operating temperature: -40? to 85?
Relative humidity: 5% to 95%
Work with all communication software, plug & play
Package Included:
1 x RS-232/RS-485 to 4 Ports RS-485 Hub
