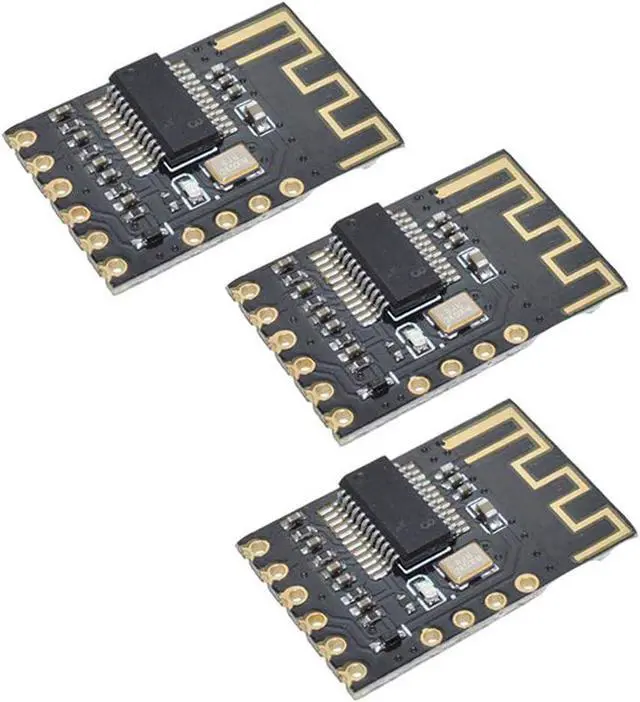

3pcs M18 Wireless Bluetooth MP3 Audio Receiver Board BLT 4.2 mp3 Lossless decoder Bluetooth 4.2 Audio Receiver Board Wireless Stereo Sound Module
Limited time offer, ends 11/14 By EnYZME

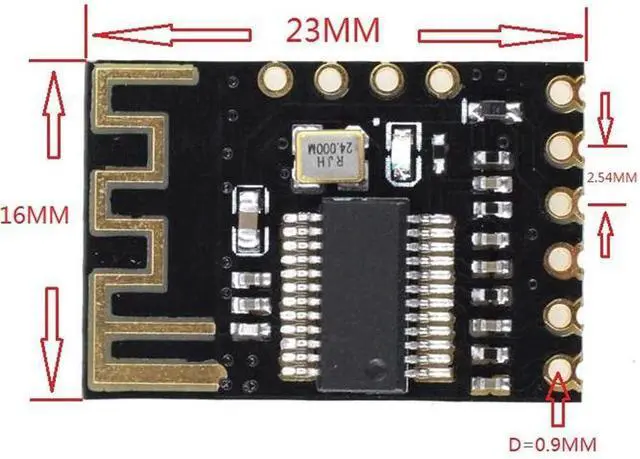

- PCB size: 23*16*2.5mm
- Pin pitch: 2.54mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Function Description:
Bluetooth V 4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
After the module is powered on, the mobile phone searches for the Bluetooth name M18/M28/M38, and can play music after connecting Bluetooth.
Module blue indicator light:
When the Bluetooth is not connected, the indicator light flashes quickly;
When the Bluetooth connection is on, the indicator light is always on;
When the Bluetooth is playing, the indicator light flashes slowly.

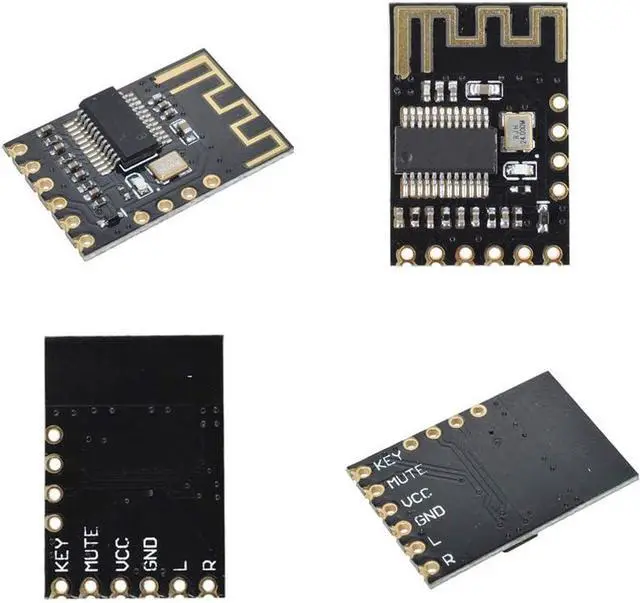

M18(HW-425):
PIN-------Description

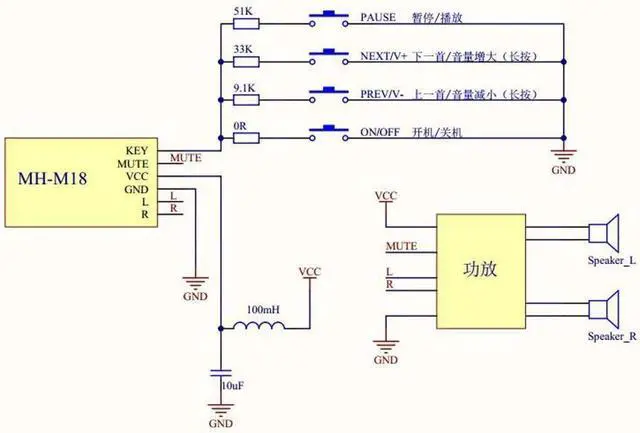

KEY------Button control terminal (4 button functions, additional resistors such as wiring diagram)
MUTE---Mute control terminal (output high level 3.3V when muting, output low level during playback)
VCC-----Positive power supply 5V (lithium battery 3.7V power supply requires short circuit diode)
GND-----GND
L-----------Left channel
R----------Right channel
--------------------------------------------------------------------------------------------------------------------------
Package Includes:
3 * M18(HW-425) Wireless Bluetooth MP3 Audio Receiver Board
Bluetooth V 4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
After the module is powered on, the mobile phone searches for the Bluetooth name M18/M28/M38, and can play music after connecting Bluetooth.
Module blue indicator light:
When the Bluetooth is not connected, the indicator light flashes quickly;
When the Bluetooth connection is on, the indicator light is always on;
When the Bluetooth is playing, the indicator light flashes slowly.
M18(HW-425):
PIN-------Description
KEY------Button control terminal (4 button functions, additional resistors such as wiring diagram)
MUTE---Mute control terminal (output high level 3.3V when muting, output low level during playback)
VCC-----Positive power supply 5V (lithium battery 3.7V power supply requires short circuit diode)
GND-----GND
L-----------Left channel
R----------Right channel
--------------------------------------------------------------------------------------------------------------------------
Package Includes:
3 * M18(HW-425) Wireless Bluetooth MP3 Audio Receiver Board
