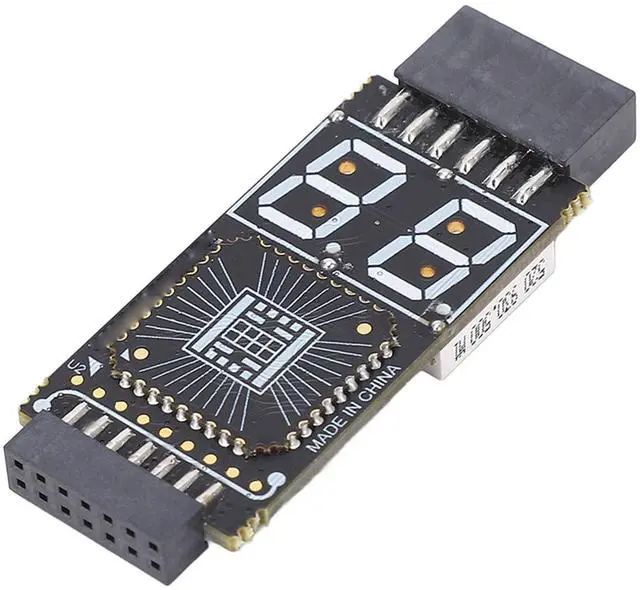

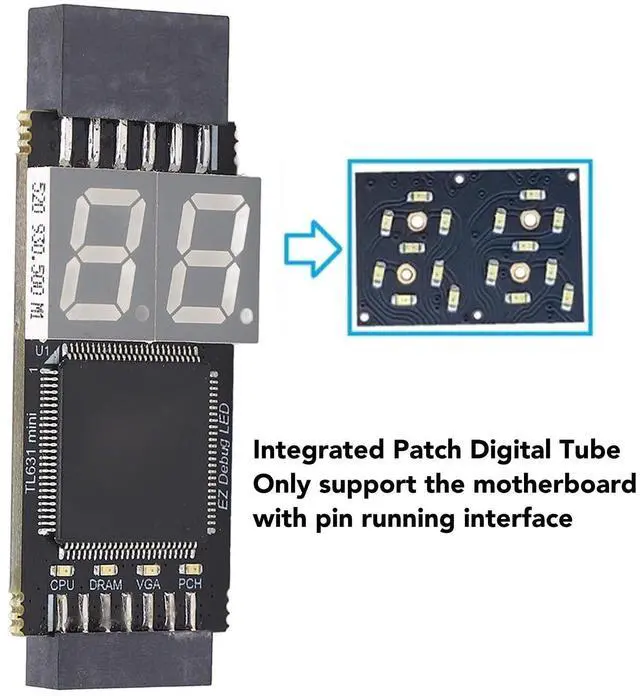

TL631 Motherboard Diagnostic Card TL611 Laptop Analyzer Adapter Card PCI E Laptop Motherboard Analyzer Card LED Indicator for Serial Comm Protocol
- Strong Compatibility:This diagnostic card supports various interfaces and slots, ensuring compatibility with a wide range of devices.
- Led Indicator:Multi-channel led indicators display the status of key components like power supply, motherboard, and memory.
- Good Performance: The motherboard analyzer diagnostic card has high recognition rate, supports automatic recognition of power module, high efficiency, and
- LED Indicator: Can detect multi channel and multiple LED indicator, support displaying the status of power supply, motherboard, PCU, memory, video card, and hard drive.
- Included Tools: This kit includes motherboard diagnostic card, laptop adapter card, connection cable and ribbon cables, easy to connect and operate, convenient and practical.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec:
Item Type: Motherboard Diagnostic Card
Product Color: Black
Product Interface: PCIE, LPC
Support Brand: Suitable for COM DEBUG, for UART1, for MSI JDP, for AMD SPI, etc.
Diagnostic Card Settings:
1. LPC1 shared high speed channel, connect the 2.0 small pin LPC port and 2.0 module on the mainboard (The module expansion LPC3 port can connect to the laptop MINI PCIE conversion card, A DEBUG conversion card, notebook DEBUG CON, EC DEBUG).
2. LPC2 shared high speed channel, connect motherboard 2.54 large pin LPC interface, for COM DEBUG, for UART1, for MSI JDP, for AMD SPl.
3. DP decimal point, CLK display.
4. DP decimal point, FRAME frame display.
5. CPU indicator to check whether the CPU module is normal.
6. DRAM memory indicator to check whether the memory module is normal.
7. VGA graphics card indicator to check whether the graphics card module is normal.
8. PCH Southbridge indicator to check whether the Southbridge module is normal.
9. The white horizontal line is the first needle of LPC1.
10. The white horizontal line is the first needle of LPC2.
11. DP decimal point, CLK display.
PackageList:

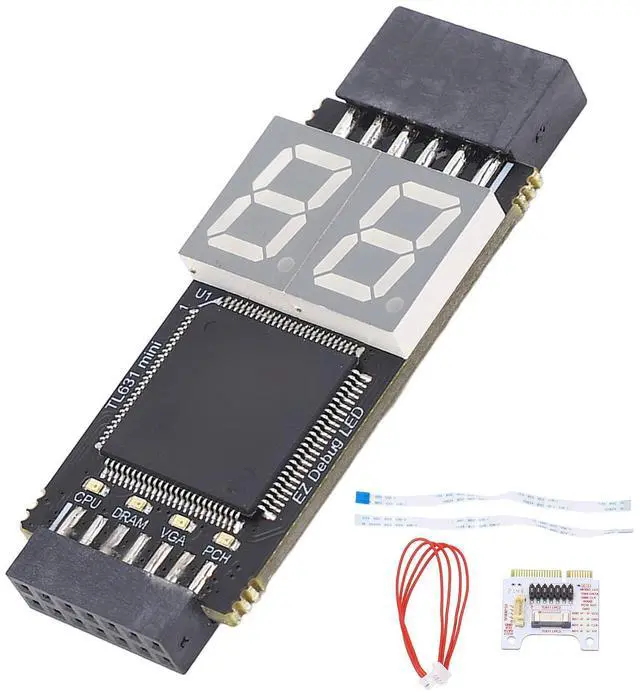

1 x Diagnostic Card
1 x Connection Cable
1 x Adapter Card
2 x Ribbon Cable
Item Type: Motherboard Diagnostic Card
Product Color: Black
Product Interface: PCIE, LPC
Support Brand: Suitable for COM DEBUG, for UART1, for MSI JDP, for AMD SPI, etc.
Diagnostic Card Settings:
1. LPC1 shared high speed channel, connect the 2.0 small pin LPC port and 2.0 module on the mainboard (The module expansion LPC3 port can connect to the laptop MINI PCIE conversion card, A DEBUG conversion card, notebook DEBUG CON, EC DEBUG).
2. LPC2 shared high speed channel, connect motherboard 2.54 large pin LPC interface, for COM DEBUG, for UART1, for MSI JDP, for AMD SPl.
3. DP decimal point, CLK display.
4. DP decimal point, FRAME frame display.
5. CPU indicator to check whether the CPU module is normal.
6. DRAM memory indicator to check whether the memory module is normal.
7. VGA graphics card indicator to check whether the graphics card module is normal.
8. PCH Southbridge indicator to check whether the Southbridge module is normal.
9. The white horizontal line is the first needle of LPC1.
10. The white horizontal line is the first needle of LPC2.
11. DP decimal point, CLK display.
PackageList:
1 x Diagnostic Card
1 x Connection Cable
1 x Adapter Card
2 x Ribbon Cable
