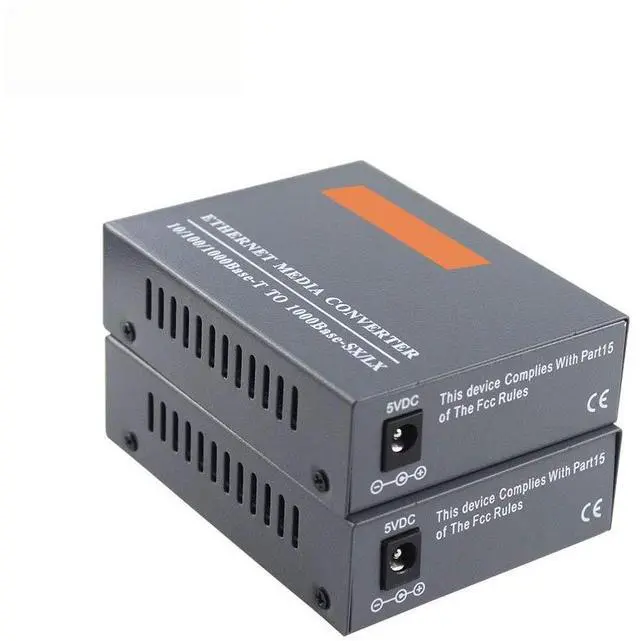

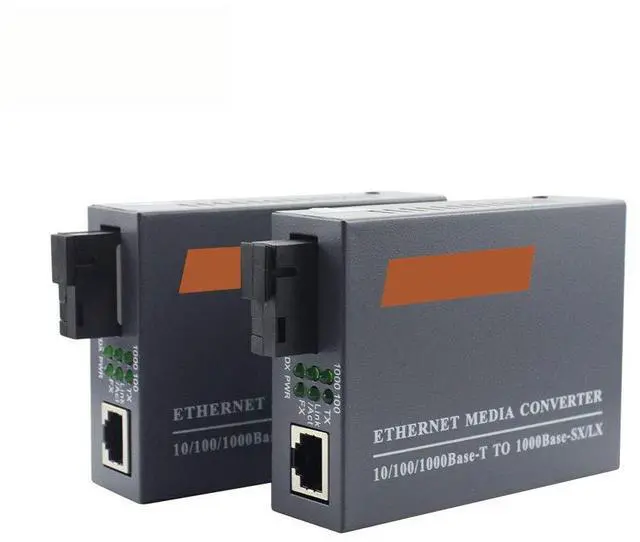

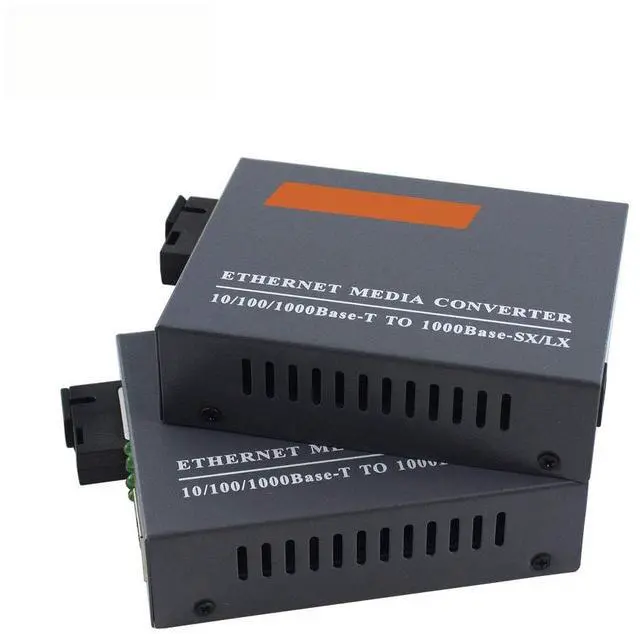

YVZOTCK 1 Pair Gigabit Fiber Media Converter Single Mode to RJ45 Fiber Media Converter SC 10/100/1000Mbps with Power Supply
- The Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
- Single Mode Fiber Converter.Using high-quality photoelectric-body module, providing good light characteristics and electrical characteristics, ensuring reliable data transmission and long working life
- SC fiber media converter singlemodeMain Features: 1.Support the switch between 1000Base-T and 1000Base-SX/LX 2.1*1.25Gbps full-duplex fiber port and 1*1000M Ethernet port 3.Each port has the complete LED Indicator light for installation, commissioning and maintenance 4.Support 9K Jumbo Packet
- 5.Support direct forwarding mode,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name: SC fiber media converter singlemodeMain Features:
1. Support the switch between 1000Base-T and 1000Base-SX/LX
2.1 * 1.25G bps full-duplex fiber port and 1*1000M Ethernet port

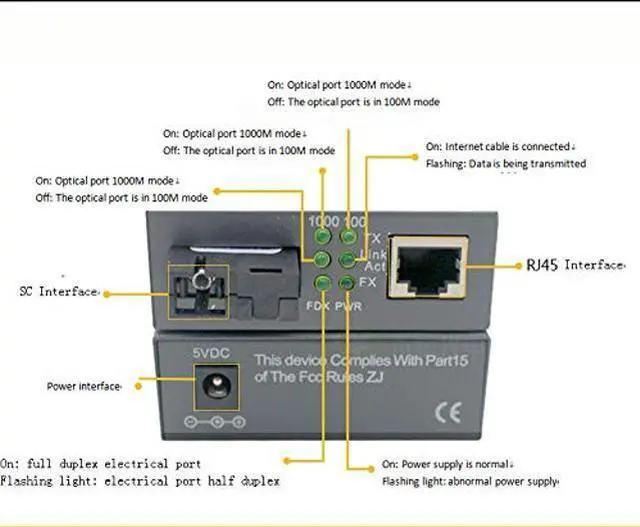

3. Each port has the complete LED Indicator light for installation,
commissioning and maintenance
4. Support 9K Jumbo Packet
5. Support direct forwarding mode, which support less time delay
6. Low power consumption, only 1.5W in full load condition
7. Support isolation protection function, good data security
8. Small size, suitable for installation in various places
9. Auto-negotiation low power consumption chips to ensure very longtime and stable operation
Interface type: SC
Cable type: single-mode single-core fiber jumper
Transmission rate: Gigabit
Transmission distance: 5 km
Transmission method: optical fiber
Transmitting power: standard (dbm)
Voltage input: 5 V
Transmission wavelength:
A side TX1310nm RX1550nm
B side TX1550nm RX1310nm
Size: 95 * 70 * 25 mm
Product list: 2 Fiber Optical Media Converter, 2 external power supplies
Material: High-quality metal
1. Support the switch between 1000Base-T and 1000Base-SX/LX
2.1 * 1.25G bps full-duplex fiber port and 1*1000M Ethernet port
3. Each port has the complete LED Indicator light for installation,
commissioning and maintenance
4. Support 9K Jumbo Packet
5. Support direct forwarding mode, which support less time delay
6. Low power consumption, only 1.5W in full load condition
7. Support isolation protection function, good data security
8. Small size, suitable for installation in various places
9. Auto-negotiation low power consumption chips to ensure very longtime and stable operation
Interface type: SC
Cable type: single-mode single-core fiber jumper
Transmission rate: Gigabit
Transmission distance: 5 km
Transmission method: optical fiber
Transmitting power: standard (dbm)
Voltage input: 5 V
Transmission wavelength:
A side TX1310nm RX1550nm
B side TX1550nm RX1310nm
Size: 95 * 70 * 25 mm
Product list: 2 Fiber Optical Media Converter, 2 external power supplies
Material: High-quality metal
