$74.99
Meet Your Seller

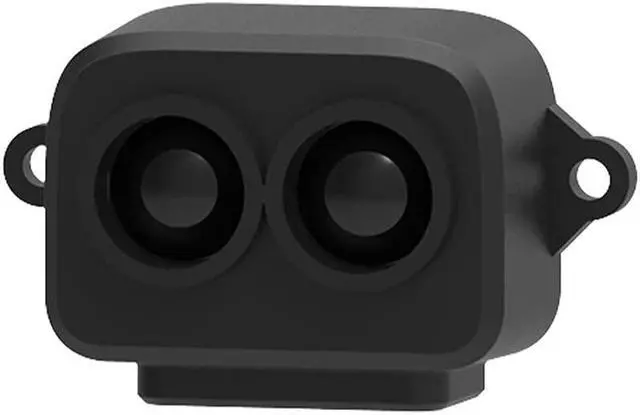

MenJie Tfmini-S 0.1-12M Plus Lidar Range Finder Sensor Output Frequency (1-1000HZ), with UART, I2C and I/O Communication Interface, Compatible with Pixhawk, Arduino and Rasppbarry Pi
- Output&Power ConsumptionHigh-precision distance measurement with TOF10120,up to 0.1-12m ; Output speed (1 ~1000HZ); Voltage 3.3V; Current<140mA
- Small But Sturdy42mm X 15mm X 16mm; 5g weigh; PC/ABS shell; Adapt to outdoor strong light and temperature with TOF10120
- Various communicationsSupports serial port protocol and autonomous switching, UART, IIC and I/O.
- ApplicationParking detection; Drone avoids obstacles; Vehicle-road coordination; Intelligently identifyobjects within range, and so on.
- Packing&Service1*Tfmini-S, 1* Dupont line ; Lifetime technical support; Provide software to view data; Sample codes for your reference
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Basic Parameters 1)
Power Consumption:
0.7W: 2)
Peak current:
200mA: 3)
Communication level: LVTTL ( 3.3V ): 4)
Communication interface: UART, I²C, I/O: 5)
Size: 42mm*15mm*16mm
(L*W*H): 6)
Shell material:
PC/ABS: 7)
Storage temperature: -20~ 75: 8 )
Weight: 5g±
0.3 g: 9)
Cable length: 10cm.
2. Product Performance 1)
Measuring range: 0.1 m~12m@90% reflectivity; 0.1 ~7m@10% reflectivity; 0.1 m~12m@90% reflectivity (70Klux); 0.1 ~7m@10% reflectivity (70Klux).
2) Accuracy: ±6cm@( 0.1 -6m); ±1%@(6m-12m) 3)
Working temperature: 0~60 4)
Anti-ambient light ability: 70Klux
3.
Optical Parameters 1)Light source: VCSEL
; 2)Center wavelength: 850nm
; 3)Eye safety: Class1 (EN60825).
4. Electrical Parameters 1) Supply voltage 5V± 0.1V 2) Average current 140mA
Power Consumption:
0.7W: 2)
Peak current:
200mA: 3)
Communication level: LVTTL ( 3.3V ): 4)
Communication interface: UART, I²C, I/O: 5)
Size: 42mm*15mm*16mm
(L*W*H): 6)
Shell material:
PC/ABS: 7)
Storage temperature: -20~ 75: 8 )
Weight: 5g±
0.3 g: 9)
Cable length: 10cm.
2. Product Performance 1)
Measuring range: 0.1 m~12m@90% reflectivity; 0.1 ~7m@10% reflectivity; 0.1 m~12m@90% reflectivity (70Klux); 0.1 ~7m@10% reflectivity (70Klux).
2) Accuracy: ±6cm@( 0.1 -6m); ±1%@(6m-12m) 3)
Working temperature: 0~60 4)
Anti-ambient light ability: 70Klux
3.
Optical Parameters 1)Light source: VCSEL
; 2)Center wavelength: 850nm
; 3)Eye safety: Class1 (EN60825).
4. Electrical Parameters 1) Supply voltage 5V± 0.1V 2) Average current 140mA
