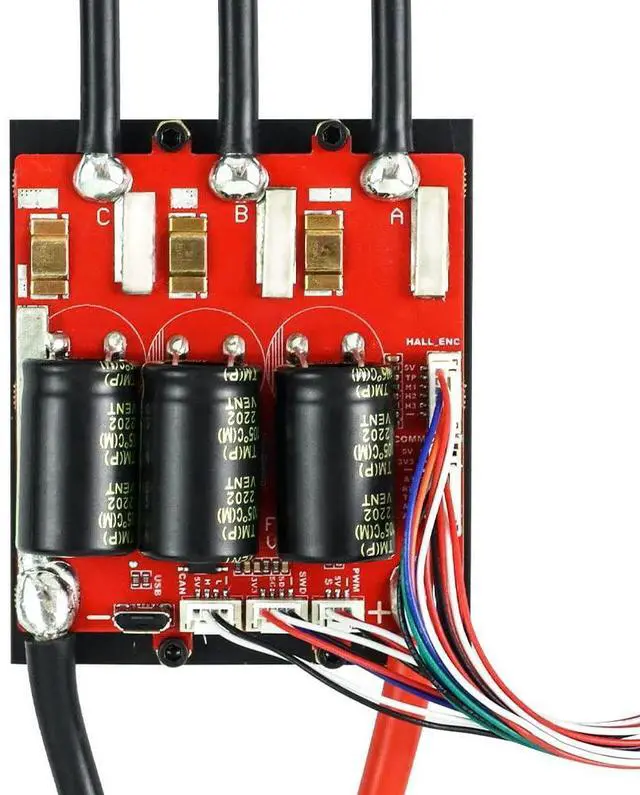

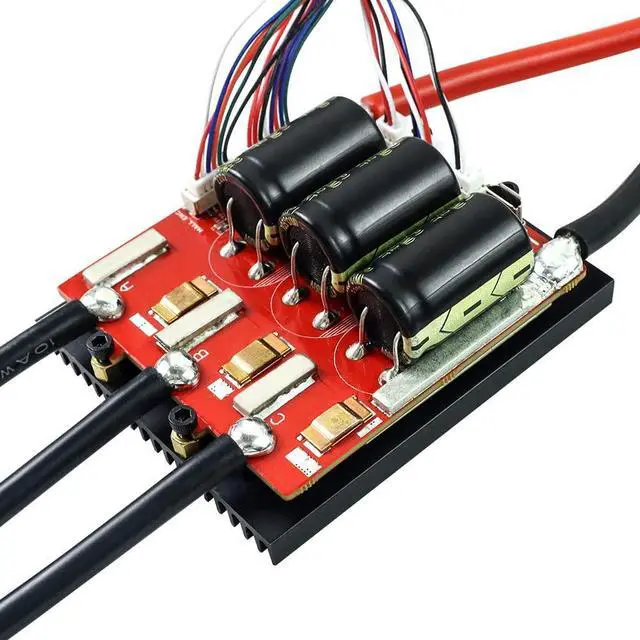

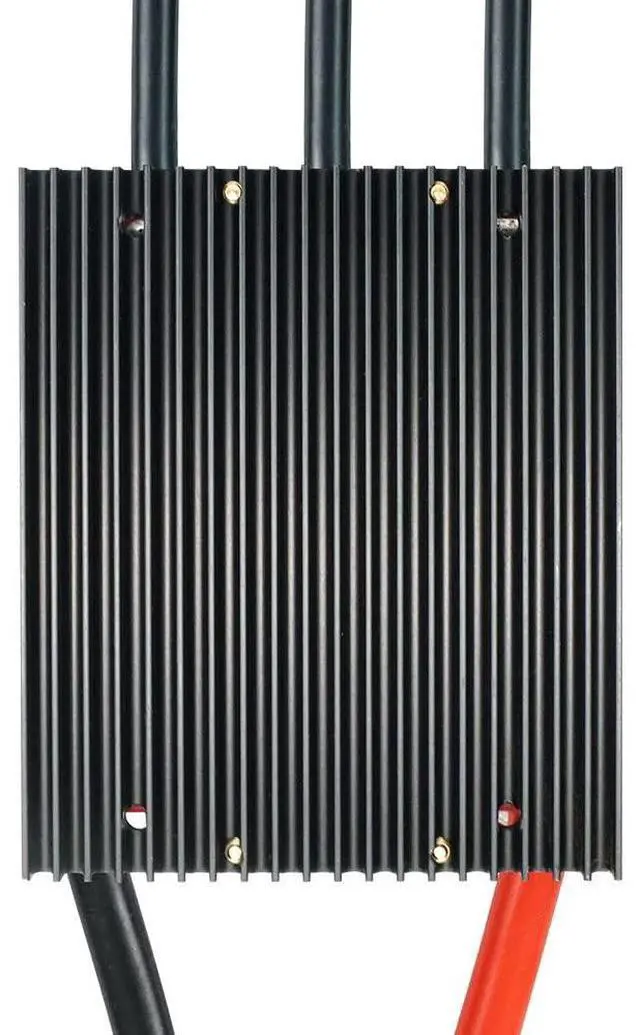

Flipsky Electric Speed Controller for Skateboard FSESC6.9 100A Base on VESC6.6 with Aluminum Anodized Heat Sink

Be the first to review this product...

Support four control modes: Current/Dutycycle/Speed /Position control mode.
Using 6pcs SFT01N10T high current MOSETS (100V 500A).
Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
Flipsky quality produce and good service for you

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specs:
Firmware: Latest
Version Continuous current: 100A
; instantaneous current: 200A
Voltage:
14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
BEC: 5V@1A
ERPM: 150000 Control

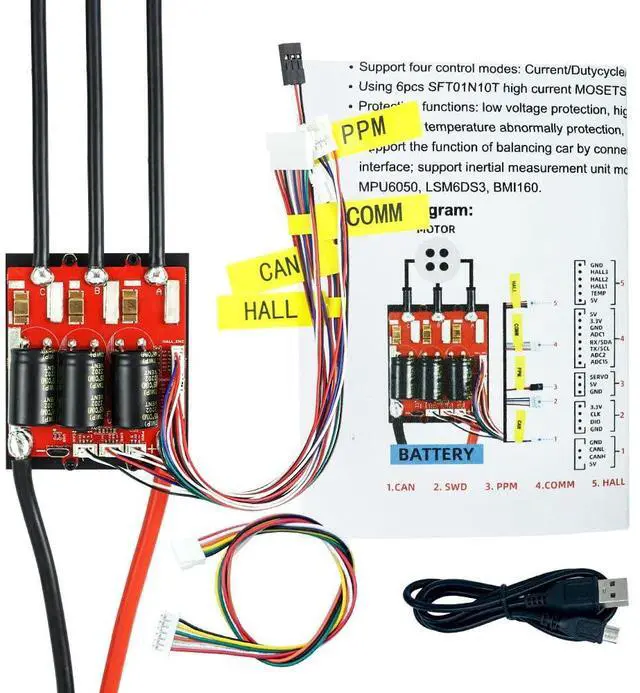

Interface Ports: USB, CAN, UART
Supported Sensors: ABIHALLAS5047AS5048A
Input Set Support: PPM, ADC, NRF, UART, SPI, IIC
Modes: DC, BLDC, FOC (sinusoidal)
Regenerative capacity: Yes
Programmable: Yes
Motor wire: 10AWG
Power cable: 8AWG

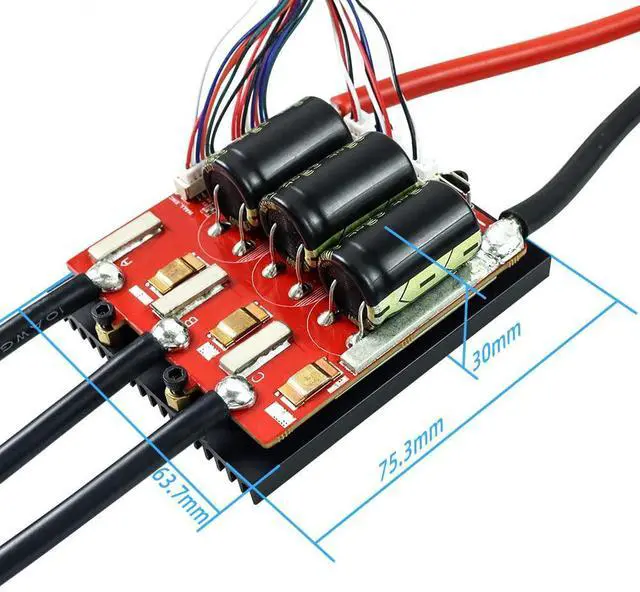

Size: 75.4 x 63.7 x 31.1 mm (Including heatsink)
