$80.99
Meet Your Seller

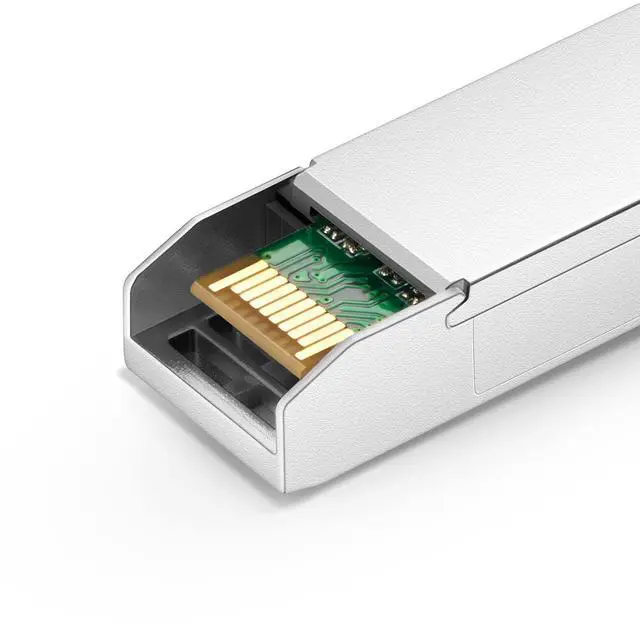

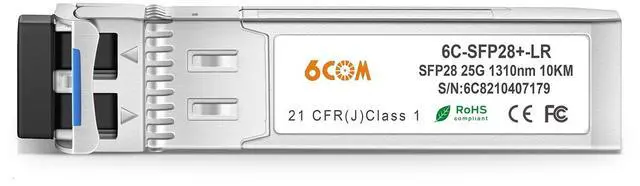

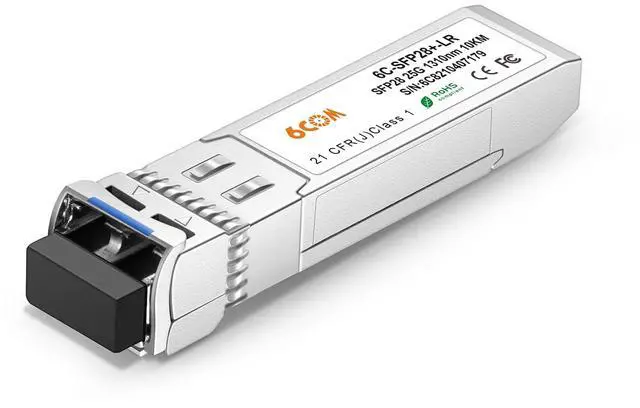

6COMGIGA 25GBASE-LR Compatible for Cisco SFP-25G-LR-S SFP28 1310nm 10km DOM LC SMF Optical Transceiver Module
- 25GBASE-LR:25Gbps data rate, 1310nm wavelength, up to 10km transmission distance.duplex LC connector, SMF, 0 to 70°C (32 to 158°F) working temperature, Tx Power(dBm): -2~4dBm, Rx Sens.(dBm): -14dBm.
- Compatibility:for Cisco SFP-25G-LR-S,if you need transceiver compatible for other switches,you can contact us.
- Easy to use & Durable:Plug and play, hot-pluggable. Rotate the ring latch down at 90 degree angle to unlock, then insert it to the port or pull transceiver out from switch.
- High Quality :All of products are manufactured under strict quality control system, every module has been tested one by one on different switches before shipping, to ensure compatibility with different brand of switch.
- After-sales Service:30 days Free-Returned, 3 years Free Warranty and lifetime technology support, please contact us, any product quality and compatibility issues.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
25GBASE-LR Compatible for Cisco SFP-25G-LR-S SFP28 1310nm 10km DOM LC SMF Optical Transceiver Module
Form Factor: SFP28
Max Data Rate: 25Gbps
Wavelength: 1310nm
Max Cable Distance: 10km
Connector: LC duplex
Media: SMF
Transmitter Type: DFB 1310nm
Receiver Type: PIN
DOM Support: Yes
TX Power: -2~4dBm
Receiver Sensitivity: -14dBm
Power Consumption: 1W
Extinction Ratio: 2dB
Modulation Format: NRZ
CDR: TX and RX
Transmit and Dispersion Penalty: 1dB
Powerbudget: 12dB
Protocols: MSA Compliant, CPRI, eCPRI
Application: 25GBASE Ethernet, Data Center, Telecom, 100GE SR4 Fan Out to 25GE SR
Form Factor: SFP28
Max Data Rate: 25Gbps
Wavelength: 1310nm
Max Cable Distance: 10km
Connector: LC duplex
Media: SMF
Transmitter Type: DFB 1310nm
Receiver Type: PIN
DOM Support: Yes
TX Power: -2~4dBm
Receiver Sensitivity: -14dBm
Power Consumption: 1W
Extinction Ratio: 2dB
Modulation Format: NRZ
CDR: TX and RX
Transmit and Dispersion Penalty: 1dB
Powerbudget: 12dB
Protocols: MSA Compliant, CPRI, eCPRI
Application: 25GBASE Ethernet, Data Center, Telecom, 100GE SR4 Fan Out to 25GE SR
