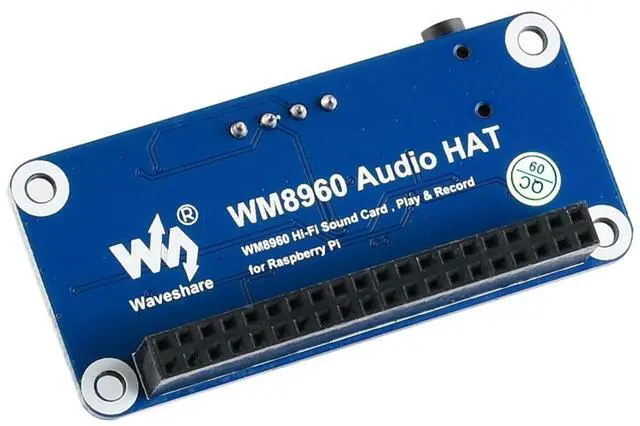

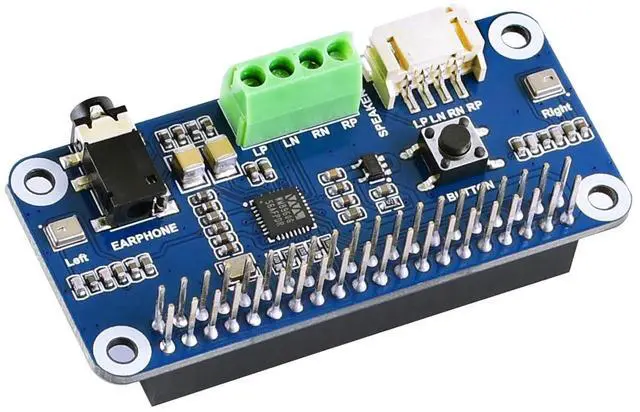

Coolwell WM8960 Audio Module Hi-Fi Sound Card HAT for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH 2W Stereo CODEC Play/Record
- WM8960 Audio HAT with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- WM8960 Hi-Fi Sound Card HAT, integrates WM8960 low power stereo CODEC, communicates via I2S interface
- WM8960 audio codec, integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
- Audio Module for Raspberry Pi, supports sound effects such as stereo, 3D surrounding, etc.
- Comes with development resources and manual (python demo code for playing / recording), feel free to contact us for adress and technical support
- Onboard standard 3.5mm earphone jack, play music via external earphone;dual-channel speaker interface, directly drives speakers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording,
what's more, it can directly drive speakers to play music.
CODEC: WM8960
Power supply: 5V
Logic voltage: 3.3V
Control interface: I2C
Audio interface: I2S
DAC signal-noise ratio: 98dB
ADC signal-noise ratio: 94dB
Earphone driver: 40mW (16@ 3.3V )
Speaker driver: 1W per channel (8 BTL)

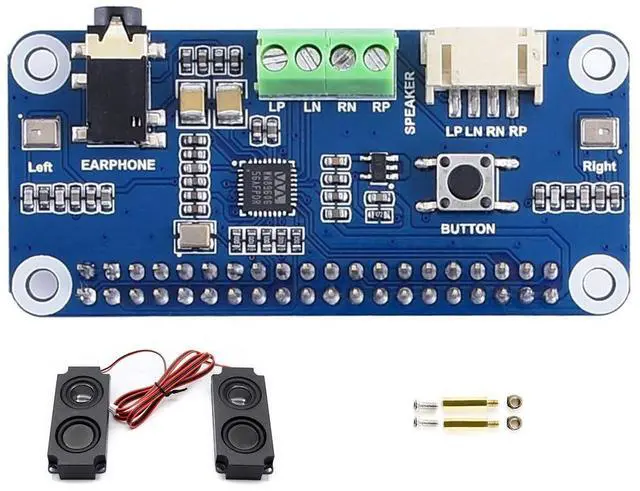

Package include
Note: Raspberry Pi in the photos is NOT included.
1. WM8960 Audio HAT x1
2. 8 5W Speaker x1
3. RPi screws pack (2pcs) x1
Sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording,
what's more, it can directly drive speakers to play music.
Specifications
CODEC: WM8960
Power supply: 5V
Logic voltage: 3.3V
Control interface: I2C
Audio interface: I2S
DAC signal-noise ratio: 98dB
ADC signal-noise ratio: 94dB
Earphone driver: 40mW (16@ 3.3V )
Speaker driver: 1W per channel (8 BTL)
Package include
Note: Raspberry Pi in the photos is NOT included.
1. WM8960 Audio HAT x1
2. 8 5W Speaker x1
3. RPi screws pack (2pcs) x1
