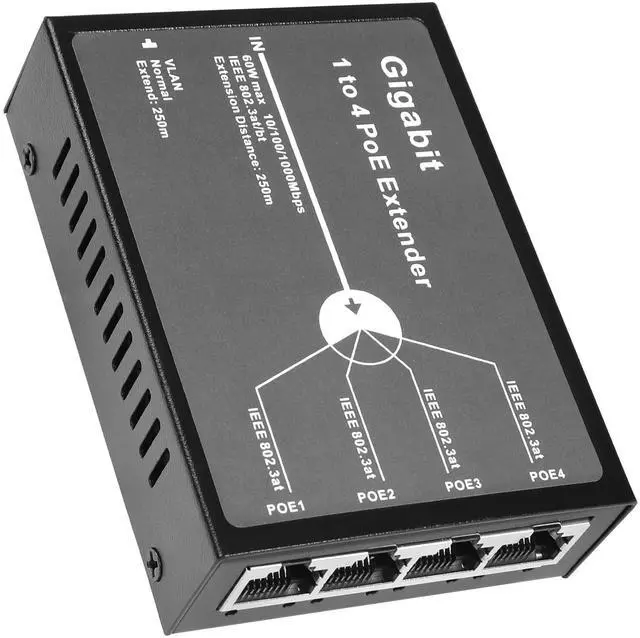

REVODATA Gigabit 4 Port 60W PoE Extender, 10/100/1000Mbps 1 in 4 Out PoE+ Repeater with 3 Mode Available, 60W 802.3BT Input, 802.3at Output 30W, 100m/250m PoE Extension for PoE Device (POE5004G-V2)

Note:

1. This Extender is not a PoE Switch, it can not work without powered by PoE Switch/PoE injector/PoE NVR.
2. 60W total power budget need to powered by 802.3BT source;

3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
4. Please don't place any heavy thing on the PoE extender;

Overview:
POE5004G-V2 PoE Extender is a cost effective way to extend the PoE or Ethernet network range beyond 100m/250m (Max). Deliver Ethernet (10/100/1000Mbps) and power (30W Max) for PoE terminal device like WLAN AP, PTZ, IP Camera, etc with no require of local power. Comply IEEE 802.3 af/at/BT PoE standard.

Specification:

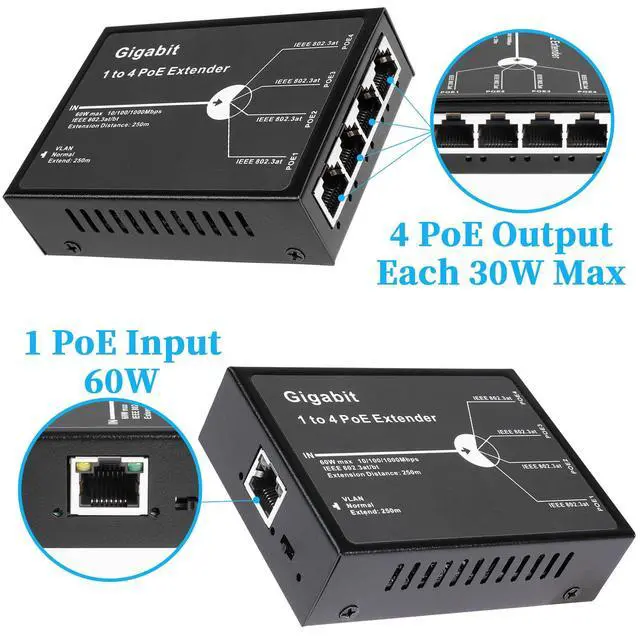

PoE Input: 1 RJ45 PoE port
PoE Output: 4 RJ45 PoE port
Input Power: 60W Max ( 802.3BT, PoE++, Hi-PoE)
Output Power: 30W Max ( 802.3 af)
Output Voltage: 48V
Transfer rate: 10/100/1000Mbps
Normal Mode: Max 100M PoE Extend Distance
VLAN Mode: Max 100M PoE Extend Distance
Extend Mode: Max 250M PoE Extend Distance
Network Cable: Cat5, Cat5e, Cat6 or better
Repeater Mode: Store and forward
MAC Address Table: 8K
Packet Buffer Memory: 126 Byte
Switching Capacity: 8000Mbps
PoE Standard: IEEE 802.3 af/at/BT
Power Supply Type: 1/2+, 3/6-, ModeA, End-Span
Network Protocol: IEEE 802.3 i-10BASE-T, IEEE
802.3 u: 100BASE-TX, IEEE 802.3 x-Flow Control, IEEE 802.3 af/at/BT
Regulatory Compliance: IEEE 802.3 af/at/BT, RoHS Compliant, CE, FCC
Storage Humidity: 5%~90%, No Condensation
Operating temperature: -3575
Dimension: 95 * 70 * 21mm (L*W*H)
Weight: 173g

Package Include:
1 * 4 Port POE Extender (POE5004G-V2)
