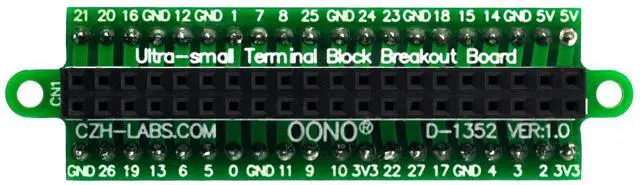

Ultra-Small RPi GPIO Terminal Block Breakout Board Module, for Raspberry Pi
- The item has been soldered and assembled. Support for Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Model B, Pi Zero, Pi Zero-W.

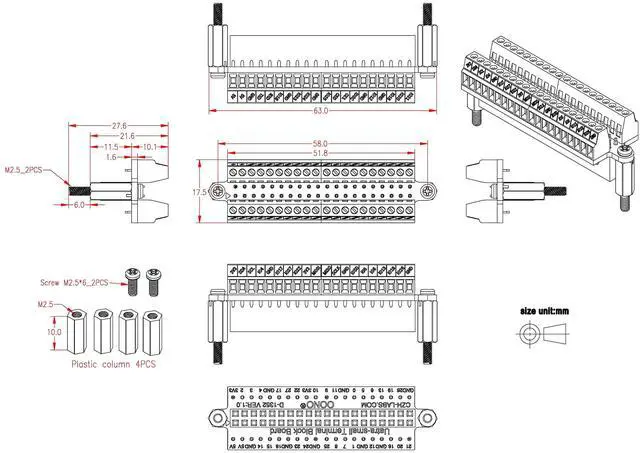

- Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper.
- FR-4 fiber glass PCB, dual copper layers.

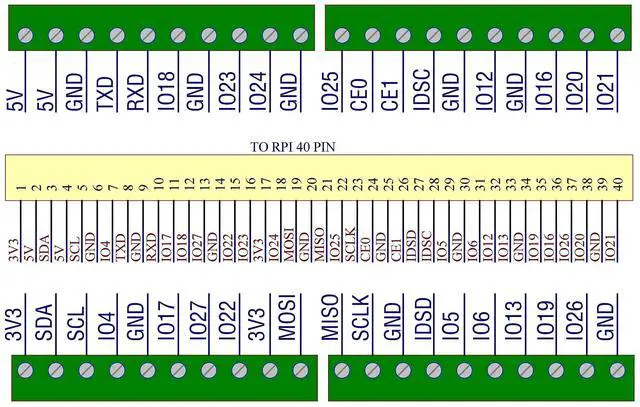

- 2x20 positions header connect to Raspberry Pi board.

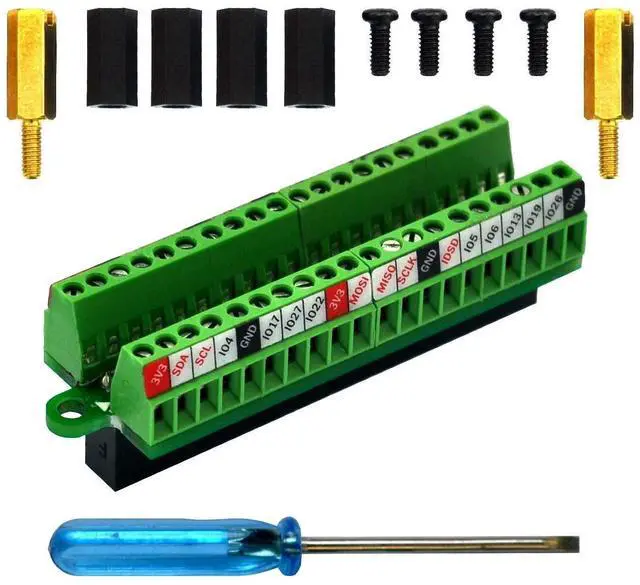

- Packing list: 1x terminal block breakout module, 4x M2.5x6mm screws, 4x 10mm nylon standoffs. 2x 11.5mm brass standoffs, 1x small slotted screwdriver (NOTE: the item not include Raspberry Pi Board).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1, The item has been soldered and assembled. Support for Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Model B, Pi Zero, Pi Zero-W. 2, Terminal block pitch 2.54 mm/ 0.1", wire size range 28AWG to 18AWG, strip length 4.5 mm, screw M 1.6 steel, pin header and cage copper. 3, FR-4 fiber glass PCB, dual copper layers. 4, 2x20 positions header connect to Raspberry Pi board.
5,
Packing list: 1x terminal block breakout module, 4x M 2.5 x6mm screws, 4x 10mm nylon standoffs. 2x 11.5 mm brass standoffs, 1x
small slotted screwdriver (NOTE: the item not include Raspberry Pi Board).
5,
Packing list: 1x terminal block breakout module, 4x M 2.5 x6mm screws, 4x 10mm nylon standoffs. 2x 11.5 mm brass standoffs, 1x
small slotted screwdriver (NOTE: the item not include Raspberry Pi Board).
