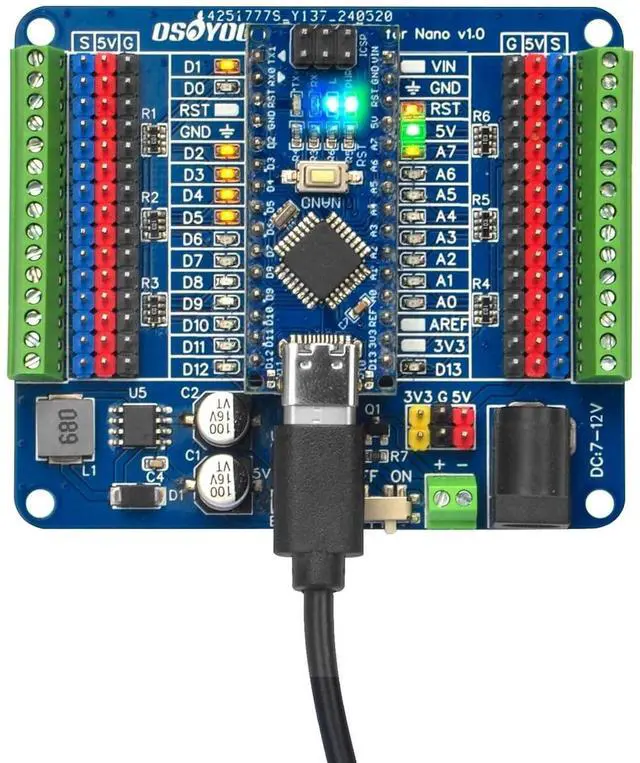

OSOYOO Nano Board with USB-C and Nano IO Shield,Breakout Board with GPIO Status LED
- This kit included a OSOYOO Nano board which has USB-C and a Nano breakout board which provides expanded capabilities and easier connections for your Nano projects. The combination makes it simple to add sensors, servos, and other components, perfect for hands-on robotics and 3D-printed projects.
- The Nano baord is compatible with Arduono Nano V3.0. It features a USB-C port, providing an up-to-date connection standard that makes it compatible with the latest devices and ensures faster data transfer.It comes with the cable that is included is a USB A to USB C that is approximately 20" in length.
- The OSOYOO Nano board includes a pre-installed bootloader, allowing you to start coding and testing immediately with the IDE. No additional setup is needed, making it ideal for beginners and advanced users alike.
- The Nano Breakout Board simplifies wiring with its terminal block design, allowing easy and secure connections without soldering. It also features GPIO status LEDs that provide i
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product DescriptionThis is a great way to connect I/O shield to the OSOYOO Nano for projects you are going to actually use in the real world. About osoyoo nano board. Little nano development board with a USB C port.
Plug and Play: These boards come pre-installed with the Bootloader, making them ready to use out of the box. Flash code easily and efficiently in one go.
Wide Compatibility and Support: The OSOYOO Nano supports ISP download, USB download, and power. It's fully compatible with Arduono Nano V 3.0 and works seamlessly with Windows, Mac, and Linux operating systems.

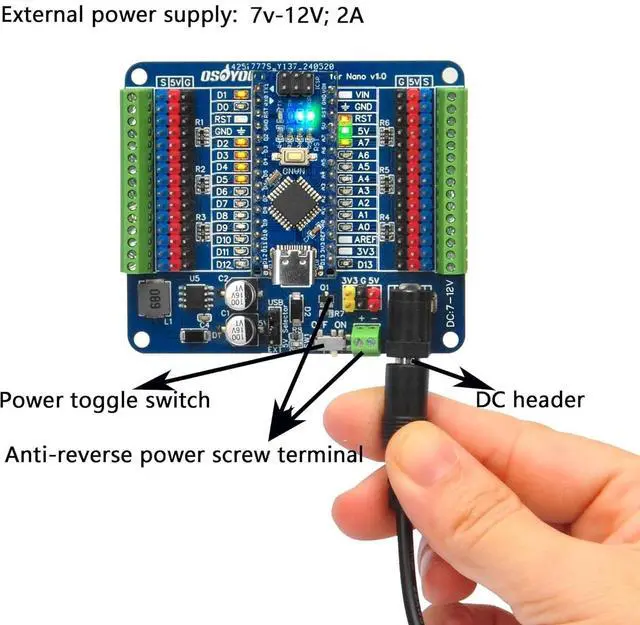

Flexible Power Options: Supports a 6-12V unregulated external power supply or a 5V regulated external power supply. The Nano automatically detects and switches to the higher potential power source, eliminating the need for a power select jumper. Perfect for engineering students to learn C++ and Python while exploring endless possibilities in electronics and coding. An affordable device for anyone interested in getting started with both programming and electronics.

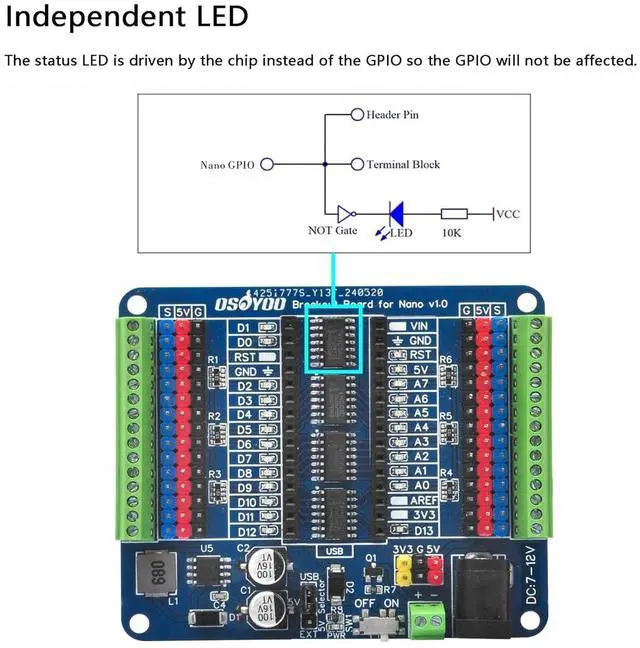

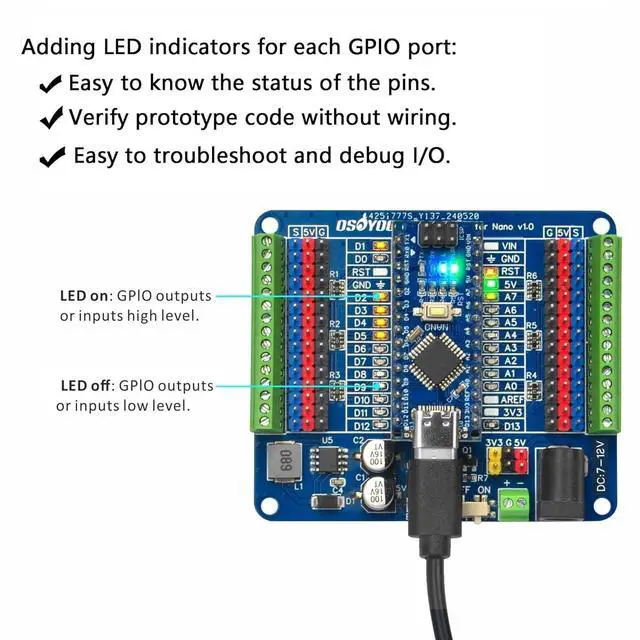

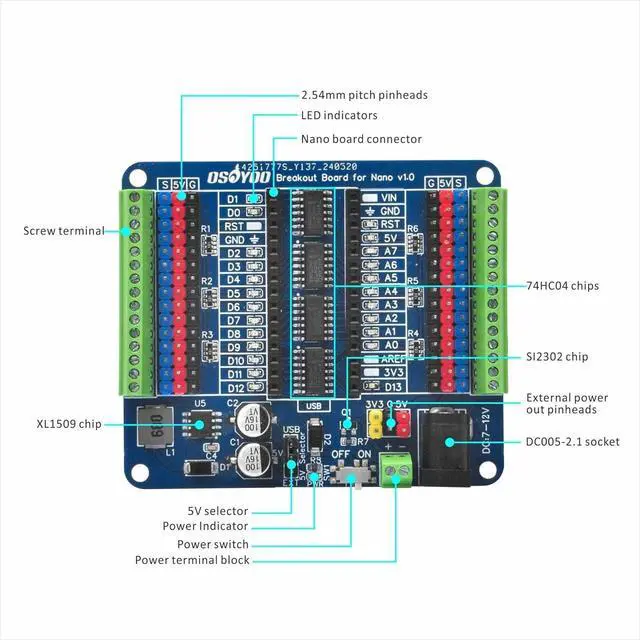

IO Shield Features: This breakout board can help you wire the GPIO pins and know their status, it is essential for debugging I/O of Nano. Analog/Digital pinouts with 5V/GND. Digital IO port 14 ports prepared to digital modules or servos. Analog IO Port 8 ports prepared to analog sensor input. External 5V/ 3.3V /GND power ports. Tech specs of nano
I/O shield: Operating
Voltage: 5VInput Voltage (recommended) 7-12VDigital I/O Pins20PWM Digital I/O Pins6Analog Input Pins8External Power Output5V/2AOptions for power inputUSB/DC 0052.1 /Screw terminal/Male pinheadsTutorial:
Tutorial: Comes with online tutorial. Besides, we offer Fritzing file of this I/O shield.
Package Includes: 1 x OSOYOO Nano board with type C cable1 x Breakout Board for Nano
Plug and Play: These boards come pre-installed with the Bootloader, making them ready to use out of the box. Flash code easily and efficiently in one go.
Wide Compatibility and Support: The OSOYOO Nano supports ISP download, USB download, and power. It's fully compatible with Arduono Nano V 3.0 and works seamlessly with Windows, Mac, and Linux operating systems.
Flexible Power Options: Supports a 6-12V unregulated external power supply or a 5V regulated external power supply. The Nano automatically detects and switches to the higher potential power source, eliminating the need for a power select jumper. Perfect for engineering students to learn C++ and Python while exploring endless possibilities in electronics and coding. An affordable device for anyone interested in getting started with both programming and electronics.
IO Shield Features: This breakout board can help you wire the GPIO pins and know their status, it is essential for debugging I/O of Nano. Analog/Digital pinouts with 5V/GND. Digital IO port 14 ports prepared to digital modules or servos. Analog IO Port 8 ports prepared to analog sensor input. External 5V/ 3.3V /GND power ports. Tech specs of nano
I/O shield: Operating
Voltage: 5VInput Voltage (recommended) 7-12VDigital I/O Pins20PWM Digital I/O Pins6Analog Input Pins8External Power Output5V/2AOptions for power inputUSB/DC 0052.1 /Screw terminal/Male pinheadsTutorial:
Tutorial: Comes with online tutorial. Besides, we offer Fritzing file of this I/O shield.
Package Includes: 1 x OSOYOO Nano board with type C cable1 x Breakout Board for Nano
