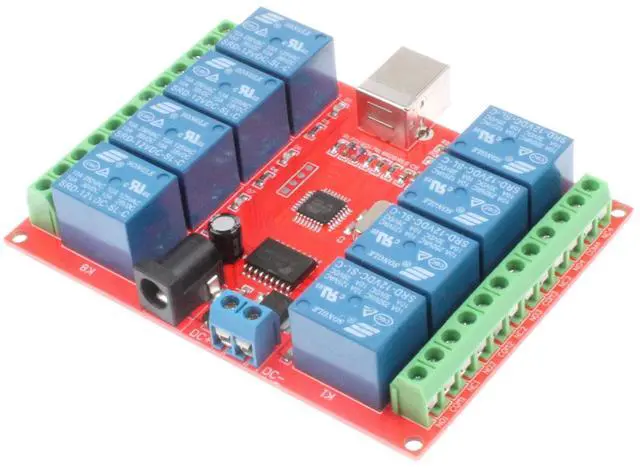

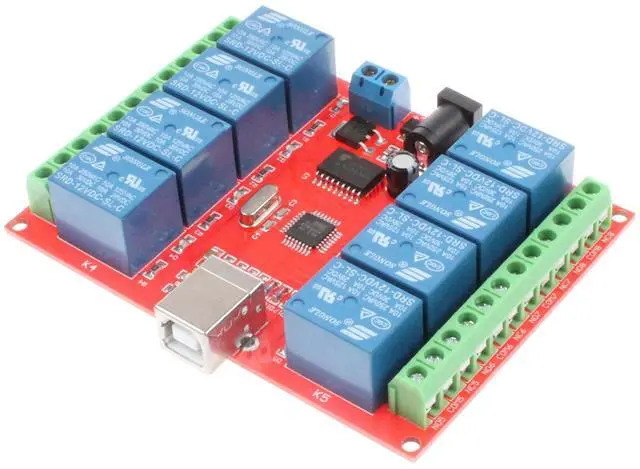

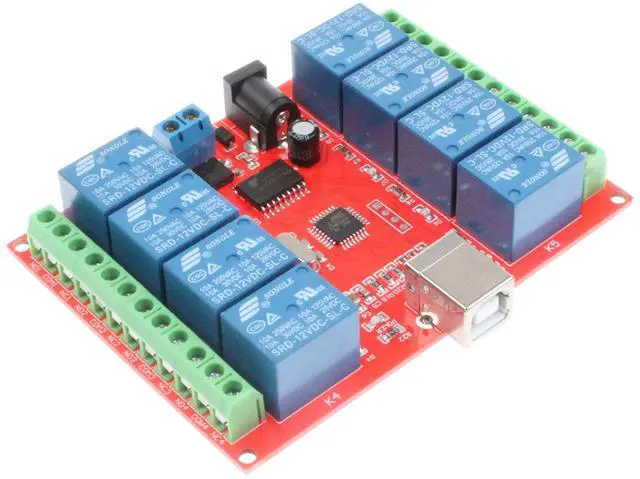

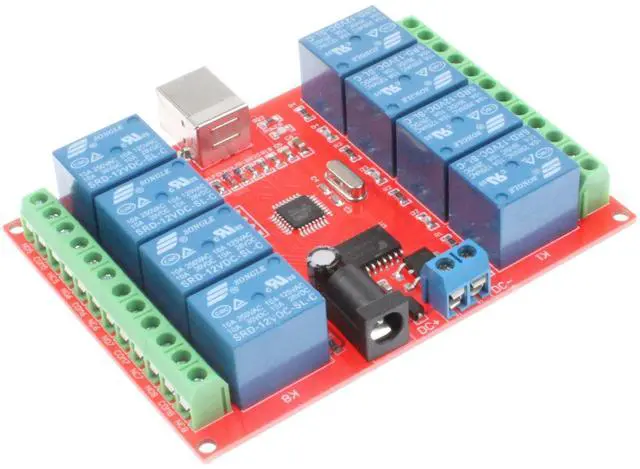

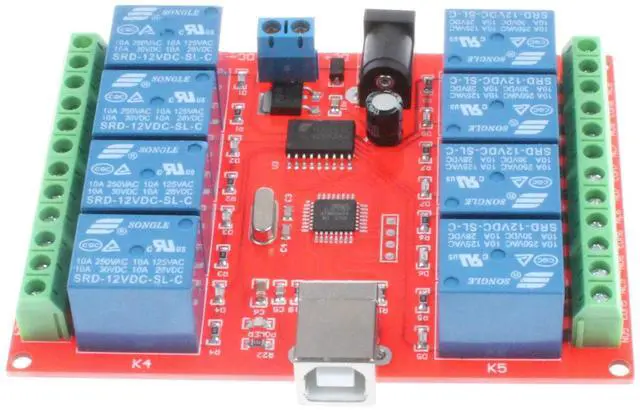

NOYITO 8-Channel 12V Computer USB Control Switch Relay Module Drive-Free Relay Module Plug and Play Suitable for PC Smart Controller
- The module uses HID technology, without any driver, plug and play. Support WIN7, 10,XP 32-bit, 64-bit system, easy to use simple.
- Onboard square USB interface, stable connection; use of high-performance USB control chip; use dedicated relay driver chip ULN2803, relay work more stable;
- Power outlet and terminal, two access power mode convenient and flexible. After connecting the power, even if the computer shut down or USB from the computer pull out, the relay can also maintain the set state.
- NOTE: The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply.
- PCB size: 96.5mm * 72.6mm, fixed hole size: 3mm, fixed hole center moment: 90.2mm * 66.6mm.
- NOYITO USB Relay External Use Development Library Test app Download
- https://1drv.ms/u/s!AlzQUCOyZQhKgWS7uH0cskD7GHlD?e=wecwdX
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NOTE: The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply.
Product parameters: Input
voltage: DC 12 V;
Input current: greater than 300mA;
Wiring method: NC / COM / NO;
Relay parameters: Maximum control AC 250V, 10A AC load and maximum DC30V 10A DC load;
Package Inluded: 1*8-Channel 12V USB Control Switch Relay Module
Product parameters: Input
voltage: DC 12 V;
Input current: greater than 300mA;
Wiring method: NC / COM / NO;
Relay parameters: Maximum control AC 250V, 10A AC load and maximum DC30V 10A DC load;
Package Inluded: 1*8-Channel 12V USB Control Switch Relay Module
