DIYmalls 2.4" inch ESP32 Display ESP32-2432S024C Capacitive Touch Screen - 9341 TFT LCD Module 240x320 ES-32 Development Board for Arduino IDE
- Combination of ESP-32 ESP32 module + 2.4 inch display capacitive touch (not resistive touchscreen).

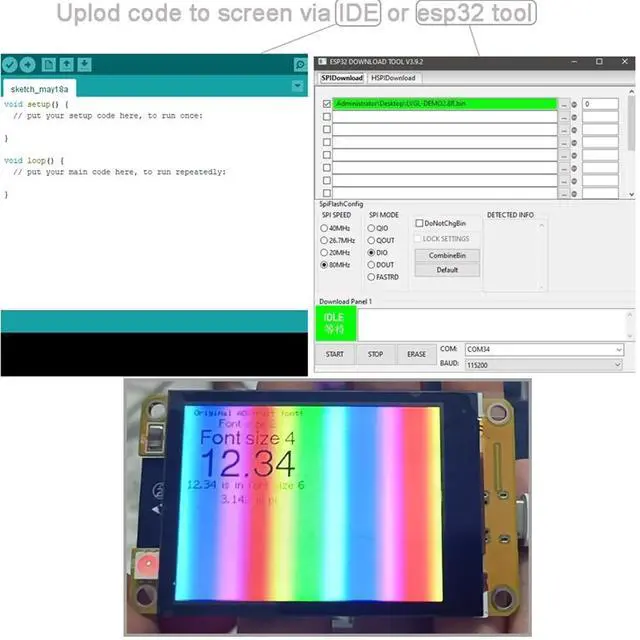

- Upload code to the 2.4 inch esp32 touchscreen via IDE or esp32 flash tool.

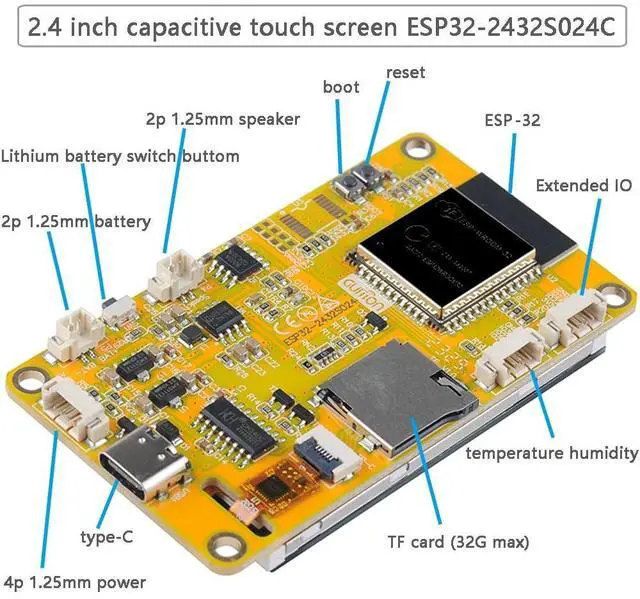

- Use DHT11 temperature humidity sensor on P3 connector 4pin 1.25mm. CN1 IO connector type is also 4pin 1.25mm.
- Support TF card (smaller than sd card), no more than 32G.

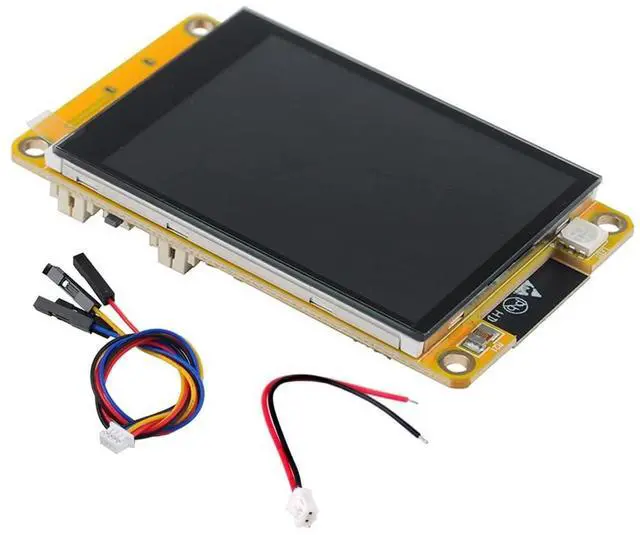

- Comes with 1pcs esp32 tft lcd 2.4 inch, 1pcs dupont female to 1.25mm wire, 1pcs 2pin 1.25mm cable (designed for the P4 speaker or P5 battery interface).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Combination of ESP-32 ESP32 module + 2.4 inch display capacitive touch (not resistive touchscreen). ^^ Upload code to the 2.4 inch esp32 touchscreen via IDE or esp32 flash tool. ^^ Use DHT11 temperature humidity sensor on P3 connector 4pin 1.25 mm. CN1 IO connector type is also 4pin 1.25 mm. ^^ Support TF card (smaller than sd card), no more than 32G. ^^ Comes with 1pcs esp32 tft lcd 2.4 inch, 1pcs dupont female to 1.25 mm wire, 1pcs 2pin 1.25 mm cable (designed for the P4 speaker or P5 battery interface).
