2 Pack 1.25G/s Bidi Gigabit Single-Mode Fiber to Ethernet Media Converter with 2PCS Bidi SFP LC Dual Transceiver Module Included, 10/100/1000Base-Tx to 1000Base-LX SMF RJ45 to SFP Slot up to 550M
- Complete Fiber Media Converter KitIncludes 2x Gigabit Ethernet Media Converters with SFP slots, 2x 1000BASE-LX BiDi SFP transceivers (LC single-mode, TX1310nm/RX1550nm), 2x 5V/1A power adapters (100240V), and 1x user manual. Everything you need to create a reliable point-to-point fiber optic network link is included in the box.
- High-Speed Gigabit Performance Up to 20KM TransmissionEquipped with 1.25Gbps SFP ports and pre-installed BiDi single-mode SFP modules, this kit delivers stable Gigabit connectivity over SC-LC fiber up to 20 kilometers. Supports standard 9/125m single-mode fiber. Ideal for long-distance backbone connections and network extensions.
- Auto-Sensing 10/100/1000Mbps RJ45 PortsEach unit features an RJ45 Ethernet port with auto-negotiation for 10/100/1000Mbps speeds, full/half duplex modes, and MDI/MDIX auto-crossover. Compatible with IEEE 802.3, 802.3u, 802.3z, and 802.3ab standards. Seamlessly integrates with routers, switches, IP cameras, servers, or any Gigabit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

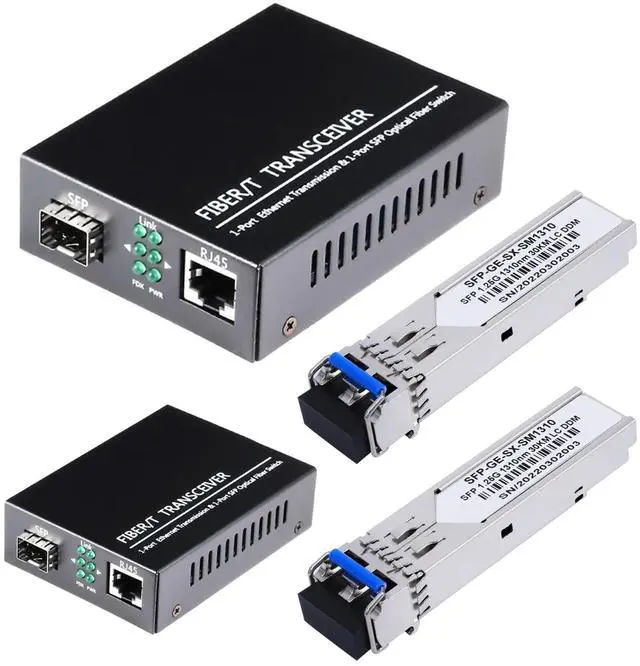

Product Package Includes- 2 Gigabit Ethernet Fiber Media Converters (10/100/1000Mbps RJ45 to SFP)- 2 BiDi SFP LC Single-Mode Transceivers (TX1310nm/RX1550nm, up to 20km)- 2 DC
Power Adapters (Output: 5V DC / 1A;
Input: AC 100240V, UL/EN60950 certified)- 1 Multilingual User Manual & Quick Installation GuideTechnical Specifications- Optical Port Speed: 1.25G bps, compatible with 1000BASE-LX-

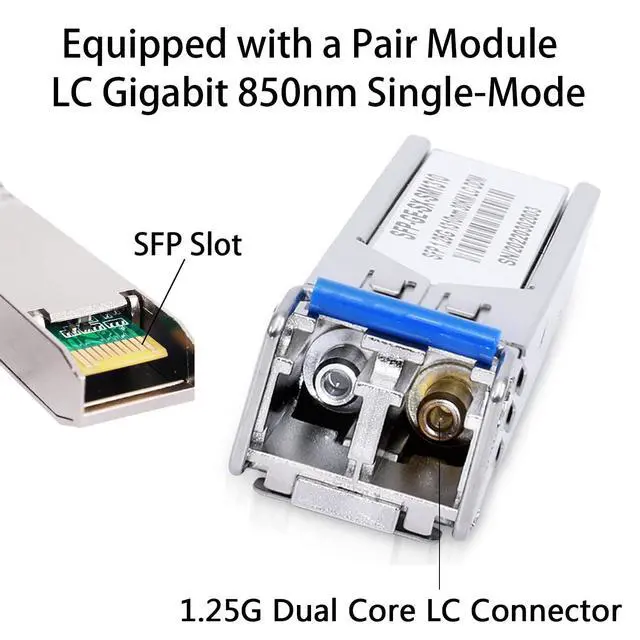

Fiber Type: Single-Mode (9/125m), LC BiDi interface-
Transmission Distance: Up to 20km with included SFP modules-
Copper Port: 10/100/1000Mbps RJ45, auto-negotiation, full/half duplex, MDI/MDIX supported-
Power Consumption: 3W per unit-

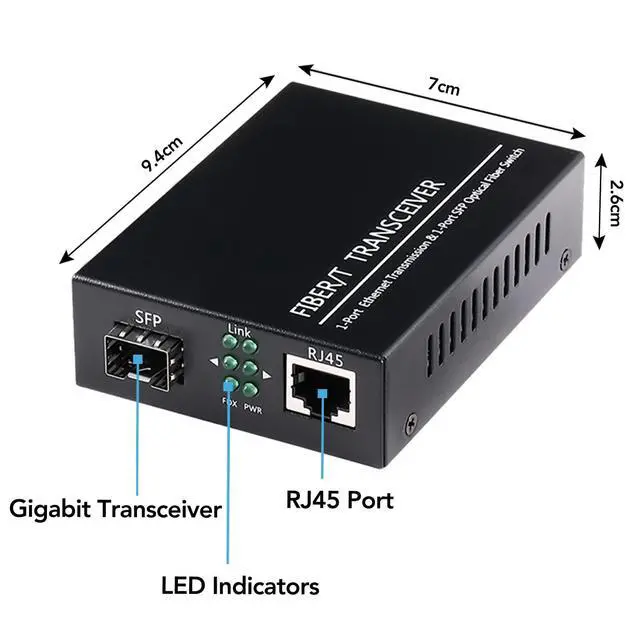

Dimensions: 95 72 27mm (D W H) -
Weight (with adapter): Approx.
0.35 kg- Operating Temperature: 0C ~ 60C (32F ~ 140F)-
Storage Temperature: -20C ~ 70C-
Humidity: 5% ~ 90% RH (non-condensing)Product Features & Benefits- Superior Heat Dissipation: Metal housing with side air-vents ensures low temperature operation and long lifespan.
- Robust Design: Built-in lightning protection, strong anti-interference capability, and stable high-speed data conversion. -
Plug & Play Simplicity: No software or configuration required. Ideal for quick installations in tight spaces.
- Safety & Compliance: Includes UL/EN60950 compliant external power adapters. Designed for durability and safety.
- Premium Chipset: Ensures reliable signal processing, low latency, and consistent gigabit-level performance. Wide Applications- Extend network connections between buildings or across long distances using single-mode fiber. - Ideal for enterprise backbones, data centers, industrial automation, and surveillance systems. - Great for environments sensitive to electromagnetic interference (EMI) like government, hospitals, and research facilities. - Perfect solution for connecting remote workstations, wireless access points, or IP cameras to a fiber backbone.
LED Status Indicators- FP: ON when fiber link is at 1000Mbps; OFF otherwise-
TP: ON when RJ45 port is at 1000Mbps; OFF otherwise-
Link/ACT: Blinks when data is transmitting or receiving (Left: Fiber, Right: RJ45)-
FDX: ON for full-duplex mode, OFF for half-duplex-
PWR: ON when powered; OFF when no power supply
Power Adapters (Output: 5V DC / 1A;
Input: AC 100240V, UL/EN60950 certified)- 1 Multilingual User Manual & Quick Installation GuideTechnical Specifications- Optical Port Speed: 1.25G bps, compatible with 1000BASE-LX-
Fiber Type: Single-Mode (9/125m), LC BiDi interface-
Transmission Distance: Up to 20km with included SFP modules-
Copper Port: 10/100/1000Mbps RJ45, auto-negotiation, full/half duplex, MDI/MDIX supported-
Power Consumption: 3W per unit-
Dimensions: 95 72 27mm (D W H) -
Weight (with adapter): Approx.
0.35 kg- Operating Temperature: 0C ~ 60C (32F ~ 140F)-
Storage Temperature: -20C ~ 70C-
Humidity: 5% ~ 90% RH (non-condensing)Product Features & Benefits- Superior Heat Dissipation: Metal housing with side air-vents ensures low temperature operation and long lifespan.
- Robust Design: Built-in lightning protection, strong anti-interference capability, and stable high-speed data conversion. -
Plug & Play Simplicity: No software or configuration required. Ideal for quick installations in tight spaces.
- Safety & Compliance: Includes UL/EN60950 compliant external power adapters. Designed for durability and safety.
- Premium Chipset: Ensures reliable signal processing, low latency, and consistent gigabit-level performance. Wide Applications- Extend network connections between buildings or across long distances using single-mode fiber. - Ideal for enterprise backbones, data centers, industrial automation, and surveillance systems. - Great for environments sensitive to electromagnetic interference (EMI) like government, hospitals, and research facilities. - Perfect solution for connecting remote workstations, wireless access points, or IP cameras to a fiber backbone.
LED Status Indicators- FP: ON when fiber link is at 1000Mbps; OFF otherwise-
TP: ON when RJ45 port is at 1000Mbps; OFF otherwise-
Link/ACT: Blinks when data is transmitting or receiving (Left: Fiber, Right: RJ45)-
FDX: ON for full-duplex mode, OFF for half-duplex-
PWR: ON when powered; OFF when no power supply
