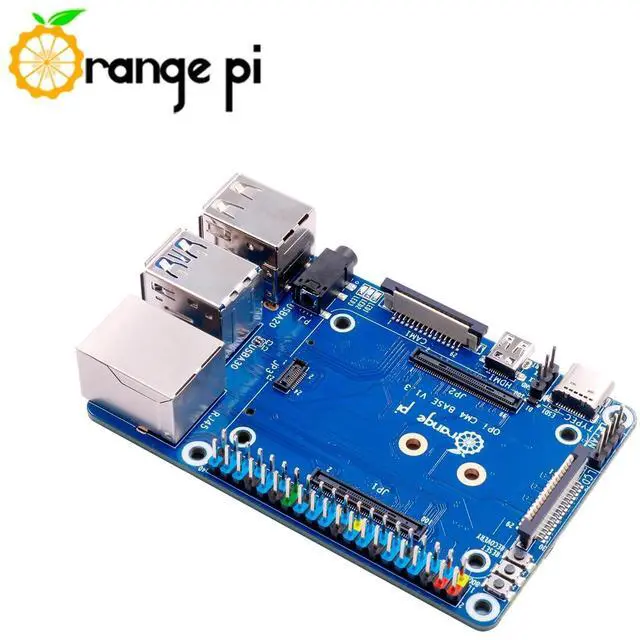

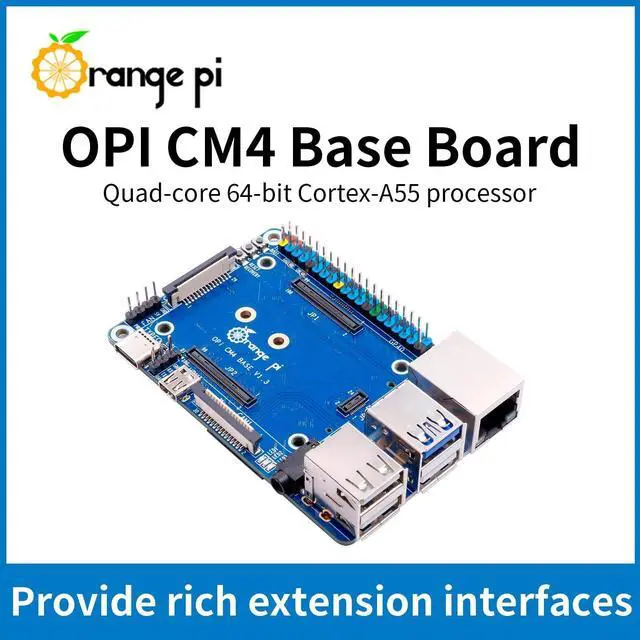

Orange Pi CM4 Base Board Rich Interface for Raspberry Pi CM4, Orange Pi CM4, 40Pin GPIO Interface Standard CM4 Connector Gathering Kinds of Onterfaces
- Orange Pi CM4 base board is an official Orange Pi base board that can be used with the Orange Pi Compute Module 4, with 40Pin GPIO interface and standard CM4 connector.
- Gathering all kinds of popular interfaces such as eDP, MIPI DSI, MIPI CSI, USB3.0, USB2.0, HDMI2.0, M.2 M-KEY, Gigabit Ethernet, etc.
- Orange Pi CM4 base board can be used as a development system for Compute Module 4 and as an embedded board integrated into the end product, supporting access to Orange Pi CM4, Raspberry Pi CM4 core board
- For use with the Orange Pi CM4 and Raspberry Pi Compute Module 4, with an on-board 40Pin GPIO interface and standard CM4 connecto
- Makeing Orange Pi Compute Module 4 Rich interface and making it easy to use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

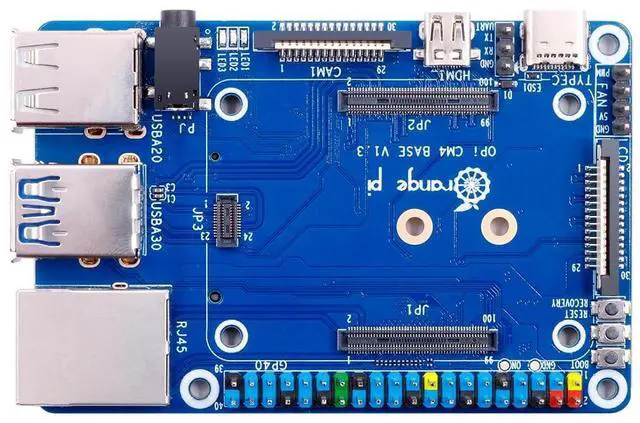

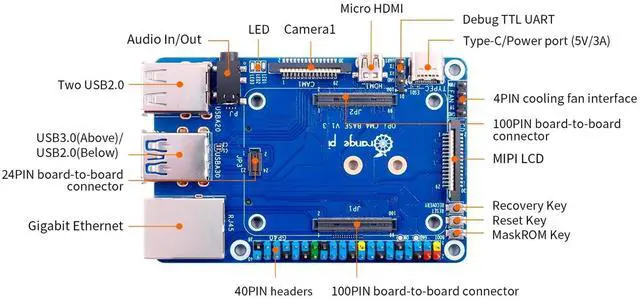

Interface introductionMemory: M.
2 M-KEY slot: SATA3 or PCIe 2.0
NVME SSDsTF card slotEthernet interface: 10/100/1000Mbps Ethernet
RJ45 socketVideo output: 1* HDMI TX 2.0, up to 4K@60fps1*MIPI
DSI 2 laneeDP 1.3C amera: 2*MIPI CSI 2
LaneUSB: 1*USB 2.0 support Device or HOST mode1*USB 3.0 HOST2*USB 2.0 HOST
Audio: 3.5 mm headphone jack audio in/outButton: 1*MaskROM key, 1*RECOVERY key, 1*RESET
keyFAN: 4Pin 2.54 mm size 5V fan connector40Pin: 40Pin functional expansion interface, interface voltage 1.8V / 3.3V optional, supports
the following interface types: GPIO, UART, I2C, SPI, PWM
Power source: Type-C 5V3ASupported
OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB dimension: 85x56mm
2 M-KEY slot: SATA3 or PCIe 2.0
NVME SSDsTF card slotEthernet interface: 10/100/1000Mbps Ethernet
RJ45 socketVideo output: 1* HDMI TX 2.0, up to 4K@60fps1*MIPI
DSI 2 laneeDP 1.3C amera: 2*MIPI CSI 2
LaneUSB: 1*USB 2.0 support Device or HOST mode1*USB 3.0 HOST2*USB 2.0 HOST
Audio: 3.5 mm headphone jack audio in/outButton: 1*MaskROM key, 1*RECOVERY key, 1*RESET
keyFAN: 4Pin 2.54 mm size 5V fan connector40Pin: 40Pin functional expansion interface, interface voltage 1.8V / 3.3V optional, supports
the following interface types: GPIO, UART, I2C, SPI, PWM
Power source: Type-C 5V3ASupported
OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB dimension: 85x56mm
