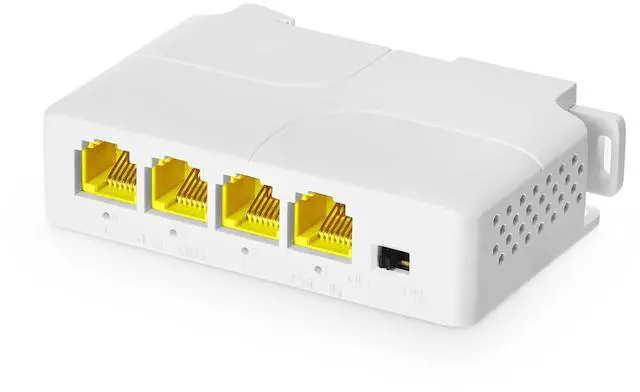

Gigabit PoE Passthrough Switch, 1 PoE in 3 PoE Out Extender, IEEE802.3af/at PoE Powered, 10/100/1000Mbps Ethernet, din-Rail & Wall Mount
- Gigabit PoE PassthroughInclude 1 PoE In 3 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required

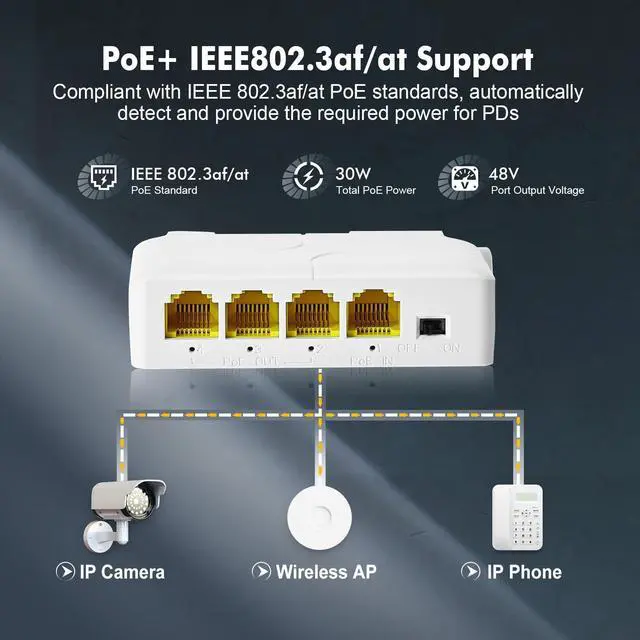

- IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-)
- Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*

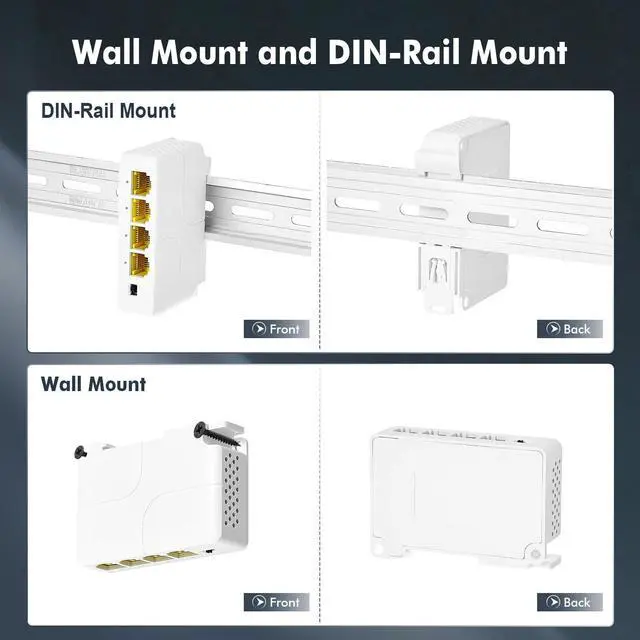

- Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions

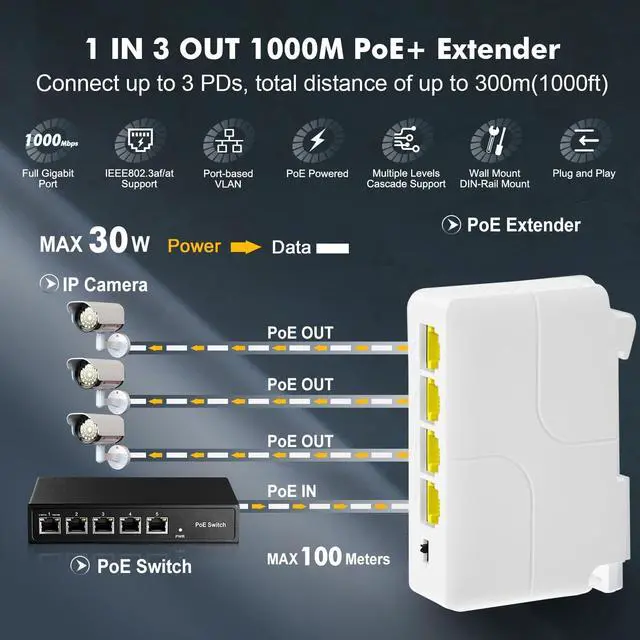

- Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Gigabit PoE PassthroughInclude 1 PoE In 3 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required ^^ IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);
Output: 1/2 (+), 3/6 (-) ^^ Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE* ^^ Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions ^^ Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);
Output: 1/2 (+), 3/6 (-) ^^ Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE* ^^ Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions ^^ Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
